Product Description
Upgrade your trailer to semi‑truck strength with our Heavy‑Duty Super Single 10K Tandem Axle Kit. Designed for gooseneck, dump and hotshot trailers, this kit combines two 10,000‑lb electric brake axles with a 44,000‑lb‑rated HDSS Hutch suspension, delivering unmatched durability and load capacity. The result? A rock‑solid, low‑maintenance ride that tackles heavy loads with ease
Kit Includes:
2) 10,000 lb electric brake Trailer Axles 8x6.5”
1) Complete Tandem HDS Hutch Suspension Kit
4) 17.5” Trailer tires on Super Single Solid Trailer Wheels
Everything here to upgrade your trailer or build a new one to haul super heavy loads!
Axle Specifications:
-
Capacity: 10,000 lbs
-
Lug Pattern: 8x6.5"
-
Tube Diameter: 5 Round 3/8" Thick (extra heavy tube)
-
inner bearing: 387A (same as Dexter)
-
Outer Bearing: 25580 (same as Dexter)
-
Oil/Grease Seal: 10-51(same as Dexter)
-
Brakes: Electric Brake Drum (7 hole flange) 12-1/4" x 3-3/8" (same as Dexter)
-
5/8" studs
-
4.75" Hub
-
comes standard with swivel flange nuts
-
Uses oil or grease lubrication
-
Upgraded aluminum oil caps
-
Pre-wired
-
Comes standard with #3-403 HDS Hutch Spring Pads Seats either pre welded on or loose so you can weld them where needed (depends on option you choose)
-
We can also weld spring pads on axle where you want for you for an additional charge (call if you need us to weld them certain in place for you 844-898-8687)
Tire Wheel Options:
-
215/75R17.5 16-Ply Load Range H (4805 lbs capacity per tire)
-
235/75R17.5 18-Ply Load Range J (6005 lbs capacity per tire)
Tires come pre mounted on your Super Single Wheel Color of choice
U bolts & Spring Specs:
-
Part# 72-48 HDSS Hutch Slipper Spring, 11,200 lb, 3 leaf, 42" Long, 3 leaf, 3" wide
-
Part# UBHDS-1175: 3/4" Dia x 12" Long U bolts w/ Nuts for Hutch Suspension
HDSS Hutch Suspension Info:
Includes:
-
30-75-5: Rear Hanger For HDSS Hutch Suspension (Qty: 2)
-
12-068: Tie Plate for HDSS Hutch Suspension (Qty: 4)
-
62-11-1: Track Rod Fixed 19.25" For HDSS Hutch Suspension (Qty: 2)
-
29-49-1: Center Hanger & Equalizer Kit for HDSS Hutch Suspension (Qty: 2)
-
EQHDS: Hutch Equalizer (Qty: 2)
-
62-1-1: Adjustable Track Rod For HDSS Hutch Suspension (Qty: 2)
-
28-82-5: Front Hanger for HDSS Hutch Suspension (Qty: 2)
-
007-169-00: 1"-8 x 5-1/2" Long Equalizer Bolt for 2-1/2" Wide Slipper Springs (Qty: 8)
-
006-112-00: 1"-8 Lock Nut For Equalizer Bolt 2-1/2" Wide Slipper Springs (Qty: 8)
-
7-294: Keeper Bolt 5/8"-18 x 4.5" Long (Qty: 6)
-
6-126: 5/8" Lock Nut for 5/8" Keeper Bolt (Qty: 6)
-
33-91: Keeper Bolt Sleeve Bushing for 5/8" Bolt / 3/4" tube OD x 4.5" Long (Qty: 6)
-
007-170-00: 1-1/8"-7 x 6" Long Equalizer Bolt for 3" Wide Leaf Springs (Qty: 2)
-
006-072-00: 1-1/8"-7 Locknut for Equalizer for 3" Wide Springs (Qty: 2)
-
118W: 1-1/8" Washer For HDSS Hutch Suspension (Qty: 2)
-
UBHDS-1175: 7/8" U bolt w/ Nuts for Hutch Suspension (Qty: 8)
-
72-48: HDSS Hutch Slipper Spring, 11,200 lb, 3 leaf, 42" Long, 3 leaf, 3" wide (Qty: 4)

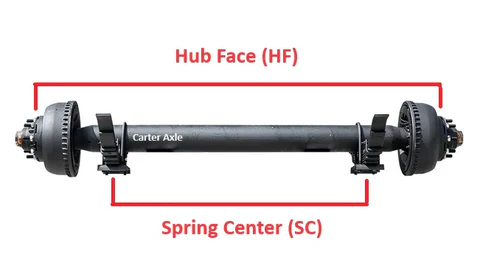

How To Measure Your Axle:
