Why Hutch HDSS Suspension Is Worth the Upgrade for 10K–16K Axles

Why Hutch HDSS Suspension Is Worth the Upgrade for 10K–16K Axles

Posted by Kaleb Carter on Oct 29th 2025

Introduction: Hauling Heavy Loads Shouldn’t Be a Pain

When you’re hauling equipment or cargo that weighs 10,000 pounds or more, your trailer’s suspension isn’t just along for the ride—it’s doing the hard work. Leaf‑spring setups can handle the weight, but they’re built to a cost and need regular attention. Hutch HDSS is different. It takes the same proven leaf‑spring concept and upsizes every component. The result is a heavy‑duty suspension that lets you haul more, keeps working longer and won’t have you crawling under the trailer for constant repairs.

Why Capacity and Reliability Matter

The axles under a 10K, 12K, 15K or 16K trailer can support a lot of weight, but the suspension needs to keep up. If springs sag or hardware loosens, the trailer can lean, wear out tires and even break under load. Hutch HDSS is engineered for higher gross weight ratings—our 10K tandem trailer kit features a Hutch suspension rated for 44,000 pounds. That extra capacity means the springs, hangers and bushings aren’t operating at their limits, so you get more margin for safety and less stress on the components.

Bigger Components, Built to Last

Instead of light‑gauge steel, Hutch HDSS uses thicker hangers, rockers and equalizers. The equalizer bushings are made from the same tough rubber as standard equalizers, but they’re larger, so they soak up more vibration. The HDSS springs themselves are different too: rather than having one flat end and one eye with a bushing like a typical leaf spring, each Hutch spring has two curved ends that slide in the hangers. That means there’s no spring bushing to wear out—one less part to replace. All of the hardware is familiar—the system still uses locknuts and U‑bolts—but every component is beefier. The result is a suspension that can take bigger hits without bending or wearing out. That’s why commercial haulers choose HDSS for heavy equipment trailers and hot‑shot work.

To visualize the difference, the image below shows a Hutch slipper spring with two curved ends (top) and a standard slipper spring with an eye bushing and a flat slipper end (bottom). Notice how the Hutch spring has no rubber eye bushing to wear out.

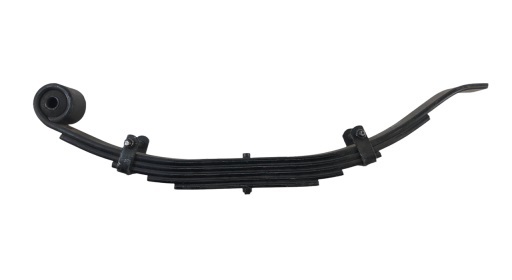

Standard leaf spring

72-80 10k leaf spirng

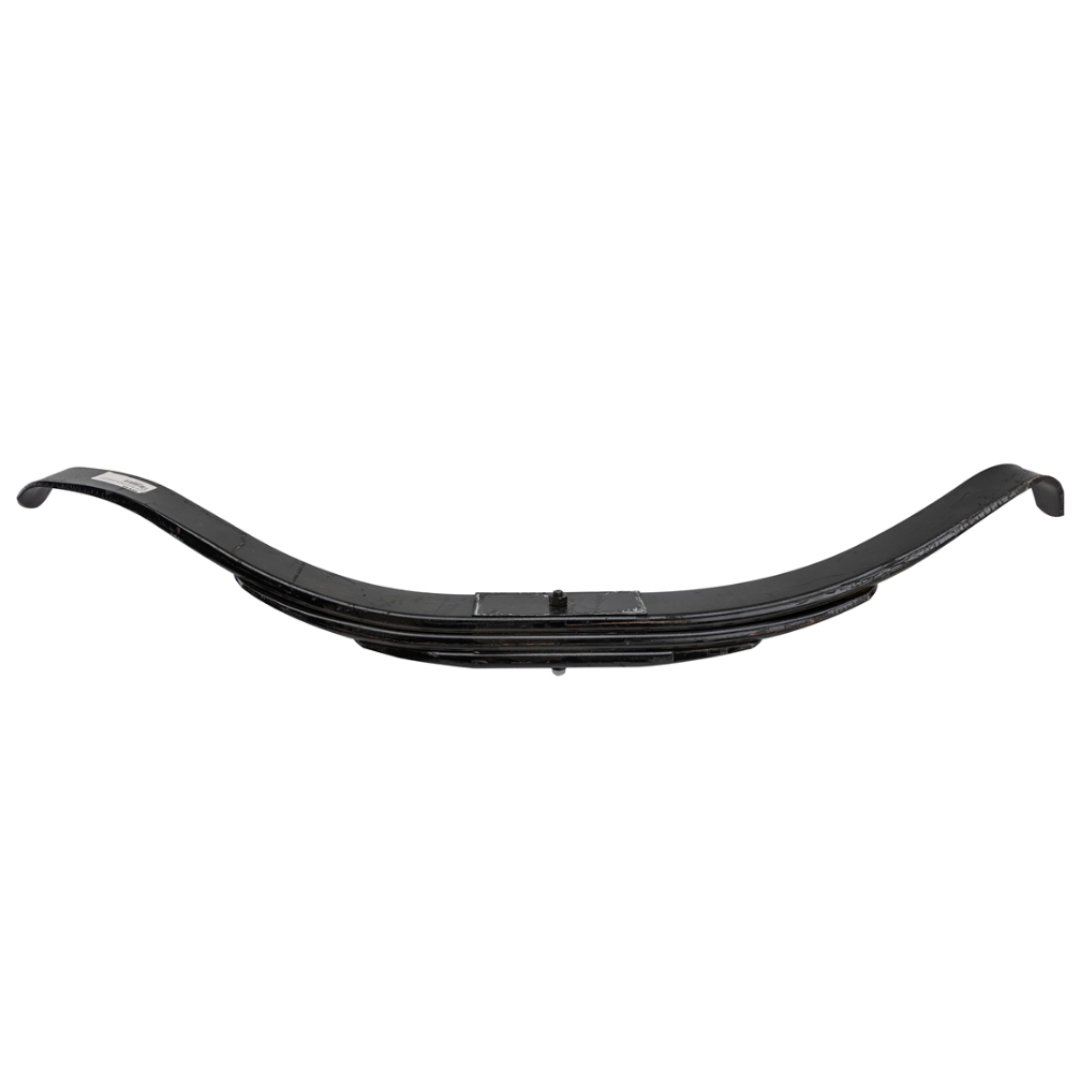

hutch leaf spring

72-48 hutch leaf spring

Longer Springs Mean a Wider Spread

Another reason Hutch HDSS rides so well is that its springs are longer than those on a typical leaf‑spring suspension. The 9700 Series offers axle spacings from 42 inches to over 121 inches, giving you a wider spread between axles. A wider spread improves stability—think of it like a long‑wheelbase truck versus a short one. When you’re carrying a heavy load, that extra distance helps distribute the weight and keeps the trailer from swaying.

Adjustable Arms Keep You On Track

If a trailer isn’t aligned correctly it can “dog‑tail” down the road—where it pulls to one side or drifts. Hutch HDSS addresses this with adjustable torque arms.  Wrapped torque arm eye ends use a single bolt and a high clamp load to prevent separation under extreme conditions. If your trailer starts to pull crooked, you can adjust these arms to bring the axles back into line without major disassembly. It’s a simple way to keep the suspension tracking true.

Low Maintenance, Less Downtime

Any suspension needs occasional checks, but HDSS reduces the hassle. The heavy‑duty parts wear slower, and the larger bushings last longer. Because the components aren’t at their limit, you won’t be replacing springs or hangers as often. That saves you time in the shop and puts more miles between maintenance stops.

A Familiar Design With One Small Change

You won’t have to reinvent your trailer to upgrade to HDSS. It uses the same basic leaf‑spring layout you already know. The only difference is the spring pad welded to the axle: Hutch spring pads have a larger center hole to fit the bigger spring bolt used in their heavier springs. Otherwise the pads and axle tube look the same, and you can mount the suspension overslung or underslung to set your deck height.

Haul More, Worry Less

With a stronger suspension under your trailer, you can carry heavier loads without fear of bending springs or snapping hangers. The HDSS system is rated well beyond the capacity of typical 10K–16K axles, so you’re operating with a comfortable safety margin. That extra strength translates into reliability: fewer breakdowns, more uptime and peace of mind.

Ready to Upgrade? We’ve Got You Covered

At Trailer Parts Unlimited we stock everything you need to move up to Hutch HDSS:

Have questions? Call or visit us—we’ll make sure you get the right suspension to haul more and worry less.
