Product Description
This 10,000‑lb electric brake axle is designed for trailers equipped with HDSS Hutch suspension systems, offering heavy‑duty reliability and compatibility with major brands like Dexter, Carter, Rockwell American and Lippert.
Kit Includes:
1) 10k Carter Electric Brake Trailer Axle 8x6.5"
2) Part# 72-48 Hutch Leaf Springs
4) 3/4" dia x 12" Long U bolts w/ Nuts for Hutch Suspension
Axle Specifications:
- Capacity: 10,000 lbs
- Lug Pattern: 8x6.5"
- Tube Diameter: 5 Round 3/8" Thick
- inner bearing: 387A
- Outer Bearing: 25580
- Oil/Grease Seal: 10-51
- Brakes: Electric Brake Drum (7 hole flange) 12-1/4" x 3-3/8" (same as Dexter)
- 5/8" studs
- 4.75" Hub
- Upgraded forged Aluminum Oil Hub Caps
- comes standard with Swivel Flange Nuts.
- Uses oil or grease lubrication
- Wheels (not included) 16" Dual, 17.5" dual or single heels
- Pre-wired
- Powder Coated

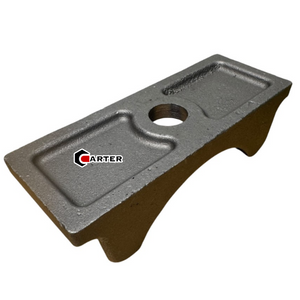

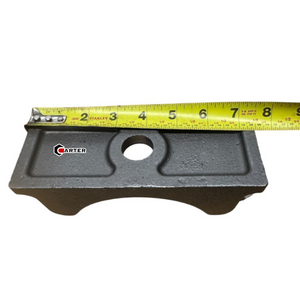

- Comes standard with #3-403 HDS Hutch Spring Pads Seats either pre welded on or loose so you can weld them where needed (depends on option you choose)
- We can also weld spring pads on axle where you want for you for an additional charge (call if you need us to weld them certain in place for you 844-898-8687)
U bolts & Spring Specs:
Part# 72-48 HDSS Hutch Slipper Spring, 11,200 lb, 3 leaf, 42" Long, 3 leaf, 3" wide
Part# UBHDS-1175: 3/4" Dia x 12" Long U bolts w/ Nuts for Hutch Suspension
Replacement Parts Available: Easily find replacement parts anywhere in the country since all components, including bearing kits, brake systems, hub caps, studs, hubs & drums, brake assemblies are 100% fully interchangeable with Dexter Axle products.
Replace your Dexter, lippert, Rockwell, Alko or any other axle with the Carter Axle Today and ride down the road with confidence.
How To Measure Your Axle:
Stop paying more for over priced "name brand" trailer axles and parts. Try the Carter Trailer Axles & parts and I guarentee you will be satisfied with the quaility of the products.
Check out our video comparing the dexter axles to the Carter Trailer Axles!
