Product Description
This complete Heavy duty 10k Tandem Axle Trailer Kit includes everything you need to install axles on a trailer along with your choice of 16” trailer tire wheel combos.
This kit is the heavy duty axle kit that has the upgraded hutch suspension on this. The HDS Hutch suspension is rated at 44,000 lbs itself, so you wont have to worry about busting springs or replacing suspension parts on your trailer for a long time!
Kit Includes:
2) 10,000 lb electric brake Trailer Axles 8x6.5”
Complete Tandem HDS Hutch Suspension Kit
8) 16” Trailer tire wheel combos in your choice of size and color.
Everything here to upgrade your trailer or build a new one to haul super heavy loads!
Axle Specifications:
-
Capacity: 10,000 lbs
-
Lug Pattern: 8x6.5"
-
Tube Diameter: 5 Round 3/8" Thick (extra heavy tube)
-
inner bearing: 387A (same as Dexter)
-
Outer Bearing: 25580 (same as Dexter)
-
Oil/Grease Seal: 10-51(same as Dexter)
-
Brakes: Electric Brake Drum (7 hole flange) 12-1/4" x 3-3/8" (same as Dexter)
-
5/8" studs
-
4.75" Hub
-
comes standard with swivel flange nuts
-
Uses oil or grease lubrication
-
Upgraded aluminum oil caps
-
Pre-wired
-
Comes standard with #3-403 HDS Hutch Spring Pads Seats either pre welded on or loose so you can weld them where needed (depends on option you choose)
-
We can also weld spring pads on axle where you want for you for an additional charge (call if you need us to weld them certain in place for you 844-898-8687)
Tire Wheel Options:
-
ST235/80R16 10-Ply LRE Trailer Tire
-
ST235/80R16 14-Ply LRG Trailer Tire
-
ST235/85R16 14-Ply LRG Trailer Tire
-
ST235/80R16 16-Ply LRH Trailer Tire
-
ST235/85R16 16-Ply LRH Trailer Tire
Tires come pre mounted on your Dual Wheel Color of choice
U bolts & Spring Specs:
-
Part# 72-48 HDSS Hutch Slipper Spring, 11,200 lb, 3 leaf, 42" Long, 3 leaf, 3" wide
-
Part# UBHDS-1175: 3/4" Dia x 12" Long U bolts w/ Nuts for Hutch Suspension

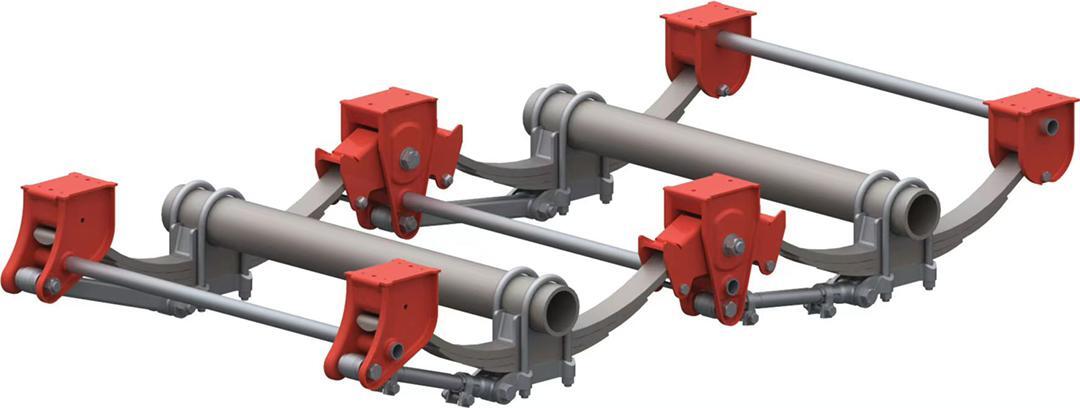

HDSS Hutch Suspension Info:
Includes:
-
30-75-5: Rear Hanger For HDSS Hutch Suspension (Qty: 2)
-
12-068: Tie Plate for HDSS Hutch Suspension (Qty: 4)
-
62-11-1: Track Rod Fixed 19.25" For HDSS Hutch Suspension (Qty: 2)
-
29-49-1: Center Hanger & Equalizer Kit for HDSS Hutch Suspension (Qty: 2)
-
EQHDS: Hutch Equalizer (Qty: 2)
-
62-1-1: Adjustable Track Rod For HDSS Hutch Suspension (Qty: 2)
-
28-82-5: Front Hanger for HDSS Hutch Suspension (Qty: 2)
-
007-169-00: 1"-8 x 5-1/2" Long Equalizer Bolt for 2-1/2" Wide Slipper Springs (Qty: 8)
-
006-112-00: 1"-8 Lock Nut For Equalizer Bolt 2-1/2" Wide Slipper Springs (Qty: 8)
-
7-294: Keeper Bolt 5/8"-18 x 4.5" Long (Qty: 6)
-
6-126: 5/8" Lock Nut for 5/8" Keeper Bolt (Qty: 6)
-
33-91: Keeper Bolt Sleeve Bushing for 5/8" Bolt / 3/4" tube OD x 4.5" Long (Qty: 6)
-
007-170-00: 1-1/8"-7 x 6" Long Equalizer Bolt for 3" Wide Leaf Springs (Qty: 2)
-
006-072-00: 1-1/8"-7 Locknut for Equalizer for 3" Wide Springs (Qty: 2)
-
118W: 1-1/8" Washer For HDSS Hutch Suspension (Qty: 2)
-
UBHDS-1175: 7/8" U bolt w/ Nuts for Hutch Suspension (Qty: 8)
-
72-48: HDSS Hutch Slipper Spring, 11,200 lb, 3 leaf, 42" Long, 3 leaf, 3" wide (Qty: 4)
How To Measure Your Axle:
Check out our video comparing the dexter axles to the Carter Trailer Axles!
