  • Heavy-Duty Electric Brake Trailer Axle Ensure peak performance with the 12K Carter Trailer Axle. With a 12,000 lb capacity, electric brakes, and 8 lugs, this axle is Dexter compatible, making it ideal for trailers that require high-strength and reliable performance under heavy loads.
  • Premium 12K Electric Brake Trailer Axle Enhance your trailer’s capability with the 12K Carter Trailer Axle, featuring a 12,000 lb capacity and electric brakes. This 8 lug axle is Dexter compatible, ensuring long-lasting durability and top performance for demanding trailer applications.
  • High-Capacity 12K Trailer Axle Invest in the 12K Carter Trailer Axle for exceptional load-bearing capacity and performance. Featuring a 12,000 lb capacity, electric brakes, and 8 lugs, this Dexter compatible axle ensures your trailer can handle heavy-duty tasks with ease
  • tandem hanger kit diagram for 12k trailer axle kit
  • 12k leaf springs 3" wide 30-1/2" long
  • Top-Quality 12,000 lb Trailer Axle Upgrade your trailer with the 12K Carter Trailer Axle, offering a 12,000 lb capacity and electric brakes. This 8 lug axle is compatible with Dexter, providing excellent durability and reliable performance for all your heavy-duty hauling needs.
  • Superior 12K Trailer Axle Equip your trailer with the 12K Carter Trailer Axle, designed for heavy-duty performance. With a 12,000 lb capacity, electric brakes, and 8 lugs, this axle is Dexter compatible, ensuring your trailer operates efficiently and reliably
  • 12k Carter Trailer Axle | 12,000 lb Electric Brake, 8 Lug - Dexter Compatible
  • 12,000 lbs trailer axle with springs and u bolts
  • 12k carter trailer axle kit - heavy duty single axle kit

    • 12k Carter Trailer Axle - 12,000 lb Electric Brake 8 Lug Axle

    Carter

    $1,300.00 - $1,650.00
    SKU:
    12K-KIT01
    Shipping:
    Calculated at Checkout
    Bulk Pricing:
    Buy in bulk and save

    Bulk discount rates

    Below are the available bulk discount rates for each individual item when you purchase a certain amount

    • Buy 4 - 8 and get 5% off
    • Buy 9 - 12 and get 10% off
    • Buy 13 - 16 and get 15% off
    • Buy 17 - 22 and get 20% off
    • Buy 23 - 30 and get 25% off
    Shipping:
    LTL Freight to commercial address or Freight Hub
    Adding to cart… category.add_cart_announcement

    Product Description

    Introducing the Carter 12,000 lbs Trailer Axle - Unleash Unrivaled Power!

    Elevate your trailer's capabilities with the Carter 12K Trailer Axle, a robust solution engineered for heavy-duty performance.

    These axles are designed to provide exceptional durability and are fully interchangeable with all Dexter trailer axles and parts, ensuring you have the flexibility you need.

    Quality Assurance:

    Say goodbye to overpriced "name brand" trailer axles and parts. Try Carter Trailer Axles and experience the satisfaction of top-quality products. Don't just take our word for it; check out our video comparing Dexter axles to Carter Trailer Axles!




    Axle Specifications:

    • Capacity: 12,000 lbs
    • Lug Pattern: 8x6.5"
    • Tube Diameter: 5 inches
    • Inner Bearing: 3984
    • Outer Bearing: 28682
    • Oil/Grease Seal: 10-56
    • Brakes: Electric Brake Drum (7 Hole Flange) 12-1/4" X 5"
    • 5/8" Studs
    • Comes Standard with Wheel Tension Ring

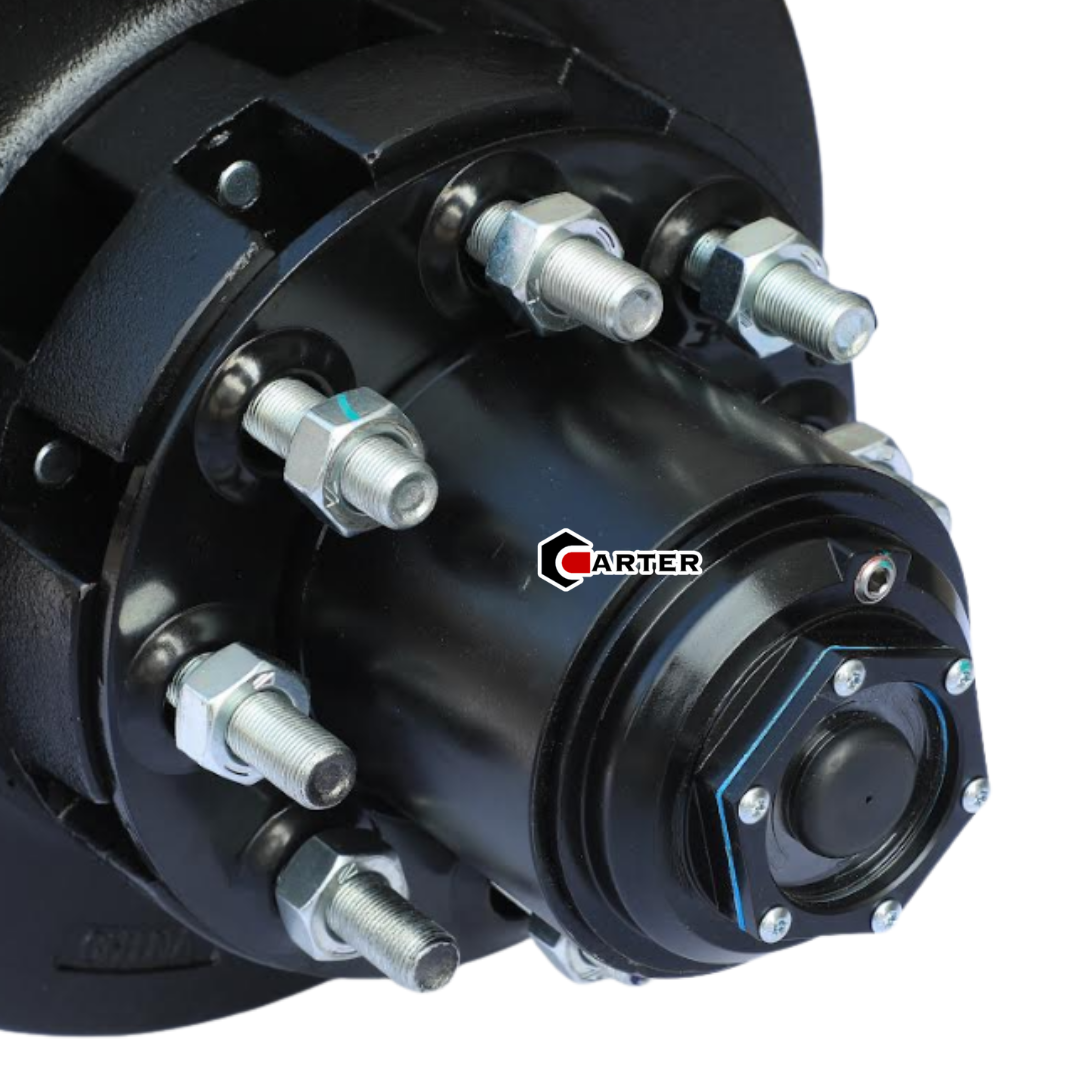

    • 4.75" Hub
    • Uses oil or grease lubrication
    • Wheels (not included) 16" Dual, 17.5" Dual, or Single Wheel
    • Pre-Wired
    • Spring pads come pre-welded on axle
    • Adjustable spring pad for easy trailer alignment
    • Compatible with a Variety of Tire and Wheel Configurations: Choose from 16" Dual Wheels, 17.5" Dual Wheels, or 17.5" Super Single Wheels

    Features:

    • All Carter Axles Are 100% fully interchangeable with Dexter Axles
    • Carter Axles come standard with adjustable spring pads to easily adjust alignment on trailer
    • Fully welded brake flanges
    • 3 Year Warranty
    • Complete Axle Assembly: Each axle arrives fully assembled, streamlining your installation process.
    • Suspension Optional: Buy this trailer axle with springs, u bolt kits and hanger kit or buy the axle by itsself.
    • Uses 3" Wide 30-1/2" 6 Leaf Slipper Springs (standard for dexter) (Part # 74-44)

    Options:

    • Electric Brake Axle only
    • Add Springs and U bolts
    • Buy the whole kit to redo the whole underside of your trailer.

    Replacement Parts Available:

    Easily find replacement parts anywhere in the country since all components, including bearing kits, brake systems, hub caps, studs, hubs & drums, and brake assemblies are 100% fully interchangeable with Dexter Axle products.

    Replace your Dexter, lippert, Rockwell, Alko or any other axle with the Carter Axle Today and ride down the road with confidence.

    How To Measure Your Axle:

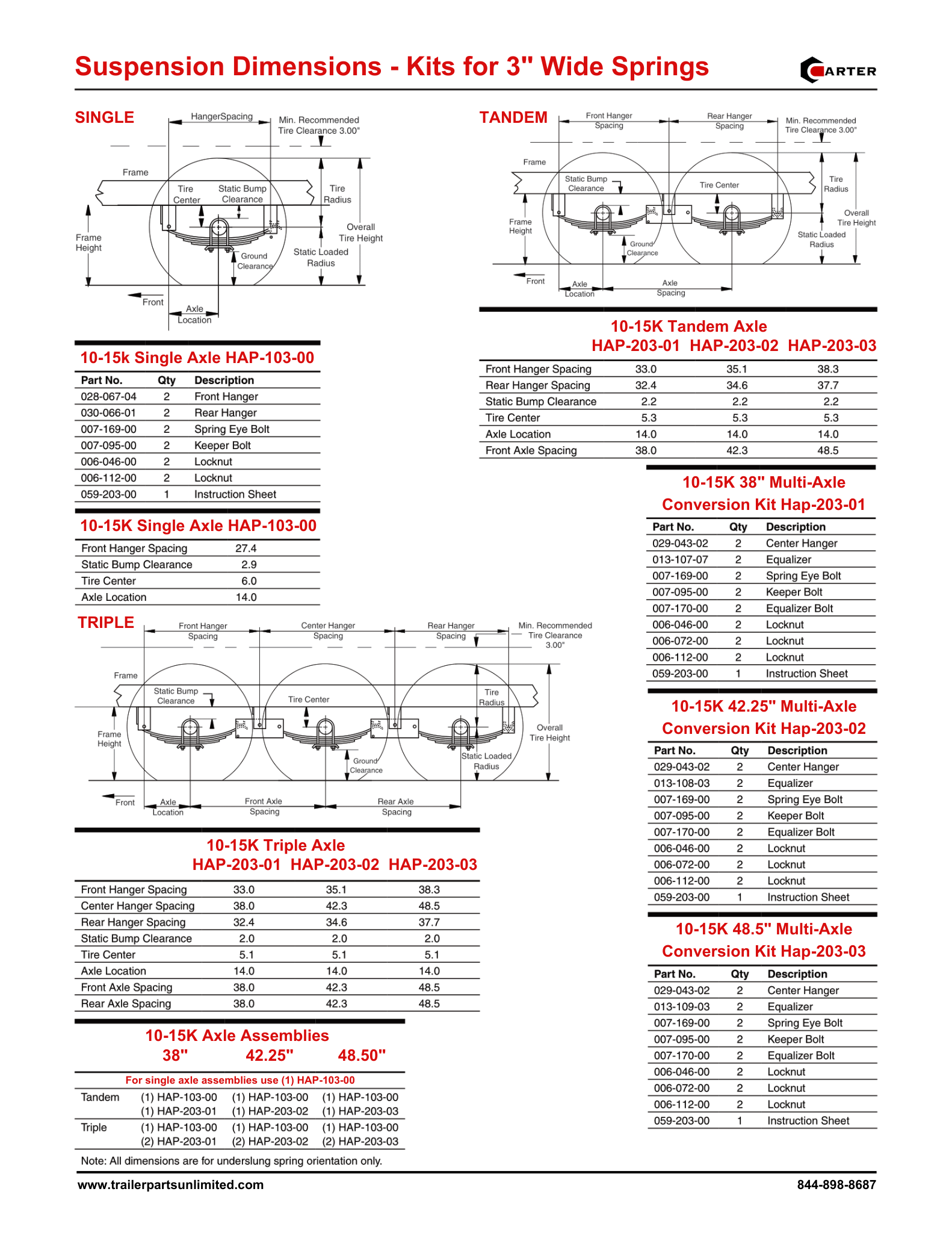

    Hanger Kit Diagram Instructions:
