Product Description

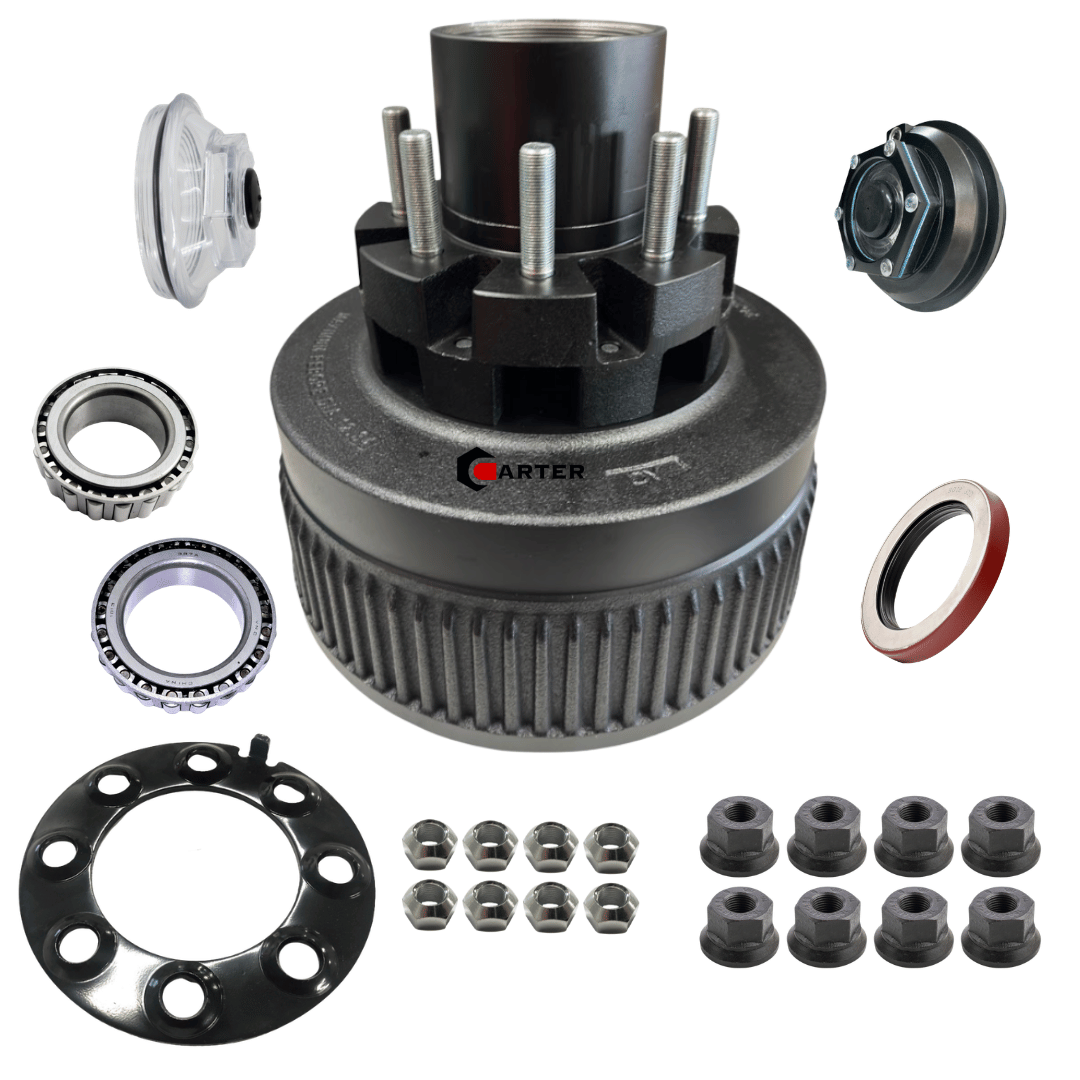

12K Trailer Hub & Drum Kit for dexter axles.
Replaces Dexter 9-28 Drum 8-214 Hub
This heavy duty Hub Drum is a direct replacement for Dexter 12,000 lb Hub Drums (#008-214-09) The drum uses a brake assembly that measures 12 1/4" X 5".
Specs:
Bolt Pattern: 8x6.5"
Stud Size: 5/8"
use with 12k Dexter Axles, LCI, Carter
Capacity per Hub/drum: 6,000 lbs
Items Included:
1) 12K Hub and drum for Dexter, Carter or Lippert Axles with races pressed in hub
-
1) Inner Race: 3920 (already pressed in hub)
-
1) Outer Race: 28622 (Already pressed in hub)
1) 3984 inner bearing
1) 28682 outer bearing
1) 10-56 oil seal OB3145059
With options of:
8) 5/8" cone lug nuts with Tension Ring
Or
8) ⅝” Swivel Flange Nuts
And
1) 21-36 Plastic Screw On Oil/Grease Cap
Or
1) KC21-305 Upgraded Screw On Aluminum Oil/Grease Cap
