Product Description
Kit includes:
-
(1) 3.5k Electric Brake Trailer Axle 5 lug
-
(2) 15” Trailer Tire Wheel combos
-
(2) 4 leaf double eye springs
-
(1) U bolt kit
-
(1) Optional single axle hanger kit
Everything you need to install axles to trailer and get you on the road
Kit Features
-
Capacity: 3500 lb
-
Axle Brand: Carter
-
Stud Size: 1/2 inch
-

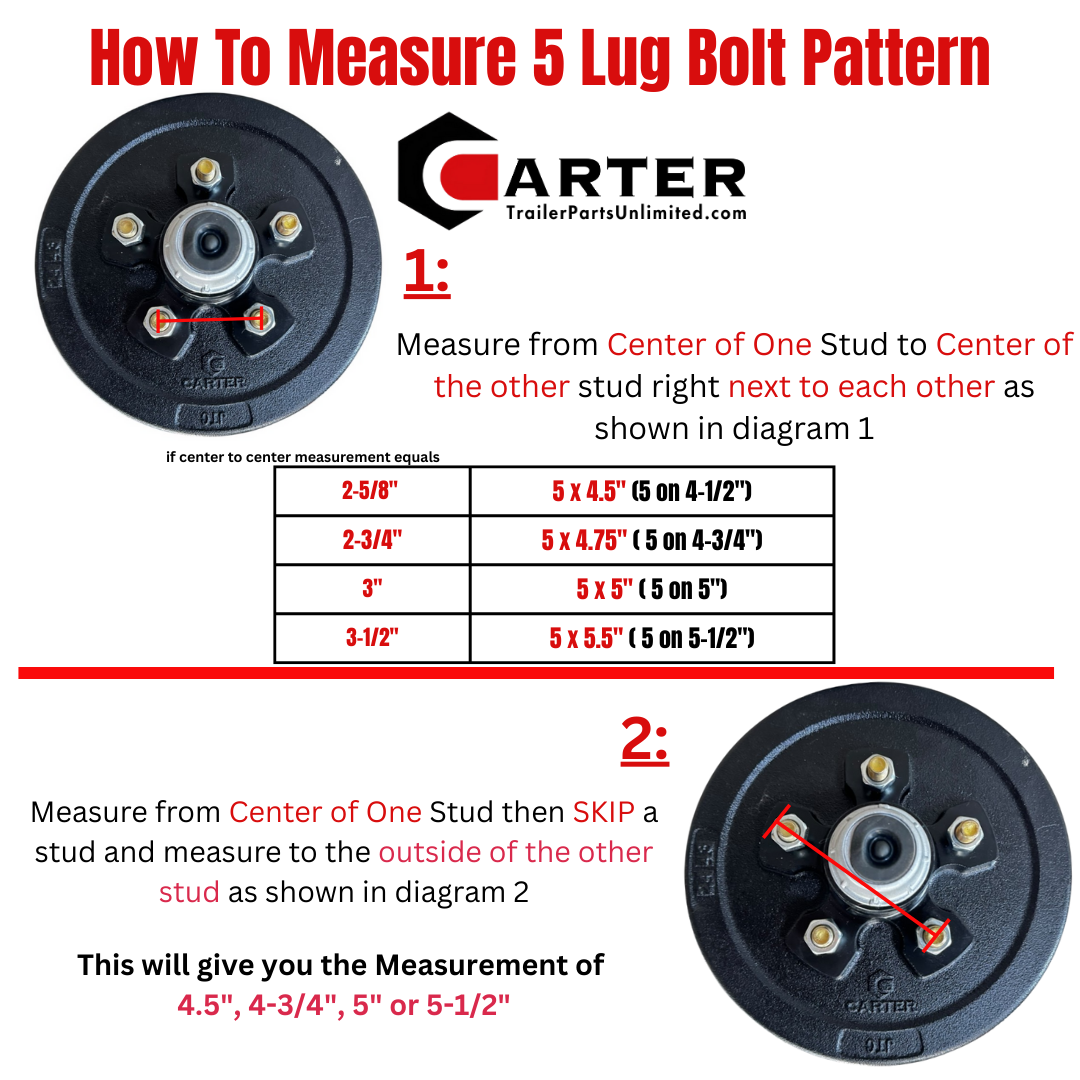

Hubs: 5 lug hub drums – available in 5 on 4.5 or 5 on 5 bolt pattern
-
Brakes: 10” X 2-¼” Auto Adjusting
-
Spindles: #84, 1-1/16 inch diameter
-
Axle Tube: 2-3/8 inch outside diameter, 0.19 inch wall thickness
-
Suspension Type: Leaf spring
-
Spring Pads: Welded or loose (custom placement available)
-
Brake Flange: 4-bolt welded to axle
-
Fully pre-greased and ready to install
-
Powder Coated
-
Pre Wired for convenience (to streamline install)
-
EZ Fast Lube Grease Zerks in spindles
-
3-Year Limited Warranty
Bearing and Seal Specs
-
Inner Bearing: L68149
-
Outer Bearing: L44649
-
Inner Race: L68111
-
Outer Race: L44610
-
Seal: 10-19 (1.719 in ID, 2.565 in OD)
-
Grease Cap: 1.98 in OD aluminum cap with rubber plug
Trailer Tire Options
-
ST205/75R15 8-Ply Radial Trailer Tires
-
ST225/75R15 10-Ply Radial Trailer Tires
-
ST225/75R15 14-Ply All Steel Trailer Tires
Wheel Style Options
-
Silver Mod Wheels
-
Black Mod Wheels
Note: Tires and wheels come pre mounted ready to install on trailer
2-3/8 Inch U-Bolt Kit
This kit includes
4 U-bolts, 2 tie plates, and 8 nuts—everything needed to secure one axle to your trailer springs.
Leaf Spring Specs:
Includes (2)
4 leaf double eye springs 25-¼” from center eye to eye
Hanger kit Specs:
Includes
(2) 1.44" Tall front hangers,
(2) 1.5" Tall Rear Hangers with bushing,
(4) 2.62" Shackle Links
(6) Shackle Bolts
(6) Lock Nuts
Installation Notes
Hub face and spring center measurements can be selected to fit your trailer
