Product Description

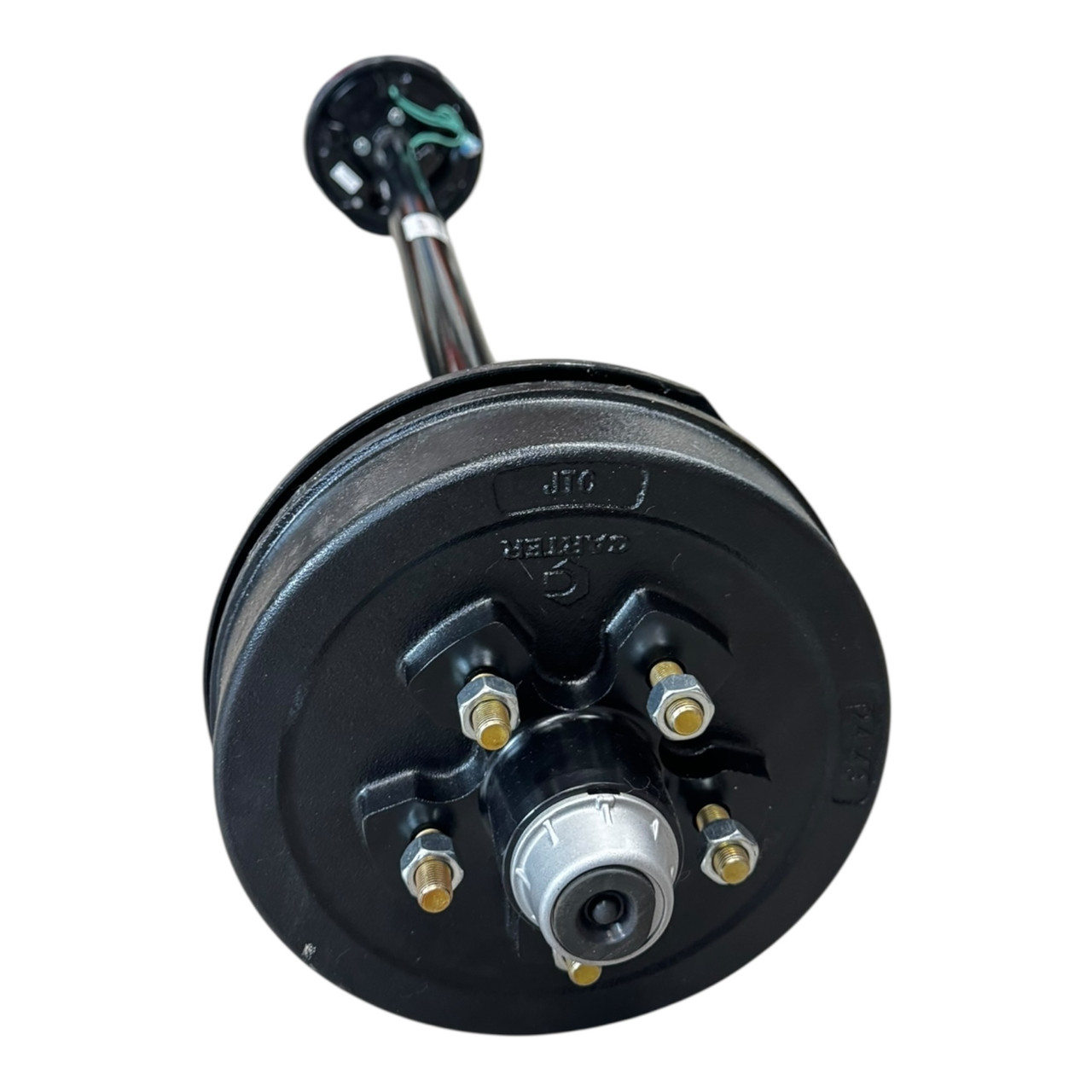

This 3500 lb tandem axle kit is ready to install and built for light-duty trailers. Featuring a Carter brand axle, this kit comes fully assembled with EZ Fast Lube spindles, pre-greased 5 lug hub drums, auto Adjusting Electric Brakes, and upgraded aluminum grease caps that won’t deform. Ideal for utility trailers, small equipment haulers, and DIY trailer builds.

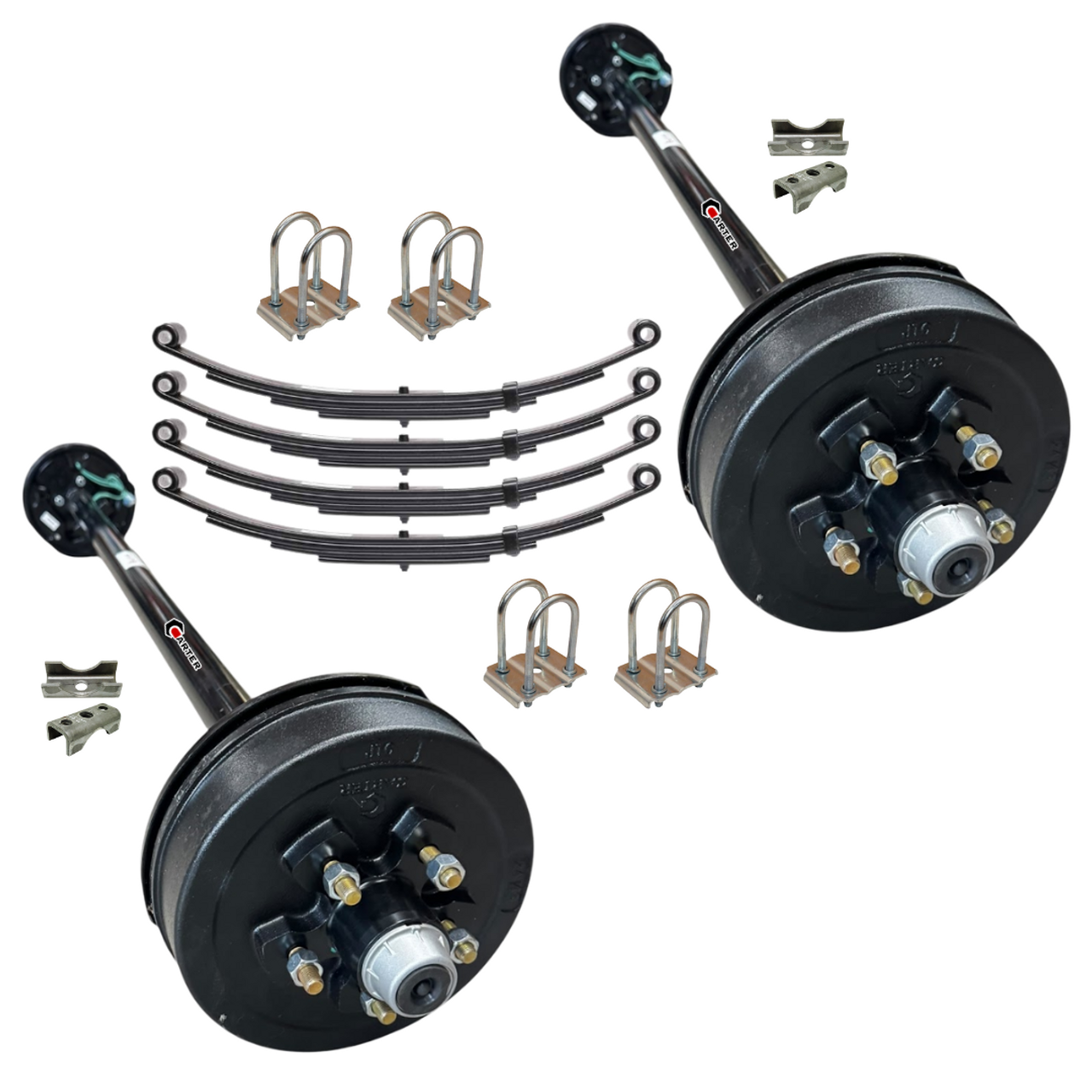

Kit includes:
-
(2) 3.5k electric brake trailer axle 5 lug
-
(4) 4 leaf double eye springs
-
(2) U bolt kit
-
(1) Optional Tandem axle hanger kit
Everything you need to install axles to trailer and get you on the road
Kit Features
Capacity: 3500 lb
Axle Brand: Carter
Stud Size: 1/2 inch
Hub drum: 5 lug Hub Drums – available in 5 on 4.5 or 5 on 5 bolt pattern
Brakes: 10” x 2-¼” Auto Adjusting
Spindles: #84, 1-1/16 inch diameter
Axle Tube: 2-3/8 inch outside diameter, 0.19 inch wall thickness
Suspension Type: Leaf spring
Spring Pads: Welded or loose (custom placement available)
Brake Flange: 4-bolt welded to axle
Fully pre-greased and ready to install
Powder Coated
Pre Wired for convenience (to streamline install)
EZ Fast Lube Grease Zerks in spindles
3-Year Limited Warranty
Bearing and Seal Specs
Inner Bearing: L68149
Outer Bearing: L44649
Inner Race: L68111
Outer Race: L44610
Seal: 10-19 (1.719 in ID, 2.565 in OD)
Grease Cap: 1.98 in OD aluminum cap with rubber plug
2-3/8 Inch U-Bolt Kit
Includes (2) U bolt kits (one per axle)
Each kit consists of:
4 U-bolts, 2 tie plates, and 8 nuts.
Leaf Spring Specs:
Includes (4)
4 leaf double eye springs 25-¼” from center eye to eye
Hanger kit Specs:
Includes
(4) 2" Tall end hangers 2" eye to eye
(2) 3-1/4" Tall Center Hangers 3.25" center
(8) 3-1/8" Shackle Links 3.125" center to center
(2) E-1 Equalizers
(14) Shackle Bolts 9/16"-18
(14) Shackle Nuts locking
Installation Notes
Hub face and spring center measurements can be selected to fit your trailer
