Product Description

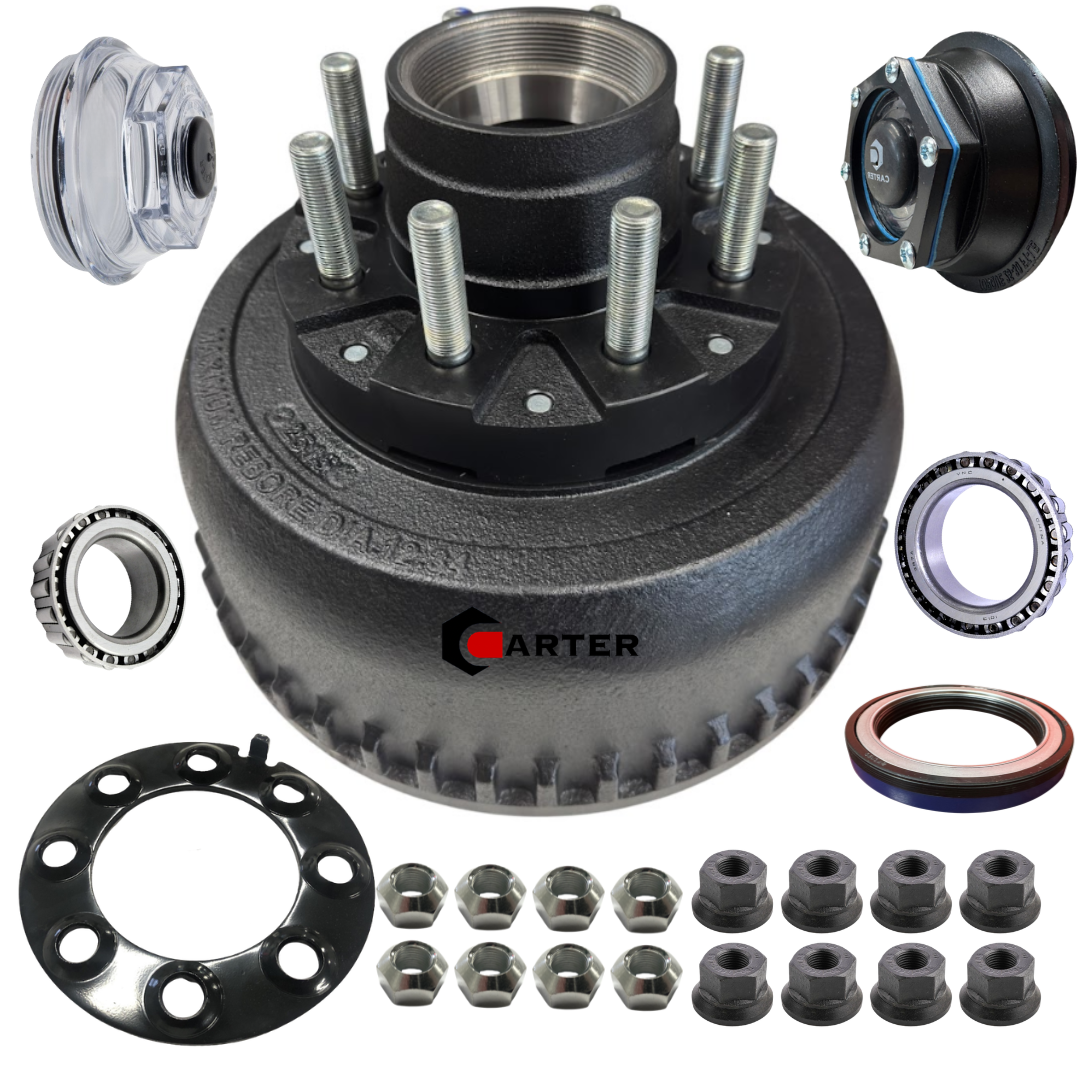

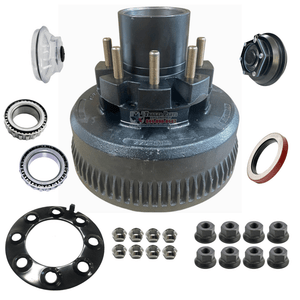

9-10k Hub & Drum for Dexter Axles Made After 7/2009 - Complete - Swivel Flange Nuts
This redesigned two piece hub & drum will work as a direct replacement for the one piece (8-415-2) hub & drums that were used between 7/2009 and 4/2013. This two piece design comes standard on Dexter axles made after 04/2013. There is no need to worry about the races as they are already pressed into the hub for you. The oil seal, bearings, oil cap, lug nut wheel nuts are included.
Items Included:
1) 10k hub and drum (with races pressed into hub)
-
1) 382A Inner Race (Already Pressed In) 3.813 OD
-
1) 25520 Outer Race (Already Pressed In) 3.265" OD
1) inner bearing 387A
1) outer bearing 25580
1) oil seal 10-51
And Options of:
8) 5/8" swivel flange nuts #SFN-â
OR
8) â ” Standard Cone Nuts #X1048 with Tension Wheel Ring #SLJ-10
AND
1) Standard Screw on Plastic Oil/Grease Cap #21-88
Or
1) Upgraded Screw on Aluminum Oil/Grease Cap #KC21-302
Works with Dexter, Carter, Lippert Axles
