Product Description

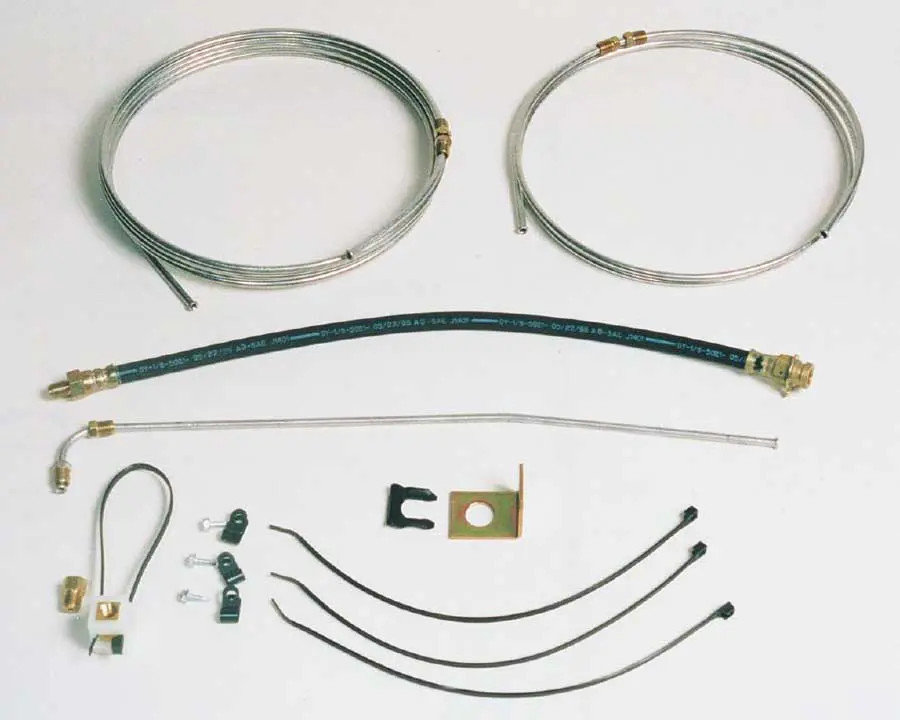

What’s Included in This Single Axle Brake Line Kit
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AG-16180-C | 3/16" x 15 FT Brake Line | 1 |
| 2 | AG-16072-C | 3/16" x 72" Brake Line | 1 |
| 3 | AG-16030-C | 3/16" x 30" Brake Line | 1 |
| 4 | AG-16005-F | 3/16" x 5" Brake Line | 1 |
| 5 | 18013-FF | 13" Hydraulic Brake Hose FML/FML | 1 |
| 6 | 25X15 | Frame / Hose Bracket | 1 |
| 7 | 1457 | Hose Clip | 1 |
| 8 | 7812 | 3/16" IF Union Tee w/ Bracket | 1 |
| 9 | 12060 | Tube Clamp | 3 |
| 10 | 12700 | Axle Strap | 3 |
| 11 | 11832 | Self-Tap Screw | 3 |
| 12 | 202X3 | 1/8" MPT x 3/16" IF Adapter | 1 |
Single Axle Trailer Brake Line Kit – Complete Hydraulic System
Upgrade your trailer with this complete single axle hydraulic brake line kit, designed to give you a clean, leak-free braking system without chasing parts.
Built for real-world use, this kit includes everything needed to properly run brake lines on a single axle trailer. Whether you're replacing worn-out lines or building a trailer from scratch, this setup makes installation simple and reliable.
Works with surge brake actuators, electric-over-hydraulic systems, and air/hydraulic setups, giving you flexibility across different trailer builds.
What This Kit Does
This is a complete hydraulic brake line solution for single axle trailers. No guessing, no piecing parts together — everything is matched to work as a system.
Key Features
- Complete Kit – Everything Included
Brake lines, hoses, fittings, tees, clamps, and mounting hardware - Built Strong for Long-Term Use
Double-wall brazed low carbon steel tubing for strength and reliability - Corrosion Resistant
Galfan-coated tubing helps prevent rust and extends lifespan - SAE-Compliant Components
- Tubing meets SAE J527
- Fittings meet SAE J512
- Flares built to SAE J533b
- Works With Multiple Brake Systems
- Surge brake actuators
- Electric-over-hydraulic systems
- Air/hydraulic setups
- Universal Trailer Fitment
- Drum or disc brakes
- Leaf spring or torsion suspension
Perfect For
- Utility trailers
- Car haulers
- Small equipment trailers
- Single axle dump trailers
- Any trailer needing a full brake line replacement
Why This Kit Matters
Old brake lines are one of the most common failure points on trailers. This kit gives you a complete, properly matched system so you’re not dealing with leaks, mismatched fittings, or wasted time.
