Product Description
Axle Information:
Heavy Duty 12K axle is constructed of 5" x 9/16" heavy wall tubing. The spindle is cold forged, fully machined and friction welded to the axle tube, creating a weld which is stronger than the base metal. Axles equipped with drum brakes have a two piece hub and drum assembly which has a replaceable steel armature for use with electric brakes. Oil caps are molded from high strength polycarbonate to minimize breakage and leakage. Timken bearings are lubricated with SAE 90 weight oil to assure long bearing life.

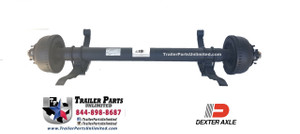

Dexter 12,000 lbs. electric brake axle with a 74" track and 47" or 46" spring centers, u-bolts, and springs without wheels and tires. 8-6.5" bolt circle flat faced (hub pilot) with 4.75" center bore. High strength 5" tubing. 6 leaf domestic slipper springs. High-quality self-adjusting 12 1/4 x 5" drum brakes.
| Axle Brand | Dexter |
| Country Made | U.S.A |
| Capacity Per Axle | 12,000 lbs |
| Hub & Drum | 2 Piece High Profile for use with 16" & 17.5" Single or Dual Wheels. |
| Bolt Pattern | 8 on 6.5" |
| Stud Size | 5/8" |
| Lug Nuts | Included |
| Wheels (not included) | 16" Dual, 17.5" Dual or 17.5" Single Wheel |
| Lubrication | Oil Bath (standard) or Grease (special order) |
| Axle Tubing Outer Diameter | 5" Round .44 Thickness |
| Axle Tubing Thickness | 9/16" |
| Spindles | Precision Machined Steel Spindles |
| Brakes | 12 1/4" x 5" Electric |
| Suspension | 3" Wide Slipper Leaf Springs attached on Axle |
| Spring pads | pre welded on axle at 47" OR 46" spring centers |
| Inner Bearing | 3984 |
| Outer Bearing | 28682 |
| Hub Face to Hub Face | 74" |
| Spring center to Spring Center | 47" OR 46" |
***This Axle Comes Fully Assembled with the Brakes and springs already assembled on the axle. This axle is pre-lubed and ready to install on the trailer.***
Dexter Trailer Axle, The Trailer Axles made in the USA.
You can choose to use 16" Dual Tires and wheels or 17.5" Dual or Single Wheels with this axle.
Please See Diagram Below on how to properly measure your axle.
