Product Description
To Calculate shipping cost:
Add items into the shopping cart.
Go to VIEW SHOPPING CART,
In the shopping cart you will see a place for shipping.
Put your state and zip code into the box and press calculate.
If it gives you an error just give us a call and we can help you out
Kit Includes:

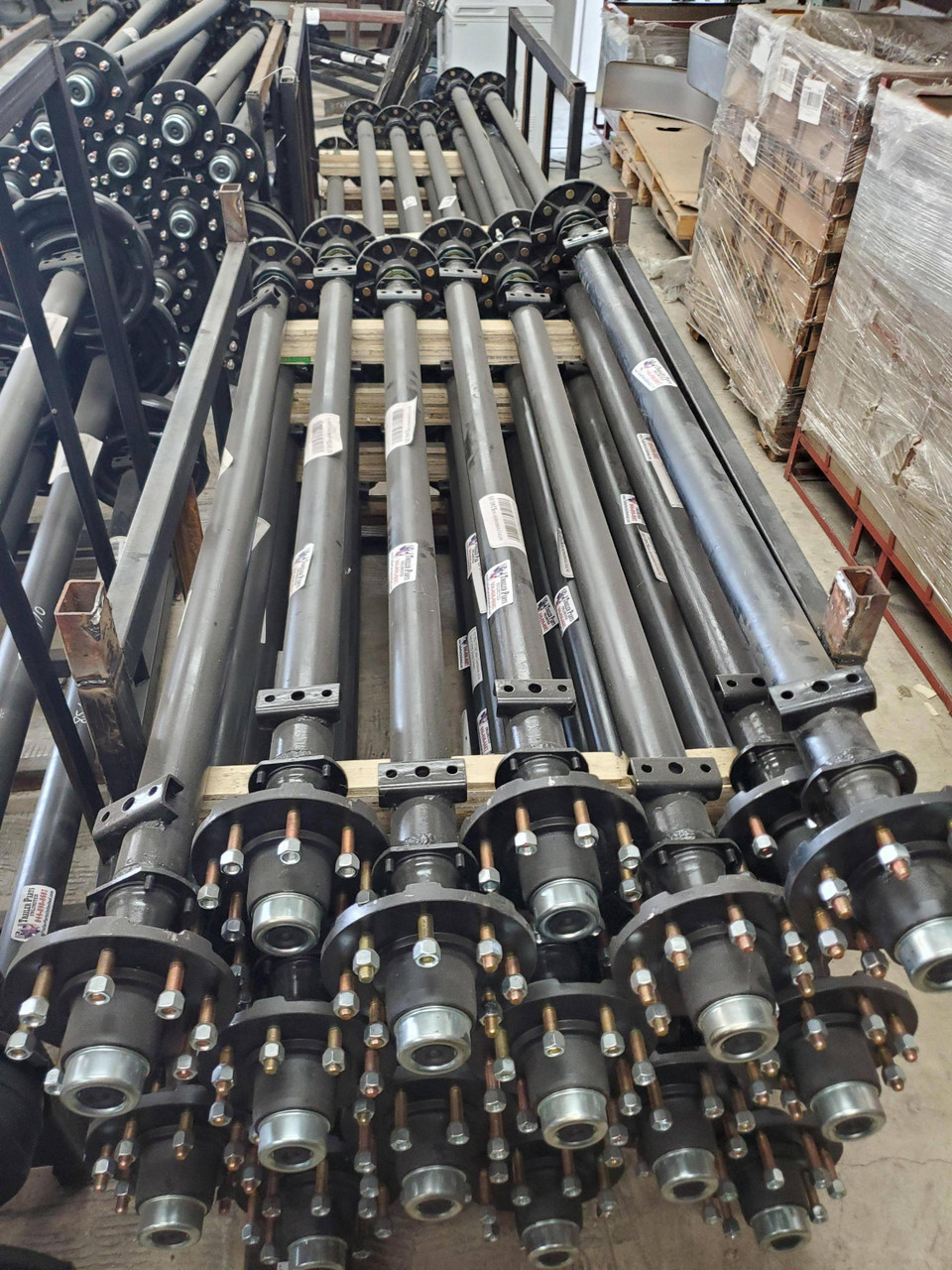

(1) 7,000 lbs. Trailer Axle 8 lug Idler Hubs
(2) 5 leaf 2” wide Slipper springs
(1) 3” U-bolt kit (1 kit per axle)
(1) Single axle hanger kit (includes all the weld on hangers ,spring bolts and nuts.)
(2) ST235/85R16 14-Ply TPU Radial LRF Tire on Silver Mod Wheel 8x6.5"
Axle Specs & Features:
Axle Brand: TPU
Capacity per Axle: 7,000 lbs
Axle hub - 8 Lug on 8x6.5" bolt pattern
Brakes: Idler Hubs 8 lug
Axle Beam - 3" Tube 1/4" wall thickness
Axle Hub Cap - Fast Lube Grease
Axle Studs - 9/16"
Replaces Rockwell American, Dexter, AL-KO, Hayes, Lippert Axles, and Just about any other brand axle.
Axles come fully assembled
Packed with High-Temp Axle Grease.
Fast lube grease.
Grease fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.
Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs)
which Allows for lower ride height. For optimal usage, use with springs
High Strength Cambered Steel Axle Tube Construction to ensure Even Tire Wear so the tires will last longer.
Powder-coated black.
Trailer Tire Wheel Specifications:
Tire Size: ST235/85R16
Ply Rating: 14
Load Range: G
Overall Diameter: 31.26”
Section Width: 9.25”
Max Capacity Per Tire: 4,400 lbs
Tire PSI: 110 lb
Tread Depth: 12/32nds
Wheel Specs:
Wheel Size: 16” x 6”
Bolt Pattern: 8x6.5”
Center Bore Hole: 5.12”
Max Load Per Wheel: 4000 lbs
Offset: 0”
Slipper Spring Specifications:
5 Leaf 2" Wide Slipper Spring 3.5k Cap. 26-7/8" Free Length
Measures 2" wide and 26-7/8" long from eye to end.
Spring Type: Slipper Spring
Capacity per spring: 3,500 lbs
Leaves: 5
Eye Dimension: 9/16"
Arch Height: 3"-3.25"
Spring Eye size: 9/16"
Single Hanger Kit Specs:
Kit includes 3-3/4" tall front hangers, 5-1/6" tall rear hangers and hardware for mounting 2" springs to your 2,000-lb to 8,000-lb, single-axle trailer frame.
Features:
Attaches 2 leaf springs to your trailer frame
Use table below to determine hanger location based on type of leaf springs
Achieves 4-3/4" or 5" clearance between trailer frame and axle, depending on axle size
Includes:
(2) 3-3/4" Tall front hangers
(2) 5-1/6" Tall rear hangers
(4) 3-1/2" Long x 9/16" diameter shackle bolts
(4) 9/16" Diameter locknuts
Designed for use on trailers with single, 2,000-lb to 8,000-lb axles
3" U-Bolt kit Includes:
(4) 1/2"-20 x 6.63" L 3" Tube U-bolts.
(8) 1/2"-20 U-bolt nuts.
(2) Tie Plates for 3" Wide Axle Tubing u bolts.
This Kit is all the u-bolts and hardware for one complete axle.

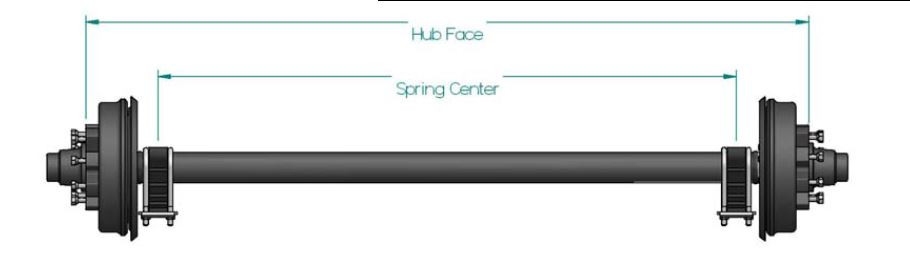

How to properly measure your axle:
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.
Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about a 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)
How To Measure Your Bolt Pattern:
Shipping:
This item ships on a pallet with a common freight carrier. Please see the shipping policy for more info.
https://trailerpartsunlimited.com/shipping-returns/
We offer discounts for bulk orders and manufacturing discounts.
