Product Description
Product Details – 9/16-18 Trailer Hub Stud
You can purchase this trailer hub stud by itself, with swivel flange nuts, or choose the option to add a standard 9/16-18 cone lug nut with each wheel stud for a complete setup.
This 9/16” trailer wheel stud is commonly used on 7,000 lb and 8000 lb trailer axle hubs with 9/16 studs. making it one of the most universal and widely used studs across many axle brands. While it fits a large range of applications, always verify your measurements before ordering to ensure proper fitment.
Important Fitment Note:
The knurl diameter is the most critical measurement. This is the portion of the stud that presses into the trailer hub:
-
If the knurl diameter is too small, the stud may not seat properly and can fall out.
-
If the knurl diameter is too large, installation will be difficult and may damage the hub.
Stud Specifications
-
Thread Size: 9/16-18
-
Overall Length: 2.48
-
Knurl Diameter: 0.60
-

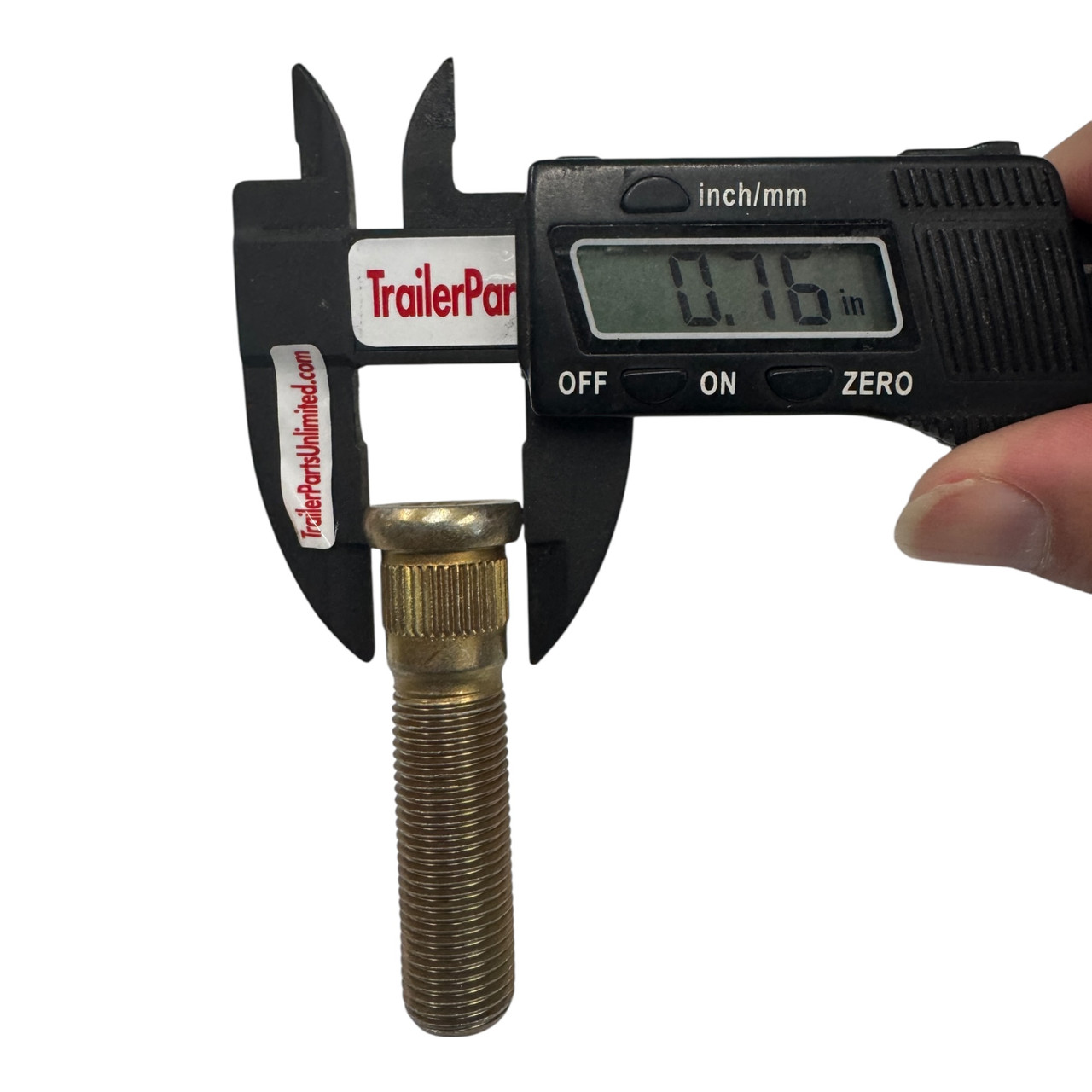

Head Diameter: 0.76

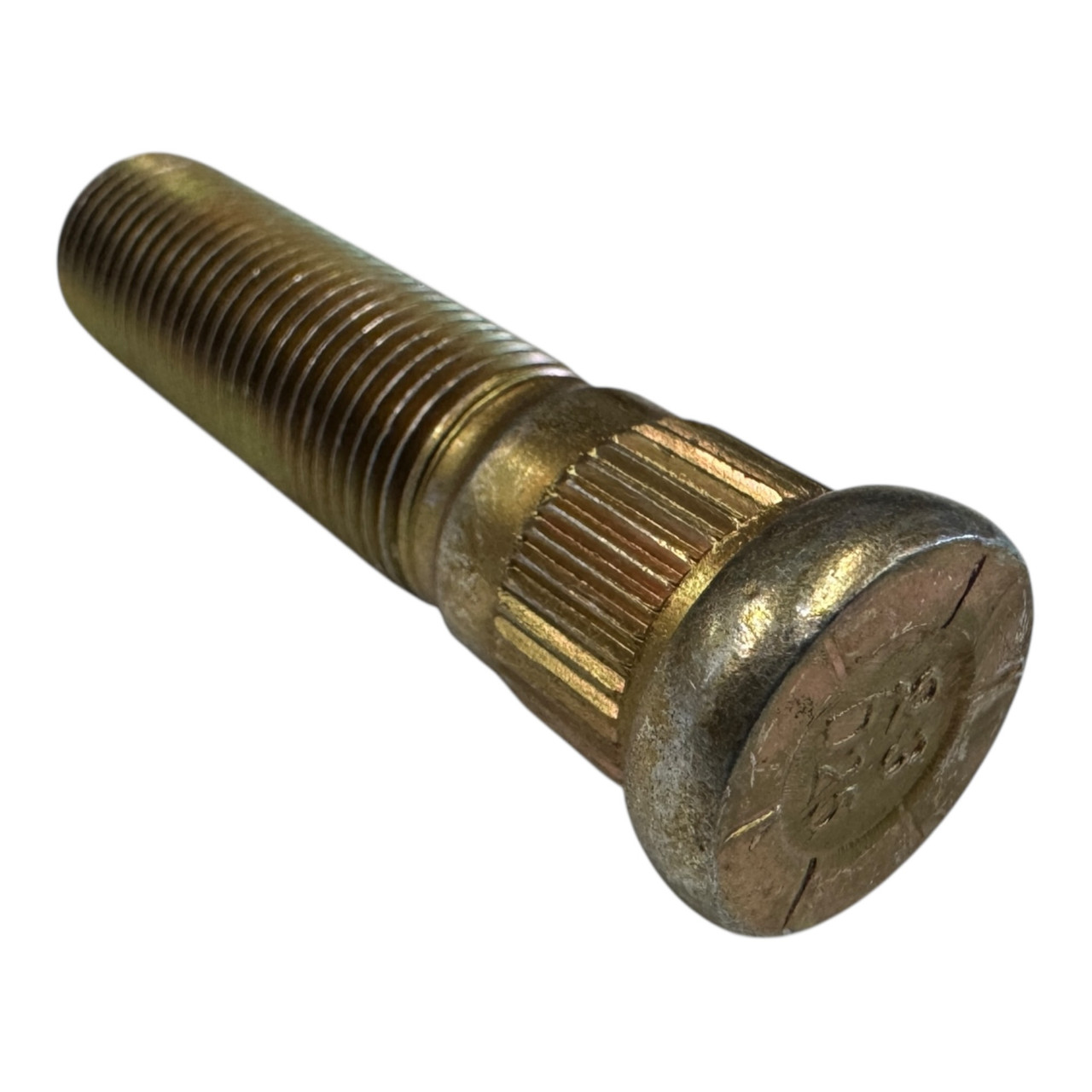

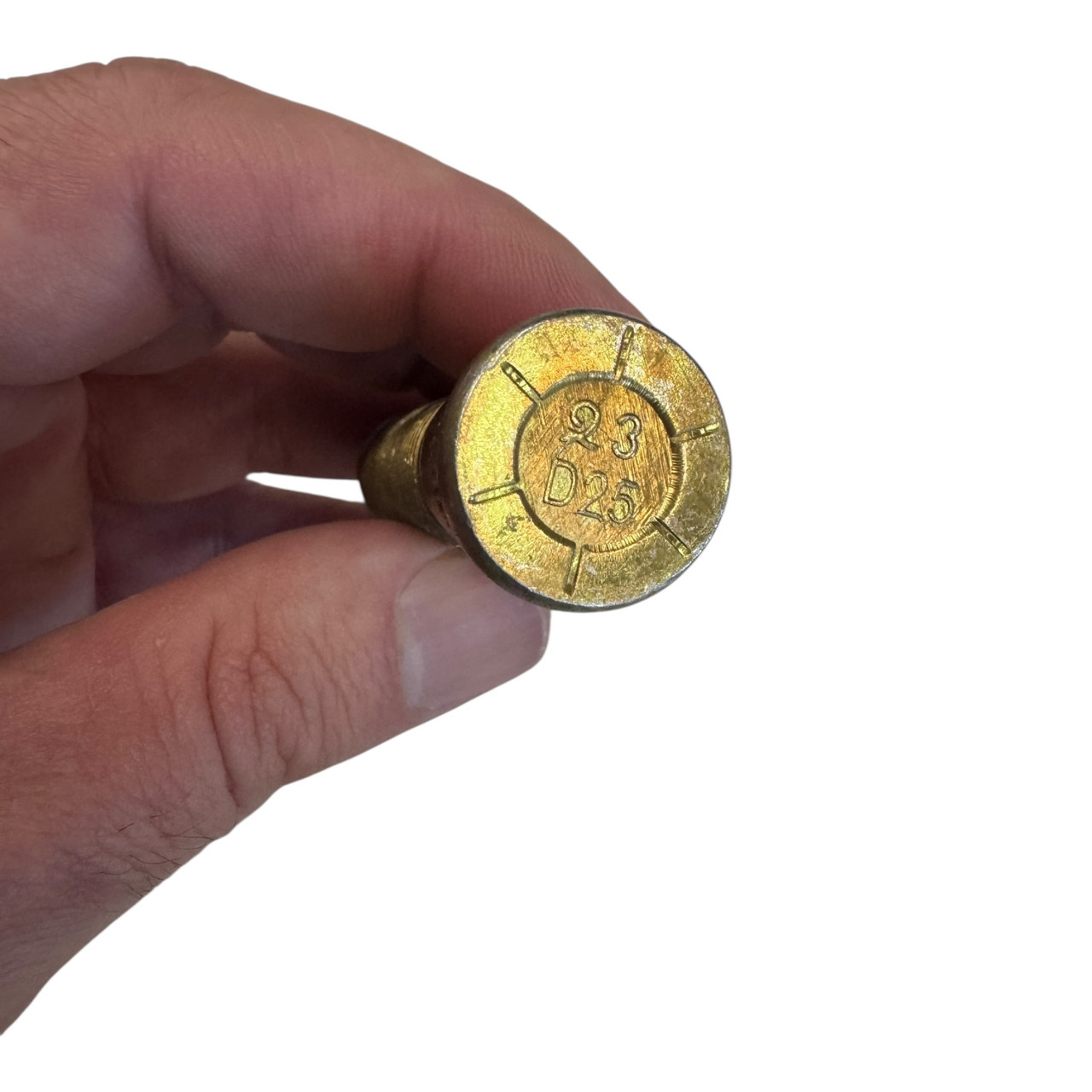

Some Identifying marks: 23d25, 132-00, 23 H22, 23D25, 23 H22
Interchangeable part numbers but not limited to: 23d25, 132-00, 23 H22, 23D25, 23 H22
