Upgrade your axles, replace your damaged axles, or build a trailer with this 12,000 lbs.
Tandem axle trailer kit.
This kit comes with all the necessary hardware to install both axles on your trailer and get you on the road and 4) 15" 10ply tires and wheels.
Kit includes:
(2) 6,000 lbs Trailer Axles with 6 lug idler hubs installed on the axles.
(4) 5 leaf 1-¾” wide double eye springs,
(2) 3” U-bolt kits (1 kit per axle),
(1) Tandem axle hanger kit (includes all the weld on hangers, equalizers, spring bolts and nuts.)
(4) ST225/75R15 10-Ply LRE Radial Trailer Tires mounted on Silver Mod Wheels
Select from the options above to get what you need today.
If you do not see the option you need, give us a call, or fill out a custom axle order form, email or fax it to us for a quote.
Axle Brand: Trailer Parts Unlimited
Axle hub - 6 lug 5.5" bolt pattern
Brakes: Idler Hubs (No Brakes)
Flange: 5 Bolt Welded on Axle (in case you want to install brakes in the future)
Axle Beam - 3" Tube ¼” wall thickness
Axle Hub Cap - Fast Lube Grease
Axle Studs - 1/2"
Replaces Dexter, AL-KO, Hayes, Lippert Axles, Rockwell American, Hayes, and Just about any other brand axle.
Axles come fully assembled
Packed with High-Temp Axle Grease.
Fast Lube Design.
Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.
Underslung – The axle is welded with spring seats on the bottom (Axle sits on top of the springs) which Allows for lower ride height. For optimal usage, use with double eye springs
High Strength Cambered Steel Axle Tube Construction to ensure Even Tire Wear so the tires will last longer.
Powder-coated black.
Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
Axles come fully assembled ready to install on your trailer.
ST225/75R15 10-ply Radial Tire Specifications:
Tire Specifications:
Tire Size: ST225/75R15
Load range: E
Outer Diameter: 28.31”
Section Width: 8.78”
Max capacity per tire (lbs): 2830 lbs
Tire PSI: 80
PLY RATING: 10
Mounted on Rim: Yes
Wheel Specifications:
Wheel Size: 15” X 6”
Offset: 0.0”
Center Bore Hole (inch): 4.25”
Load Capacity Per Wheel (lbs): 2830
Wheel Material: Steel
Wheel Style: Single Silver Mod Wheel.
Double Eye Spring Specifications:
3000 lb. capacity double eye leaf spring.
Measures 1-3/4" wide and 25.25" long from eye to eye.
Spring Type: Double Eye
Capacity per spring: 3,000 lbs
Leaves: 5
Dimensions: 25.25" Long, 1.75" Wide
Spring length eye to eye: 25-1/4"
Spring width: 1-3/4"
Eye Dimension: 9/16"
Arch Height: 3"-3.25"
Spring Eye size: 9/16"
.
Tandem Hanger Kit for 1-3/4" wide Double Eye Leaf Springs
Hanger Kit Includes:
(4) 2" Tall end hangers 2" eye to eye.
(2) 3-1/4" Tall Center Hangers 3.25" center.
(8) 3-1/8" Shackle Links 3.125" center to center.
(2) E-1 Equalizers.
(14) Shackle Bolts 9/16"-18.
(14) Shackle Nuts locking.
3" U-Bolt kit Includes:
(4) 1/2"-20 x 6.63" L 3" Tube U-bolts.
(8) 1/2"-20 U-bolt nuts.
(2) Tie Plates for 3" Wide Axle Tubing u bolts.
This Kit is all the u-bolts and hardware for one complete axle.

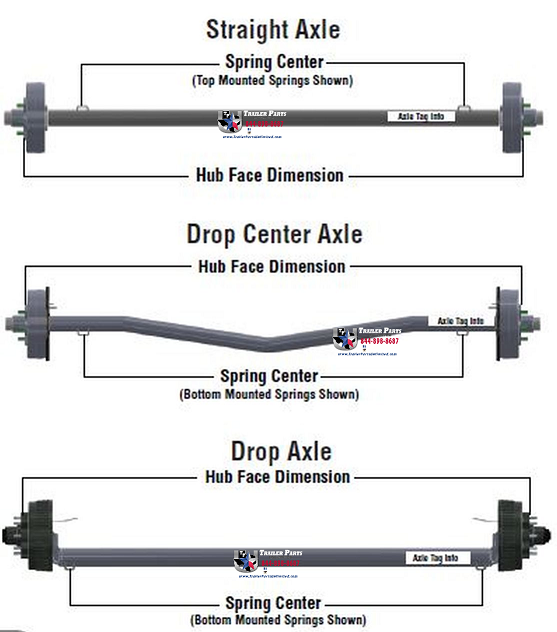

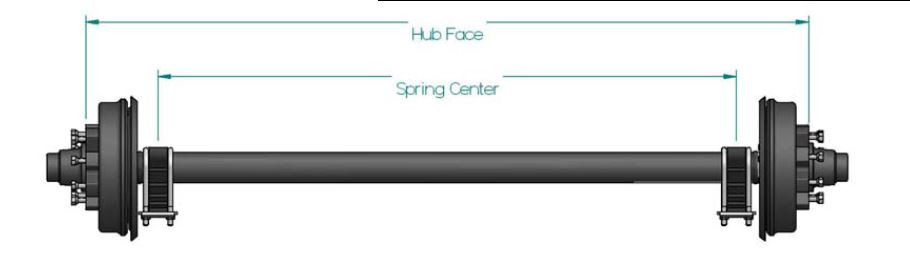

How to properly measure your axle:
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.
Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side
How To Measure Your Bolt Pattern:
