Product Description

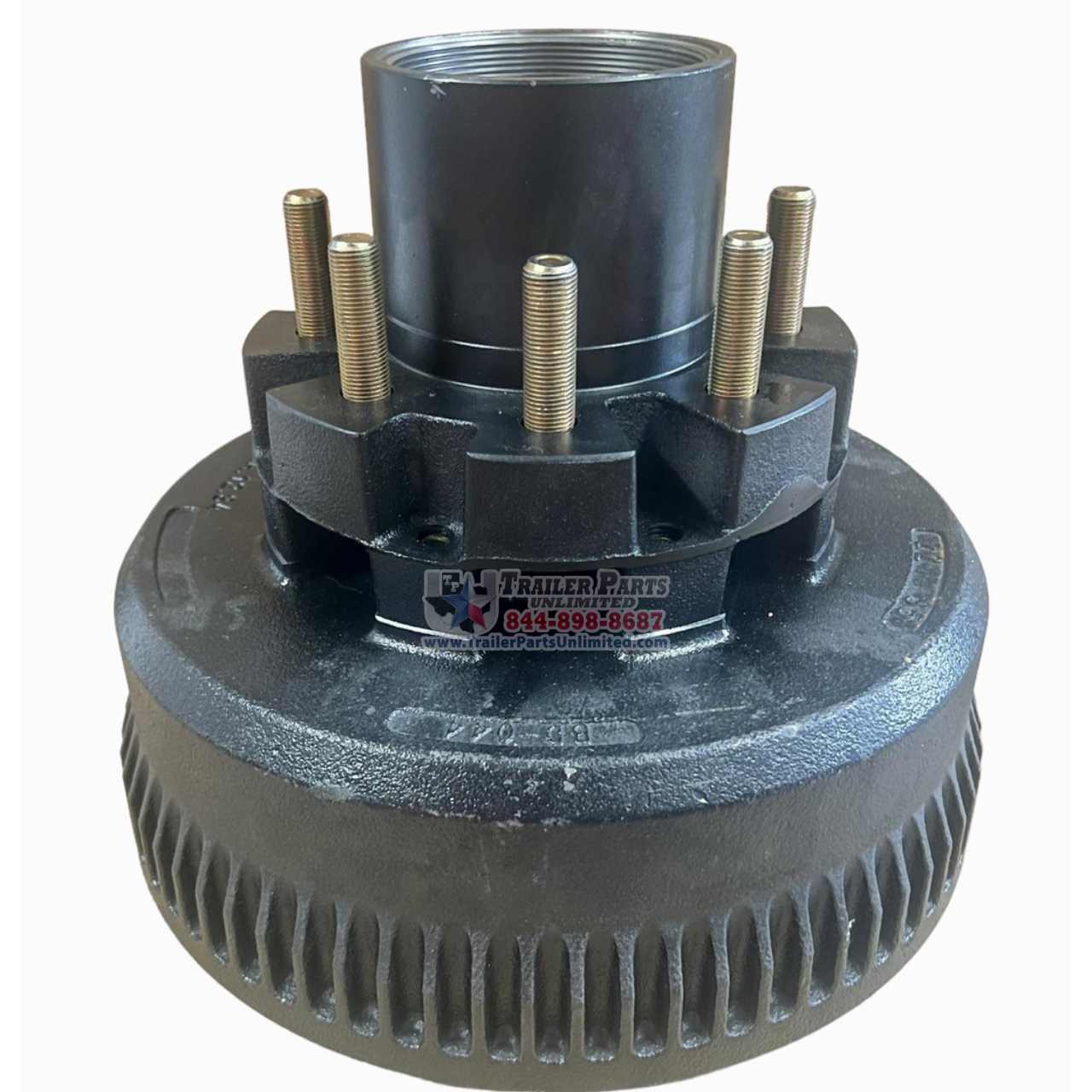

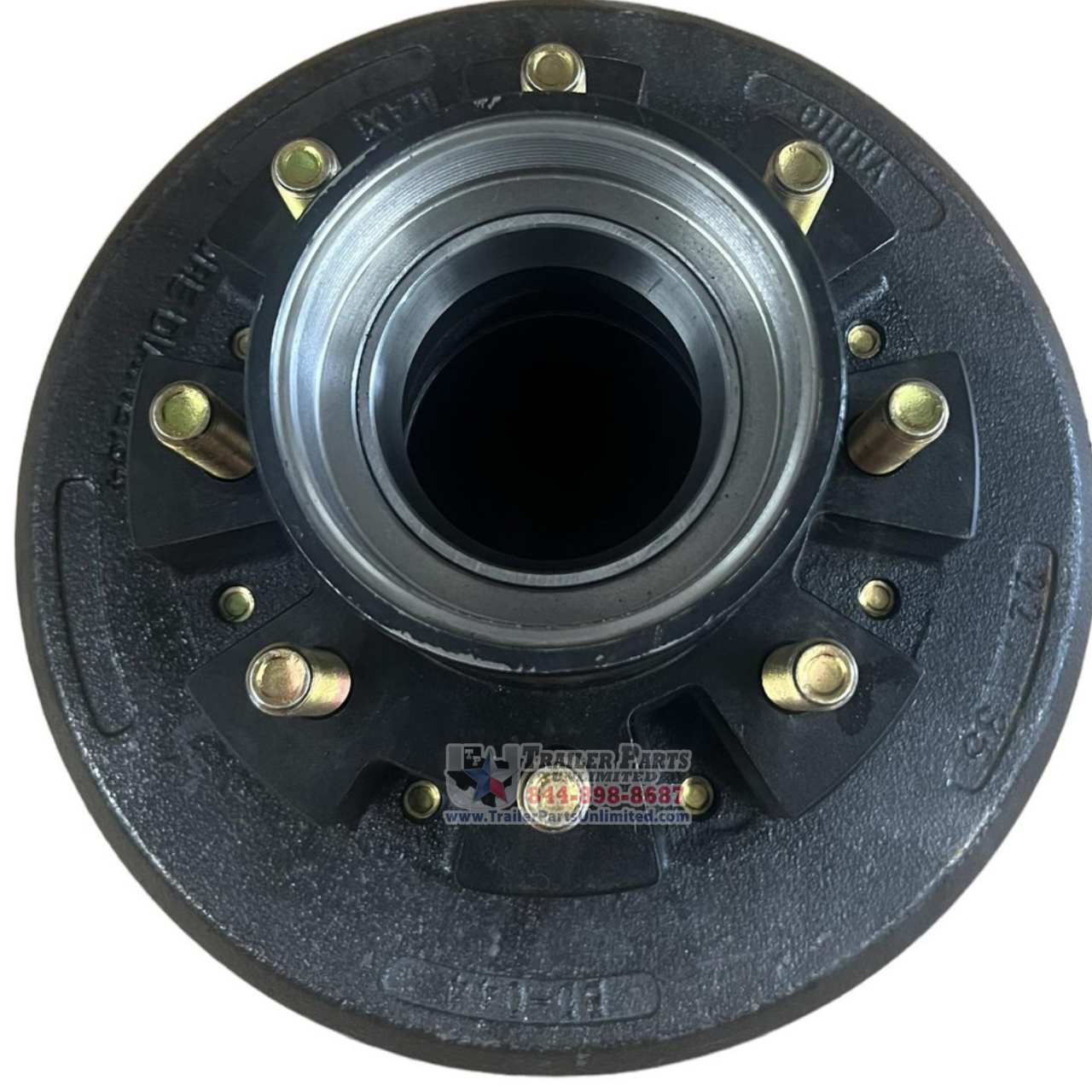

Hub-and-drum fits 9K to 10K general-duty Dexter axles manufactured before July 2009.
Items Included:
• 1 382A Inner Race (Already Pressed In) 3.813 OD
• 1 25520 Outer Race (Already Pressed In) 3.265" OD
• 1 8 on 6.5" Hub only
• 5,000lb Capacity Per Hub
• 1 12-1/4" x 3-3/8" drum installed
Items Not Included (sold Separate)
1 - 387A Inner Bearing (2.25" ID)
• 1 - 25580 Outer Bearing (1.75" ID)
• 1 - 10-51 Oil Seal (2.875" x 3.88")
• 1 - 21-36 Oil Cap
• 8 -Coned Wheel Nuts
• 1 -Wheel Retaining Ring
Specs:
Application: 9,000-lb and 10,000-lb general-duty axles
workts with axles manufactured before july 2009
drum dimensions: 12-1/4" x 3-3/8"
bolt pattern: 8x6.5"
stud size: 5/8"
