Product Description

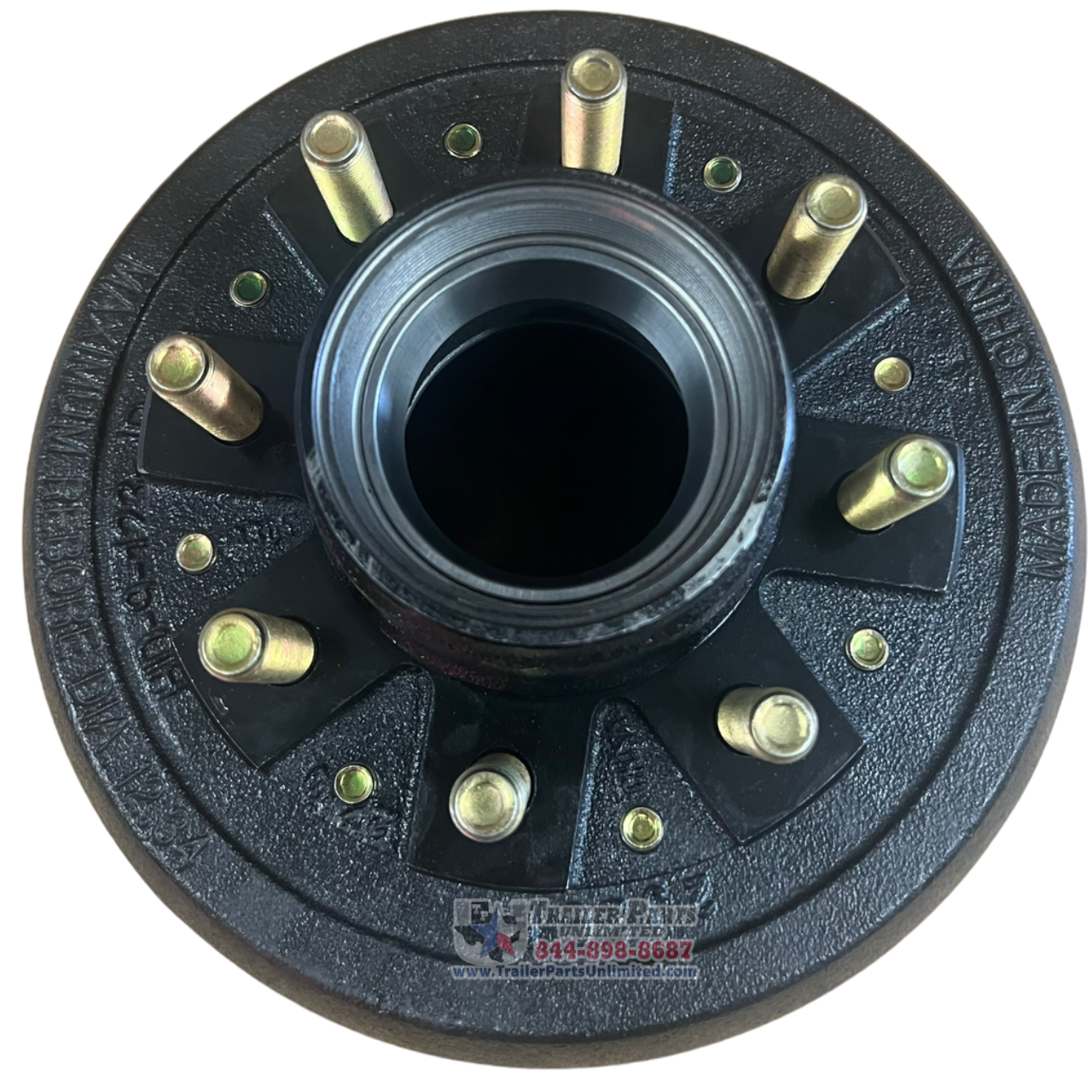

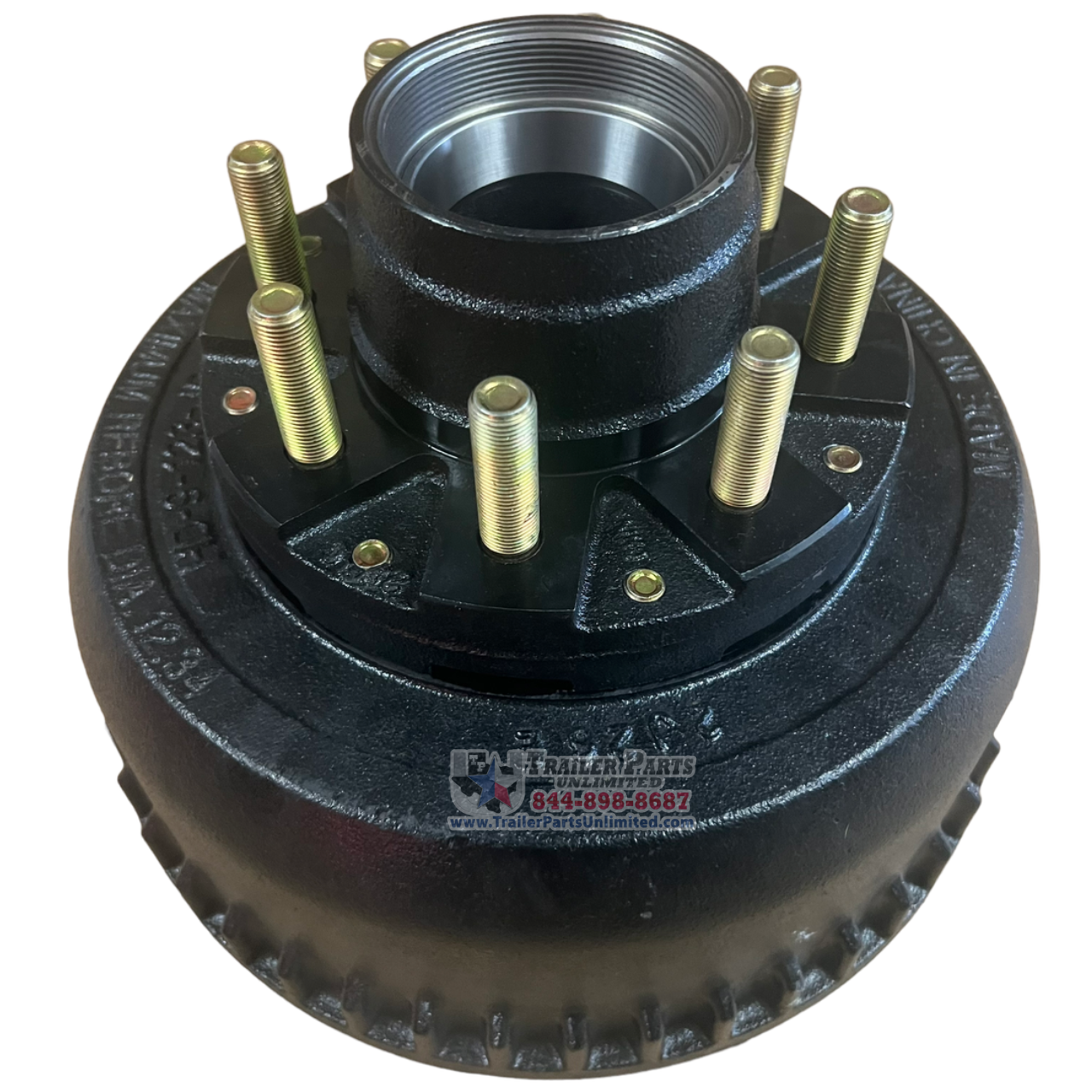

9-10k Hub & Drum for Dexter Axles Made After 7/2009 - Cupped & Studded
Dexter Style Hub & Drum W/ 8 on 6.5" Bolt Pattern For 9,000lb & 10,000lb GD Dexter Axles Manufactured After 07/2009
This redesigned two piece hub & drum will work as a direct replacement for the one piece (8-415-2) hub & drums that were used between 7/2009 and 4/2013. This two piece design comes standard on Dexter axles made after 04/2013. There is no need to worry about the races as they are already pressed into the hub for you. The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately. This hub is designed for use with 9-10K GD axle spindles. Each hub has a capacity if 5,000lbs. The 12-1/4" x 3-3/8" drum is already mounted to the hub for ease of installation. Spindle nut and washer sold separately.
Items Included:
• 1 382A Inner Race (Already Pressed In) 3.813 OD
• 1 25520 Outer Race (Already Pressed In) 3.265" OD
• 1 8 on 6.5" Hub only
• 5,000lb Capacity Per Hub
• 1 12-1/4" x 3-3/8" drum installed
Items Sold Separately:
• 1 - 387A Inner Bearing (2.25" ID)
• 1 - 25580 Outer Bearing (1.75" ID)
• 1 - 10-51 Oil Seal (2.875" x 3.88")
• 1 - 21-88 Oil Cap
• 8 -Coned Wheel Nuts
• 1 -Wheel Retaining Ring
