Product Description
This 3,500 lb trailer idler hub assembly comes pre-greased and ready to install — no messy bearing packing required.
Built for #84 spindles and compatible with Dexter, Lippert, AL-KO, AxleTek, Carter, and nearly any other 3.5K axle brand, this hub fits trailers using 5 on 4.5" or 5 on 5" bolt patterns.
The hub includes all internal components — bearings, races, seal, grease cap, and lug nuts — pre-installed and lubricated with lithium-complex multipurpose grease for long-term protection.
Its cast-iron body and zinc-enriched paint coating resist corrosion while maintaining excellent heat dissipation under load.
Features:
-
Fits 3,500 lb axles with #84 spindles
-
Fully compatible with Dexter, Lippert (LCI), AL-KO, AxleTek, Carter, and more
-
Pre-greased and assembled — ready to install
-
Includes bearings, races, seal, grease cap, and lug nuts
-
Zinc-enriched finish protects against corrosion
-
Lithium-complex grease keeps bearings lubricated longer
-
QAI & CSA certified for safety and quality compliance
Specifications:
-
Axle rating: 3,500 lb (1,750 lb per hub)
-
Spindle type: #84 (1.063" OD outer journal / 1.378" OD inner journal)
-
Bolt pattern: 5 on 4.5" or 5 on 5"
-
Wheel stud size: ½" diameter × 1-5/16" length
-
Grease cap flange diameter: 1.988"
-
Wheel size range: 13"–15"
-
Construction: Cast iron hub, zinc-enriched paint finish
-
Weight capacity: 1,750 lb per hub
-
Warranty: 1 year limited
Bearing, Race & Seal Info:
-
Inner bearing: L68149 (1.378" ID) with race L68111
-
Outer bearing: L44649 (1.063" ID) with race L44610
-
Grease seal: 58846 (1.719" ID × 2.565" OD)
Includes:
-
1 × Hub assembly (pre-greased)
-
1 × Inner & outer bearing set (pressed races installed)
-
1 × Grease seal
-
1 × Grease cap
-
5 × ½" lug nuts
Ideal for: Utility trailers, boat trailers, car haulers, cargo trailers, and equipment trailers.

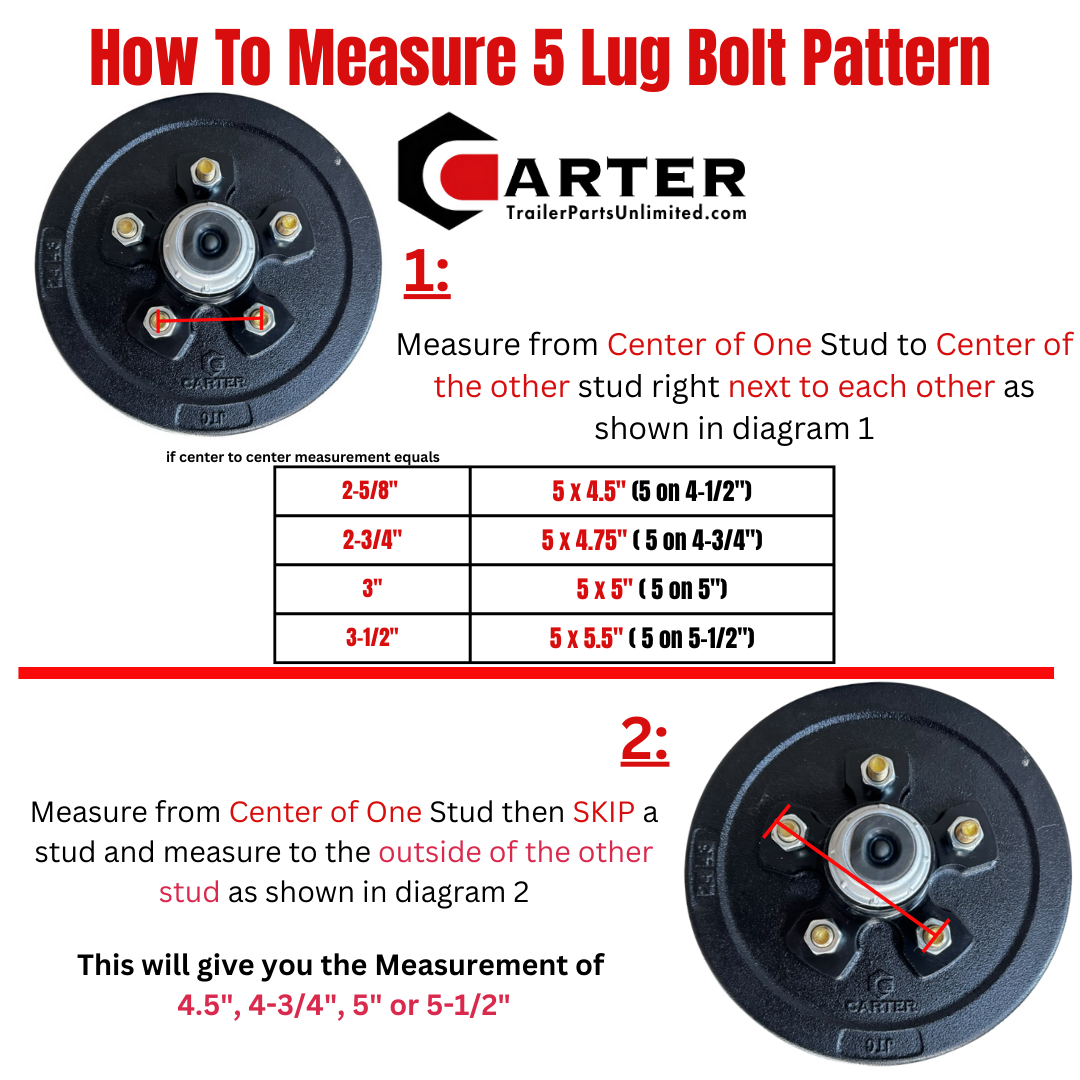

how to measure your bolt pattern
