Product Description

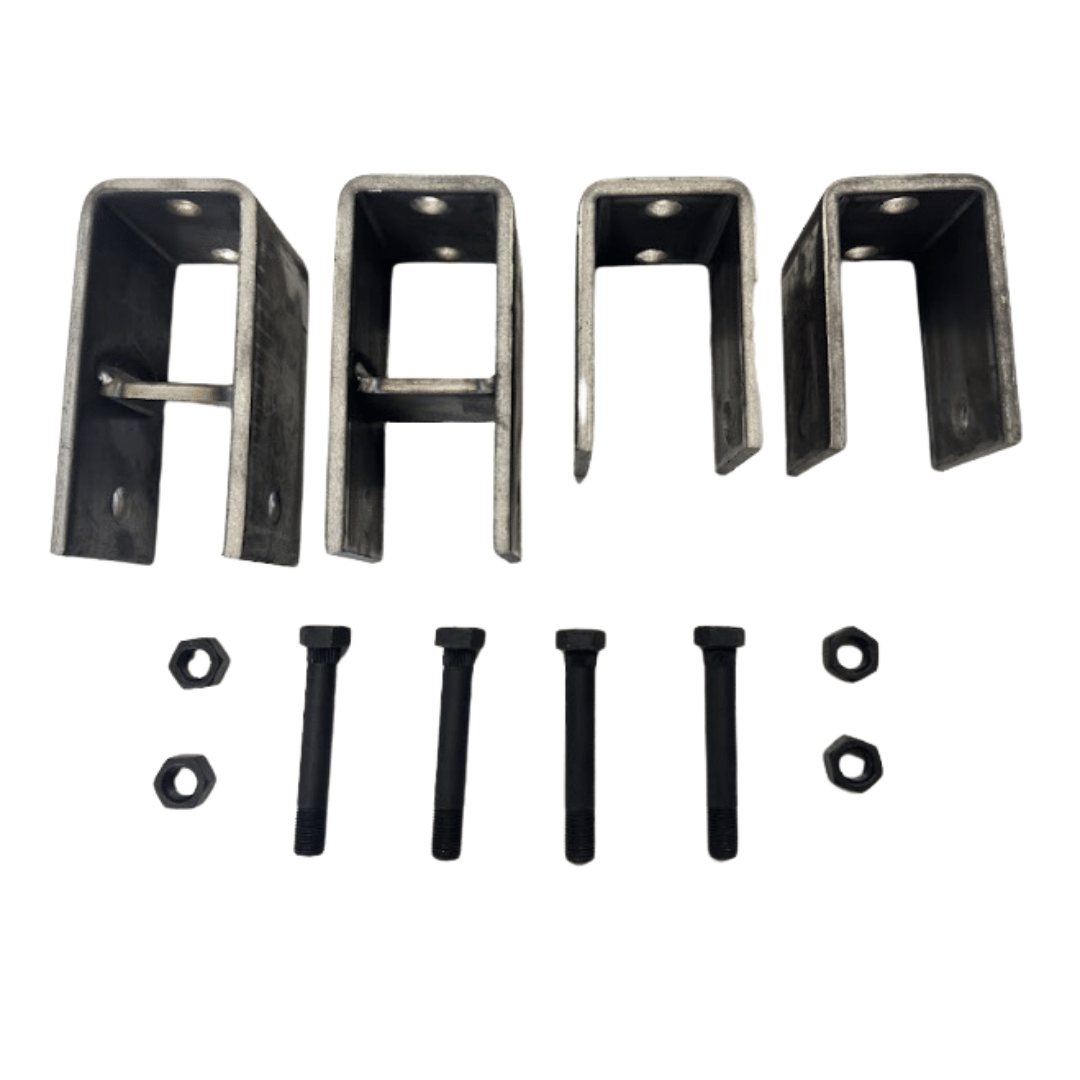

Kit includes 3-3/4" tall front hangers, 5-1/6" tall rear hangers and hardware for mounting 2" springs to your 2,000-lb to 8,000-lb, single-axle trailer frame.
Features:
Attaches 2 leaf springs (sold separately) to your trailer frame
Achieves 4-3/4" or 5" clearance between trailer frame and axle, depending on axle size
Includes:
(2) 3-3/4" Tall front hangers
(2) 5-1/6" Tall rear hangers
(4) 3-1/2" Long x 9/16" diameter shackle bolts
(4) 9/16" Diameter locknuts
Designed for use on trailers with single, 2,000-lb to 8,000-lb axles
|
Leaf Springs |
A - Distance Between Hangers |
B - Distance Between Center of Axle and Trailer Frame |
Axle Diameter |
|
SP-230275 (803T3) SP-232275 (1203T3) SP-285275 (1403T3) |
25" |
4-3/4" |
3" (typical 5,200-lb to 7,200-lb trailer axle) |
|
SP-160275 (E5226) |
26" |
5" |
3" (typical 5,200-lb to 7,200-lb trailer axle) |
|
SP-161275 (E5115) |
28" |
5" |
3" (typical 5,200-lb to 7,200-lb trailer axle) |
Note: The above table provides an indication of where the included hangers can be mounted on your trailer. The distance between the hangers may vary depending on your specific application. Be sure to verify proper positioning before welding.
