Product Description
AXLE SPECIFICATIONS:
NOT ROCKWELL BRAND
Capacity Per Axle (LBS): 3,500
Stud Size: 1/2"
Hubs: 5 Lug Idler Hubs
Spindles: #84
Spindle Size: 1-1/16"
Axle Tubing Diameter (Inch): 2 3/8"
Axle Tubing Thickness: .180"
Lubrication: EZ-Grease Zerks in Spindles
Spring Pads: Welded on Axle
Brake Flange: 4 Bolt Welded on Axle
Pre-Greased: Yes
Inner Bearing: L68149
Outer Bearing: L44649
Suspension: Leaf Spring
Cambered: Yes
Under-slung: Yes (the axle sits on top of the springs)
FULLY ASSEMBLED, READY TO INSTALL ON TRAILER.
Bearing, Race, and Seal Information:
Bearings:
Inner Bearing - L68149
Outer Bearing: L44649
Seal: 10-19 EZ-Lube:
1.719" Inner Diameter.
2.565" Outer diameter.
Races
Inner Race: L68111
OUTER RACE: L44610
Grease Cap:
1.98' Outer Diameter - EZ-Lube with Rubber Plug
Spindle: EZ Lube
Features:
Axle Beam Acts as part of your trailer Suspension for hauling loads.
Great for replacing an old axle or bent damaged axle on your trailer
Made of High Strength Steel
Under-slung axle design: spring pads are welded to the underside of the axle for mounting leaf springs.

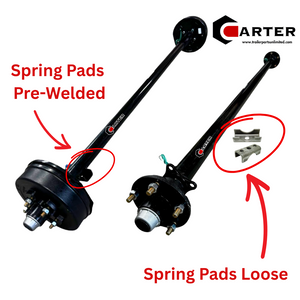

Spring pads are welded on the trailer axle for your convenience.
The 5 lug hubs are assembled on the axle with the bearings, seals, pre-greased, fully assembled for simple install on your trailer.
Limited 2-year warranty
Hub face:
refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle
(when hubs are mounted on the beam).
Spring center:
is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other.
This axle beam comes with the spring seats welded on.

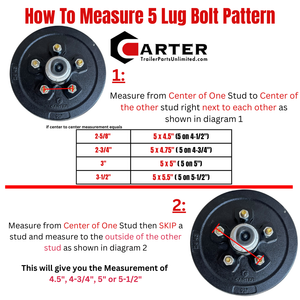

Use the distance between the center of one bolt hole to the center of the bolt hole adjacent to it:
If the distance is:
2-5/8" - the bolt pattern is 5 on 4-1/2
2-3/4" - the bolt pattern is 5 on 4-3/4
3" - the bolt pattern is 5 on 5
3-1/4" - the bolt pattern is 5 on 5-1/2
Product Description:
3.5K 5-lug idler axle will replace Dexter, Al-Ko, Hayes, and Lippert Axles.
powdered coated and made of high-strength steel and come with spindles and spring seats welded on.
The spring seats are attached to the underside of the axle so that the leaf springs.
The result of this under-slung design is a trailer that rides a bit lower for quick and easy loading and unloading.
Applications:
Cargo Trailer, Lowboy trailer, utility trailer, boat trailer, bbq pit trailer, horse trailer, cattle trailer, dump trailer, car hauler, custom trailer and more.
Trailer Axle is available for pick up in Huntsville Texas at Trailer Parts Unlimited's store,
or we can ship the trailer axle right to your door. Items usually ship out 1 - 3 days after paid for.
For Wholesale prices, manufactures discounts and general inquires please contact Trailer Parts Unlimited via phone or email.
