Product Description

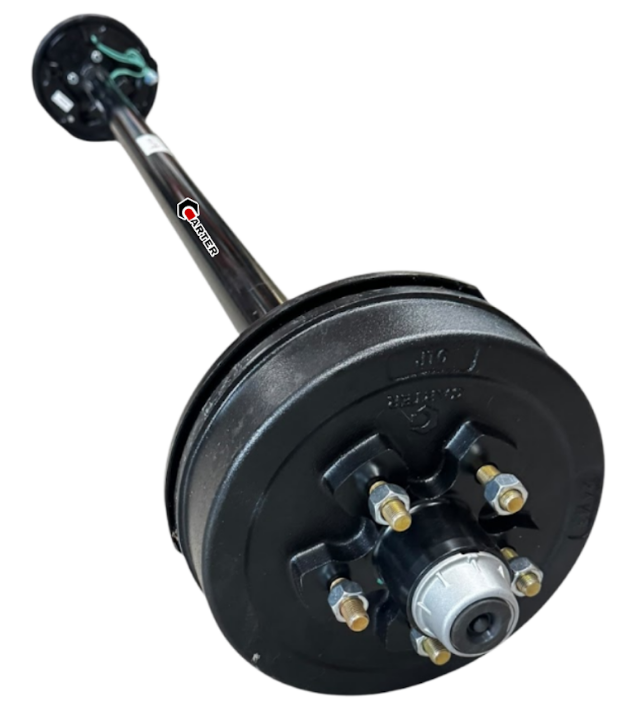

3500 lb Carter Electric Brake Trailer Axle Kit – Fully Assembled ready to Install and Optional U-Bolt Kit
This 3500 lb single axle kit is ready to install and built for light-duty trailers. Featuring a Carter brand axle, this kit comes fully assembled with EZ Fast Lube spindles, pre-greased 5 lug hub drums, auto Adjusting Electric Brakes, and upgraded aluminum grease caps that won’t deform. Ideal for utility trailers, small equipment haulers, and DIY trailer builds.
Kit Features
-
Capacity: 3500 lb
-
Axle Brand: Carter
-
Stud Size: 1/2 inch
-
Hub drum: 5 lug Hub Drums – available in 5 on 4.5 or 5 on 5 bolt pattern
-
Brakes: 10” x 2-¼” Auto Adjusting
-
Spindles: #84, 1-1/16 inch diameter
-
Axle Tube: 2-3/8 inch outside diameter, 0.19 inch wall thickness
-
Suspension Type: Leaf spring, under-slung
-
Spring Pads: Welded or loose (custom placement available)
-
Brake Flange: 4-bolt welded to axle
-
Fully pre-greased and ready to install
-
Powder Coated
-
Pre Wired for convenience (to streamline install)
-
EZ Fast Lube Grease Zerks in spindles
-
3-Year Limited Warranty
Optional Add-On: 2-3/8 Inch U-Bolt Kit
Add a matching U-bolt kit to complete your install. This kit includes 4 U-bolts, 2 tie plates, and 8 nuts—everything needed to secure one axle to your trailer springs.
Bearing and Seal Specs
-
Inner Bearing: L68149
-
Outer Bearing: L44649
-
Inner Race: L68111
-
Outer Race: L44610
-
Seal: 10-19 (1.719 in ID, 2.565 in OD)
-
Grease Cap: 1.98 in OD aluminum cap with rubber plug
Installation Notes
-

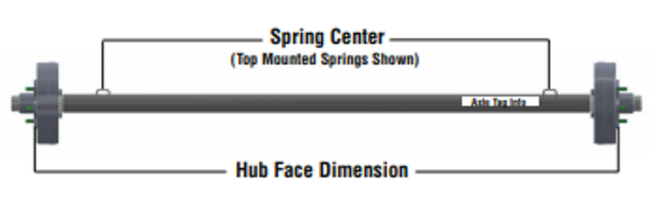

Hub face and spring center measurements can be selected to fit your trailer
-
Bolt pattern can be confirmed using center-to-center measurement:
-
2-5/8 inch = 5 on 4.5
-
3 inch = 5 on 5
Pickup or Shipping
-
Trailer Parts Unlimited – 631 TX 75 N, Huntsville TX 77320 (Exit 118 off I-45)
Nationwide freight and parcel shipping available
