Product Description
12K Hydraulic Hub Rotor Kit Complete – Fits Dexter & Carter Axles – Includes Bearings, Seal, Rotor, Hub, Oil Cap, Studs & Nuts
This complete 12K hydraulic hub rotor kit (part# 8-214-8HDC) is designed for Dexter and Carter trailer axles with 12,000 lb hydraulic disc brakes. It comes with everything you need to replace or build out one wheel position — hub, rotor, bearings, seal, hardware, and upgraded aluminum oil cap.

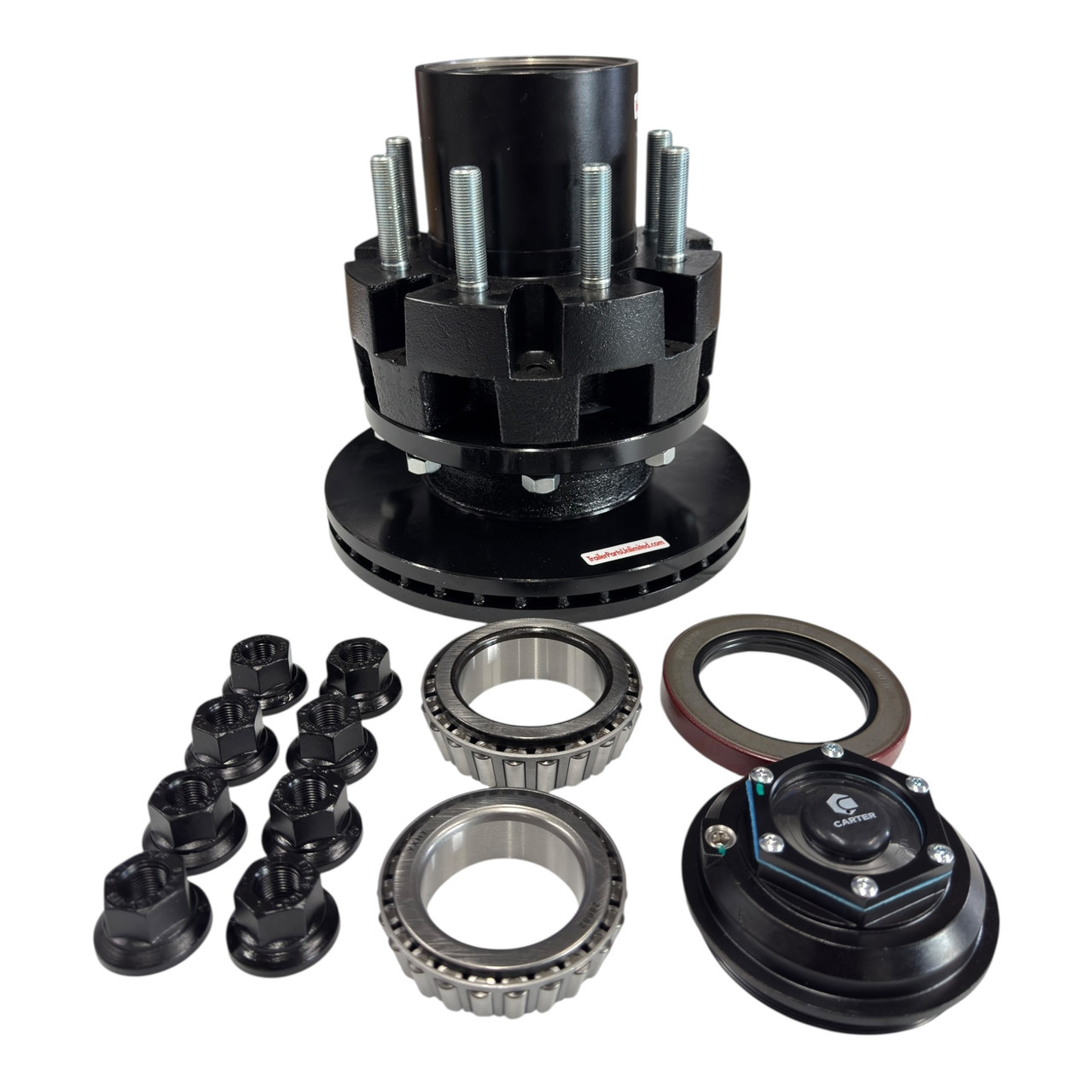

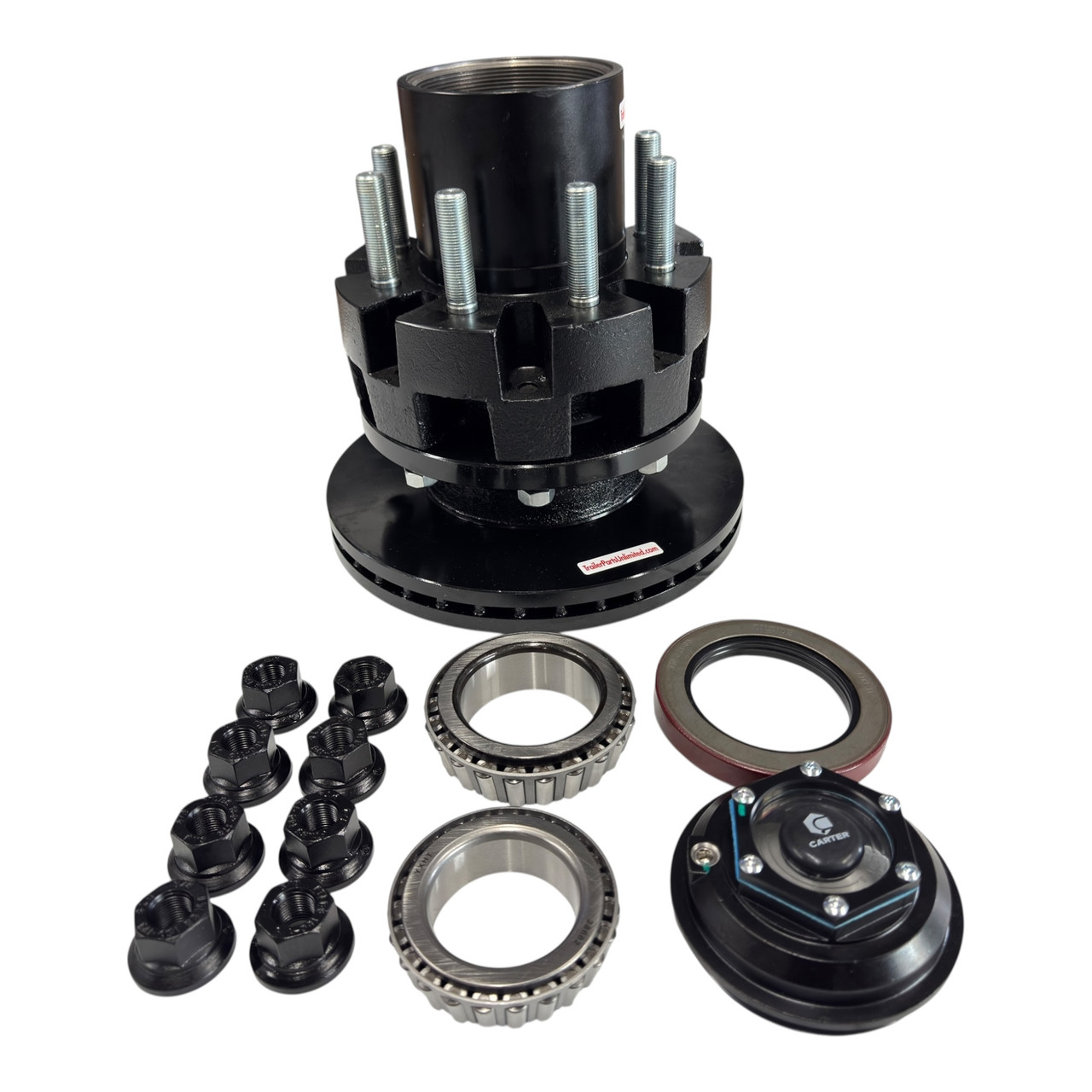

What’s Included:
-

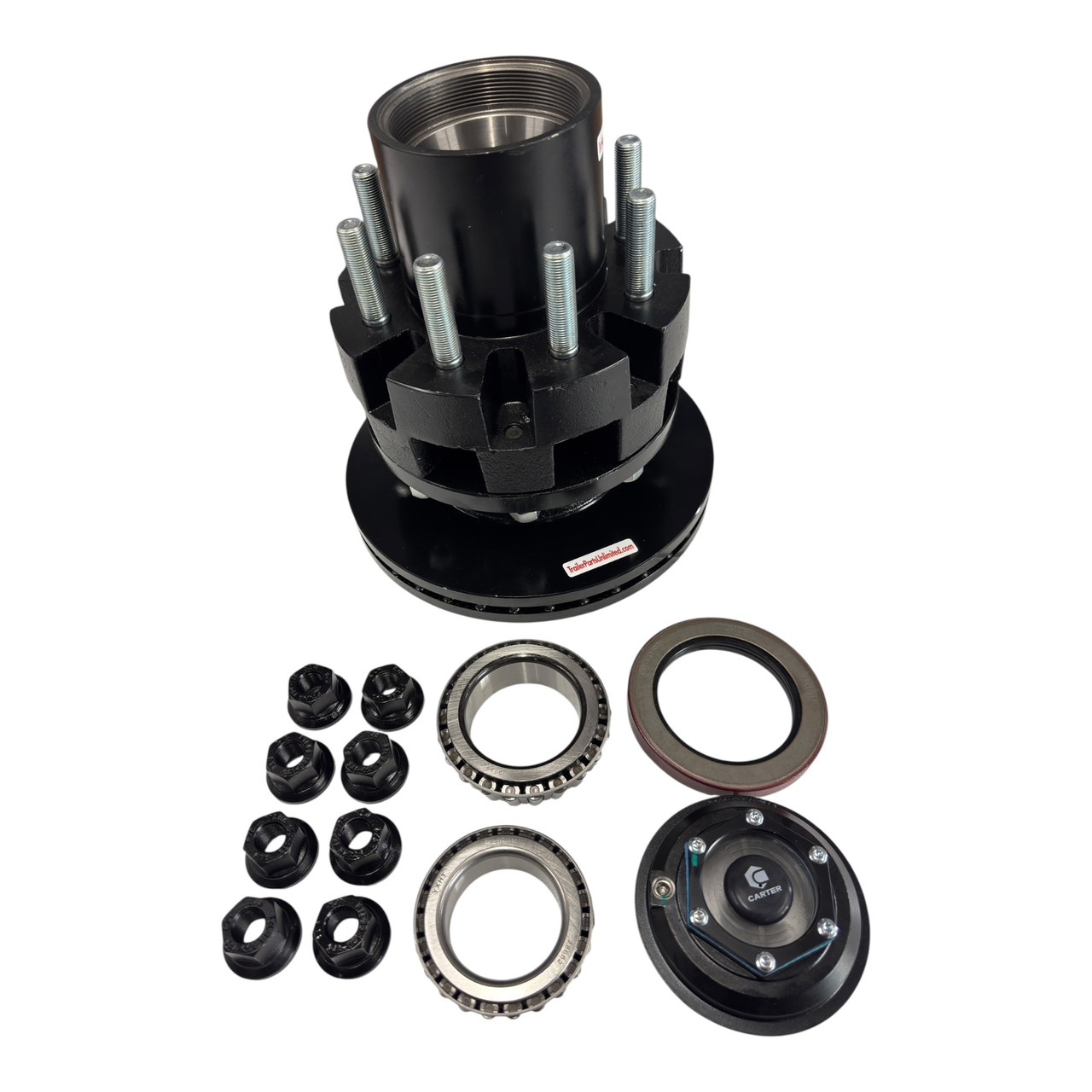

(1) KC07-006-01 – 12K hydraulic disc brake rotor (Dexter / Carter interchange)
-
(1) KC8-214-8 – 12K trailer hub with 8×6.5" bolt pattern (races pressed in)
-

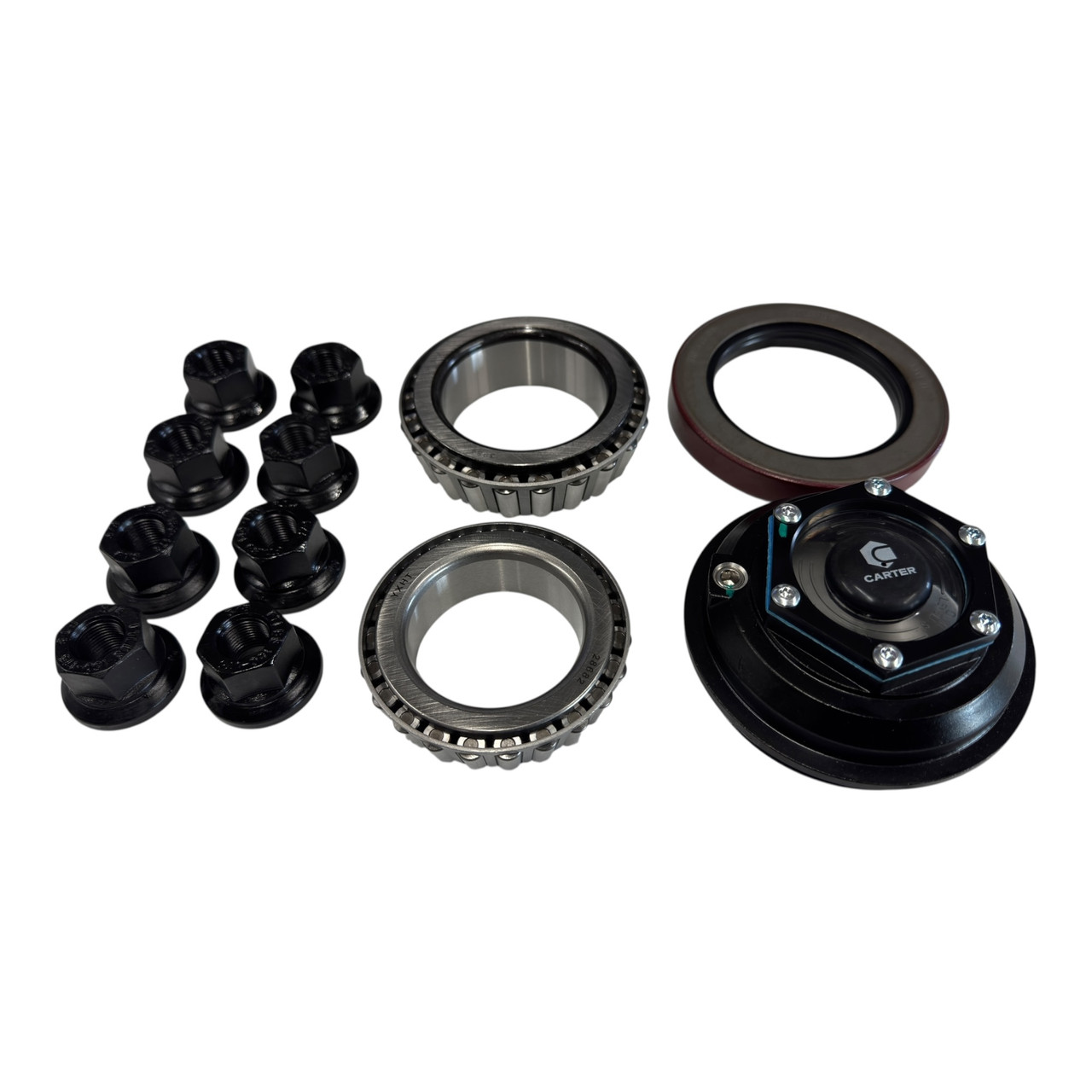

(1) 28682 – Outer bearing
-
(1) 3984 – Inner bearing
-
(1) KC21-305 – Heavy-duty 4" aluminum oil cap
-
(1) 10-56 – Oil/grease seal
-
(8) SFN-5/8 – 5/8" swivel flange nuts
-
(8) 25-14 – 1/2"-13 × 1/2"-20 double-ended rotor mounting studs
-
(8) 6-46 – 1/2"-20 nuts for rotor mounting studs
Cross Reference Numbers:
-
Hub: KC8-214-8 (Dexter 008-214-08, Redneck 8-214 equivalent)
-
Rotor: KC07-006-01 (Dexter 070-006-01 equivalent)
-
Bearings: 28682 (outer), 3984 (inner) – standard 12K hub interchange
-
Seal: 10-56 (Dexter 010-056-00, National 370150A cross)
-
Oil Cap: KC21-305 (Dexter 021-305-00, Valcrum VC-400 cross)
-
Studs/Nuts: 25-14 (Dexter 025-014-00 / Redneck 25-14 / TBAD568) + 6-46 (Dexter 006-046-00 / TBAD569)
This kit is a direct replacement for Dexter and Carter 12K hydraulic disc brake hubs and rotors. Everything is included for one wheel-end service.
Key Features
-
Complete kit for one 12K hydraulic disc brake wheel end
-
Fits Dexter & Carter 12K axles with 8×6.5" hubs
-
Includes hub, rotor, bearings, seal, aluminum oil cap, studs, nuts, and flange nuts
Studs and nuts included for mounting the rotor to the hub
