Product Description
Enhance Your Trailer with the 7K Tandem Trailer Brake Axle Kit – 8 Lug Slipper Springs
Looking to upgrade your trailer for better performance and durability? The 7K Tandem Trailer Brake Axle Kit from Trailer Parts Unlimited is your solution. Designed for heavy-duty use, this kit features 8 lug hubs, Slipper springs, and electric brakes, ensuring a smooth and stable ride for your trailer.
This kit includes everything you need for a complete axle replacement:
-
(2) 7,000 lb Electric Brake Trailer Axles 8 lug
-
(4) 5 leaf Slipper Springs | 27” Long x 2” Wide | Part # TPU-232
-
(2) U-Bolt Kits
-
(1) Tandem Hanger Kit (optional)
Key Features:
-
7,000 lb Axle Capacity: This heavy-duty axle can handle substantial loads, making it perfect for various trailer applications.made with a extra heavy duty â ” thick axle tube and 9/16” studs while most other axle manufactures only use ½” studs with a .19” wall thickness. Also all carter axles come standard with auto adjusting brakes while industry standard is manual adjust
-
8 Lug Hubs: Provides enhanced stability and strength, suitable for demanding tasks.
-
Slipper Springs: Offers superior suspension, ensuring a smooth and balanced ride.
-
Auto Adjusting Electric Brakes: Ensures reliable stopping power, increasing safety and control with no need to manually adjust
-
Dexter & Lippert Compatible: Fully compatible with Dexter, Lippert, and Carter components for easy replacement and upgrades.
-
Easy Installation: Comes with pre-assembled components for a hassle-free DIY installation.
-
Super Heavy Duty Axle Tube: Carter Axles Are Made With a â ” Thick Tube
Axle Specs & Features:
Axle Brand: Carter
Capacity per Axle: 7,000 lbs
Axle hub Drum - 8 Lug on 6.5" bolt pattern
Brakes: 12” x 2” Auto Adjusting Electric Brake
Axle Beam - 3" Tube 3/8" wall thickness
Axle Hub Cap - Fast Lube Grease (EZ-Lube)
Axle Studs - 9/16"
Replaces Dexter, AL-KO, Hayes,Lippert Axles, and Just about any other brand axle.
Axles come fully assembled
Axles are pre-wired in the axle tube.
packed with High-Temp Axle Grease.
Fast Lube / EZ-Lube Design.
Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.
Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs)
Or purchase without the spring pads welded on so you can weld them where needed.
Powder coated black.

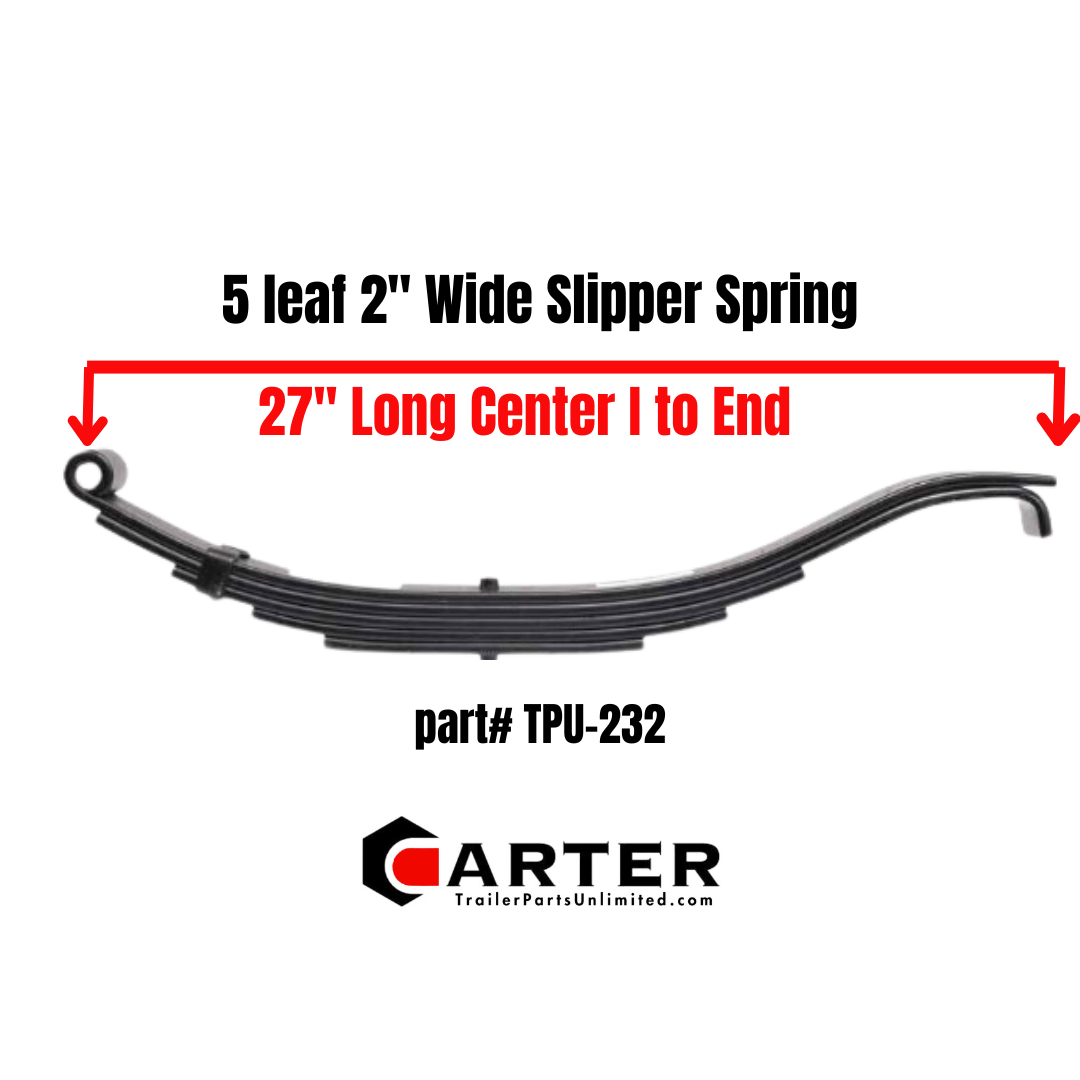

Slipper Spring Specifications:
Part # TPU-232
5 Leaf 2" Wide Slipper Spring 3.8k Cap. 27" eye to end
Measures 2" wide and 27" long from eye to end.
Spring Type: slipper leaf spring
Capacity per spring: 3,800 lbs
Leaves: 5
Eye Bushing Inner Dimension: 9/16"
Spring Eye size: 9/16"
3" U-Bolt kit Includes:
(4) 9/16"-18 x 7-1/4" L 3" Tube U-bolts.
(8) 9/16"-18 U-bolt nuts.
(2) Tie Plates for 3" Wide Axle Tubing u bolts.
This Kit is all the u-bolts and hardware for one complete axle.
Tandem Hanger Kit
Includes the following:
(2) 3" Wide front hangers.
(2) 3" Wide Rear Hangers.
(2) 3" wide center hangers.
(2) Equalizers 12" Long for slipper springs.
(8) 9/16" x 3-1/2" shackle bolts with 7/16"-20 threads.
(8) 9/16"-20 Flange Nuts
(2) 7/8" x 4-11/16" equalizer bolts.
(2) 7/8" equalizer Bolt Nuts.
How to properly measure your axle:
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.
Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about a 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)
