Product Description
This is the perfect kit if you are upgrading from 3.5k axles or axles with double eye leaf springs. This kit also comes with the double eye leaf springs allowing you to easily bolt up these right to your existing trailer hangers without having to cut and weld all new hangers on. The easy way to upgrade your axles on your trailer right here!
Upgrade your axles, replace damaged axles, or build a trailer with this 14,000 lbs. Tandem Axle Tire Wheel trailer kit. This kit comes with all the necessary hardware to install both axles on your trailer and get you on the road. Kit also includes a set of (4) Trailer Tire and Wheel Combos of your Choice.
This 14k Tandem Axle Trailer Kit Includes:
(2) 7000 lbs Electric Brake Trailer Axles | 8 lug 6.5"
(4) 6 Leaf Double Eye Springs 25-¼” long
(2) 3" u bolt kits
(1) tandem hanger kit for Double eye springs
(4) Trailer Tire Wheel Combos of Your Choice
Custom Spring Pad Placement
We can weld spring pads in a custom location for an additional charge.
If you need spring pads welded in a custom location that is not listed in the available options and to specify where you need spring seats welded:
Click below:
Weld my spring pad seats on for me!
Axle Components & Specs:
Axle Inner Bearing – 25580
Axle Inner Race – 25520
Axle Outer Bearing - 14125A
Axle Outer Race - 14276
Axle Hub Drum - 8 lug 6.5" bolt pattern
Axle Beam - 3” Round tube 1⁄4” wall Thickness.
Axle Hub Cap - #KC21-43A: HD Forged Aluminum EZ Fast Lube Grease
Axle Studs - #23D25: 9/16-18 trailer studs
Axle Brakes - 12” x 2” Electric
Replaces Dexter, AL-KO, Hayes,Lippert Axles, and Just about any other brand axle.
Trailer Axle Specifications:
-
Axles come fully assembled
-
8 lug on 6.5" bolt pattern.
-
Self Adjusting Electric Brakes on Both Axles
-
5 hole brake flange welded on axle
-
Axles are pre-wired in the axle tube.
-
Packed with High-Temp Axle Grease.
-
EZ Fast-Lube Design.
-
Zerk fitting on spindle use rubber plug on the hub cap to grease bearings simply.
-
Grease your axle without pulling off your whole entire hub.
-
Powder coated black.
-
Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle,
-
BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More.
-
Axles come fully assembled ready to install on your trailer.

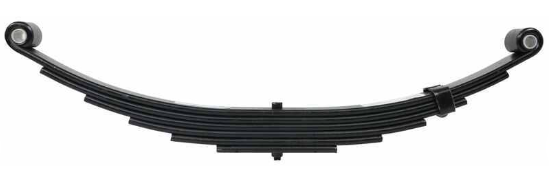

Includes (4) #TPU-223: 6 Leaf , 25.25” long eye to eye.

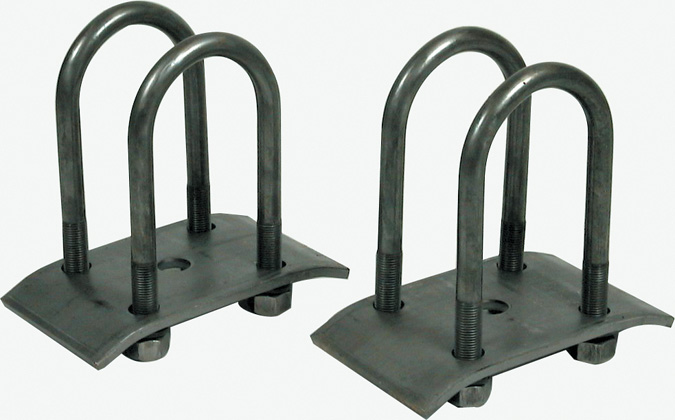

3" Axle Tube U-bolt Kit for 5,200 - 7,000 lb Trailer Axles
kit includes:
(4) 9/16"-20 x 7" L 3" Tube U-bolts
(8) 1/2"-20 U-bolt nuts
(2) Tie Plates for 3" Wide Axle Tubing u bolts
(This Kit is all the u-bolts and hardware for one complete axle)
Includes the following:

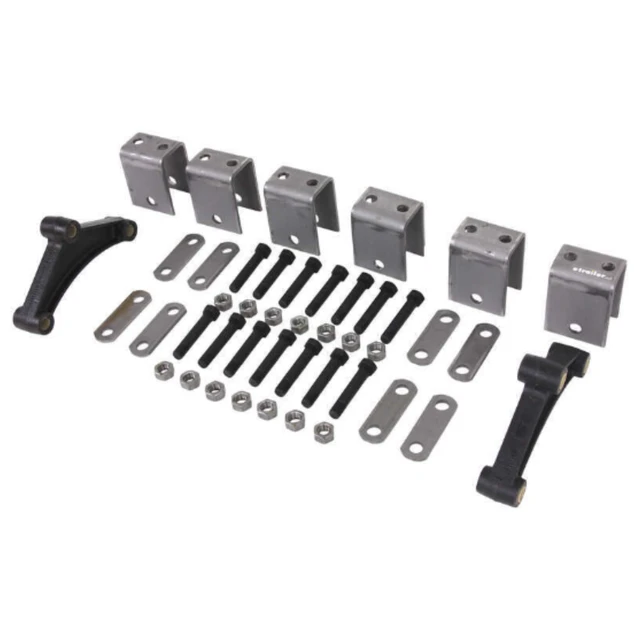

Kit includes
6 Hangers
2 Equalizers
8 Shackle straps
14 Shackle bolts
14 Locknuts
Specs:
Clearance between trailer frame and axle (depending on axle size): 4-1/2" to 5"
Hanger height (from center of hole to top of hanger): 3-1/4"
Equalizer length: 7-3/4" from center of bolt hole to center of center of bolt hole
Shackle strap length (from center of hole to center of hole): 2-5/8"
Shackle bolt dimensions: 3" long x 9/16" diameter

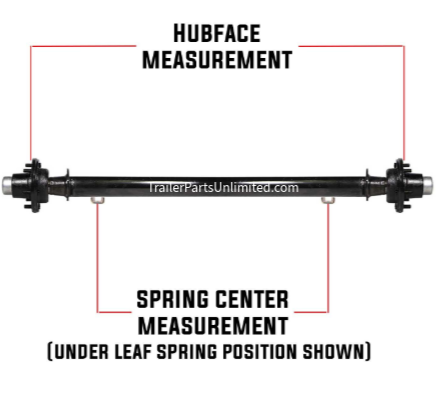

How to properly measure your axle:
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.

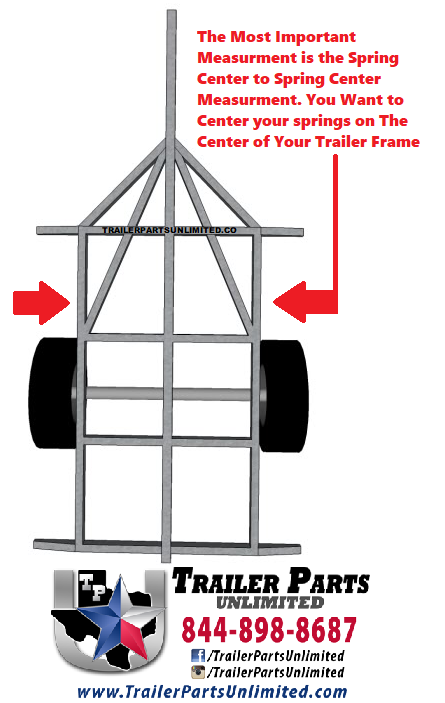

Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)
