Product Description

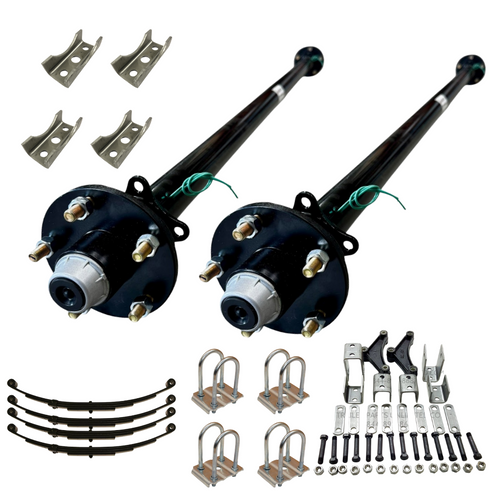

Kit includes:
-
(2) 3.5k idler axle with 5 lug hubs
-
(4) 15” Trailer Tire Wheel combos
-
(4) 4 leaf double eye springs
-
(2) U bolt kit
-
(1) Optional Tandem axle hanger kit
Everything you need to install axles to trailer and get you on the road
Kit Features
-
Capacity: 3500 lb
-
Axle Brand: Carter
-
Stud Size: 1/2 inch
-
Hubs: 5 lug idler hubs – available in 5 on 4.5 or 5 on 5 bolt pattern
-
Brakes: none
-
Spindles: #84, 1-1/16 inch diameter
-
Axle Tube: 2-3/8 inch outside diameter, 0.19 inch wall thickness
-
Suspension Type: Leaf spring
-
Spring Pads: Welded or loose (custom placement available)
-
Brake Flange: 4-bolt welded to axle
-
Fully pre-greased and ready to install
-
Powder Coated
-
Pre Wired for convenience (to streamline install)
-
EZ Fast Lube Grease Zerks in spindles
-
3-Year Limited Warranty
Bearing and Seal Specs
-
Inner Bearing: L68149
-
Outer Bearing: L44649
-
Inner Race: L68111
-
Outer Race: L44610
-
Seal: 10-19 (1.719 in ID, 2.565 in OD)
-
Grease Cap: 1.98 in OD aluminum cap with rubber plug
Trailer Tire Options
-
ST205/75R15 8-Ply Radial Trailer Tires
-
ST225/75R15 10-Ply Radial Trailer Tires
-
ST225/75R15 14-Ply All Steel Trailer Tires
Wheel Style Options
-
Silver Mod Wheels
-
Black Mod Wheels
Note: Tires and wheels come pre mounted ready to install on trailer
2-3/8 Inch U-Bolt Kit
Includes (2) U bolt kits (one per axle)
Each kit consists of:
4 U-bolts, 2 tie plates, and 8 nuts.
Leaf Spring Specs:
Includes (4)
4 leaf double eye springs 25-¼” from center eye to eye
Hanger kit Specs:
Includes
(4) 2" Tall end hangers 2" eye to eye
(2) 3-1/4" Tall Center Hangers 3.25" center
(8) 3-1/8" Shackle Links 3.125" center to center
(2) E-1 Equalizers
(14) Shackle Bolts 9/16"-18
(14) Shackle Nuts locking
Installation Notes
Hub face and spring center measurements can be selected to fit your trailer
