Product Description

Tandem Trailer Axle Kit with Two 6000 lb Electric Brake Axles and Suspension Components

Build a new trailer, replace damaged axles, or upgrade your existing trailer with this complete tandem trailer axle kit. This package includes two fully assembled 6000 lb electric brake trailer axles, double eye leaf springs, U-bolt kits, and an optional tandem hanger kit.

Everything needed to install a complete tandem trailer suspension system is included in this kit.

Each axle comes fully assembled with self-adjusting electric brakes, EZ Fast Lube spindles, pre-greased bearings, upgraded forged aluminum grease caps, and pre-wired axle tubing for quick and easy brake installation.

Compatible with Dexter, Lippert, AL-KO, Hayes, Rockwell American, Carter, and most other trailer axle brands.

Kit Includes

• (2) 6000 lb Electric Brake Trailer Axles 6 LUG

• (4) 6 Leaf Double Eye Leaf Springs 25-1/4 Inch Long

• (2) 3 Inch U-Bolt Kits

• (1) Tandem Axle Hanger Kit (Optional)

Combined axle capacity is 12,000 lbs when properly installed.

Axle Specifications

• Capacity Per Axle: 6000 lbs

• Hub Type: 6 Lug Hub and Drum

• Bolt Pattern: 6 on 5.5

• Brake Type: Self Adjusting 12 Inch x 2 Inch Electric Brakes

• Brake Flange: 5 Bolt Brake Flange

• Axle Tube Pre-Wired for Easy Brake Installation

• Axle Tube Diameter: 3 Inch

• Axle Tube Wall Thickness: 1/4 Inch

• Stud Size: 1/2 Inch

• EZ Fast Lube Spindles

• Upgraded Aluminum Forged EZ Fast Lube Grease Caps with Rubber Plug

• Packed with High Temperature Grease

• Fully Assembled Ready to Install

• Powder Coated Black Finish

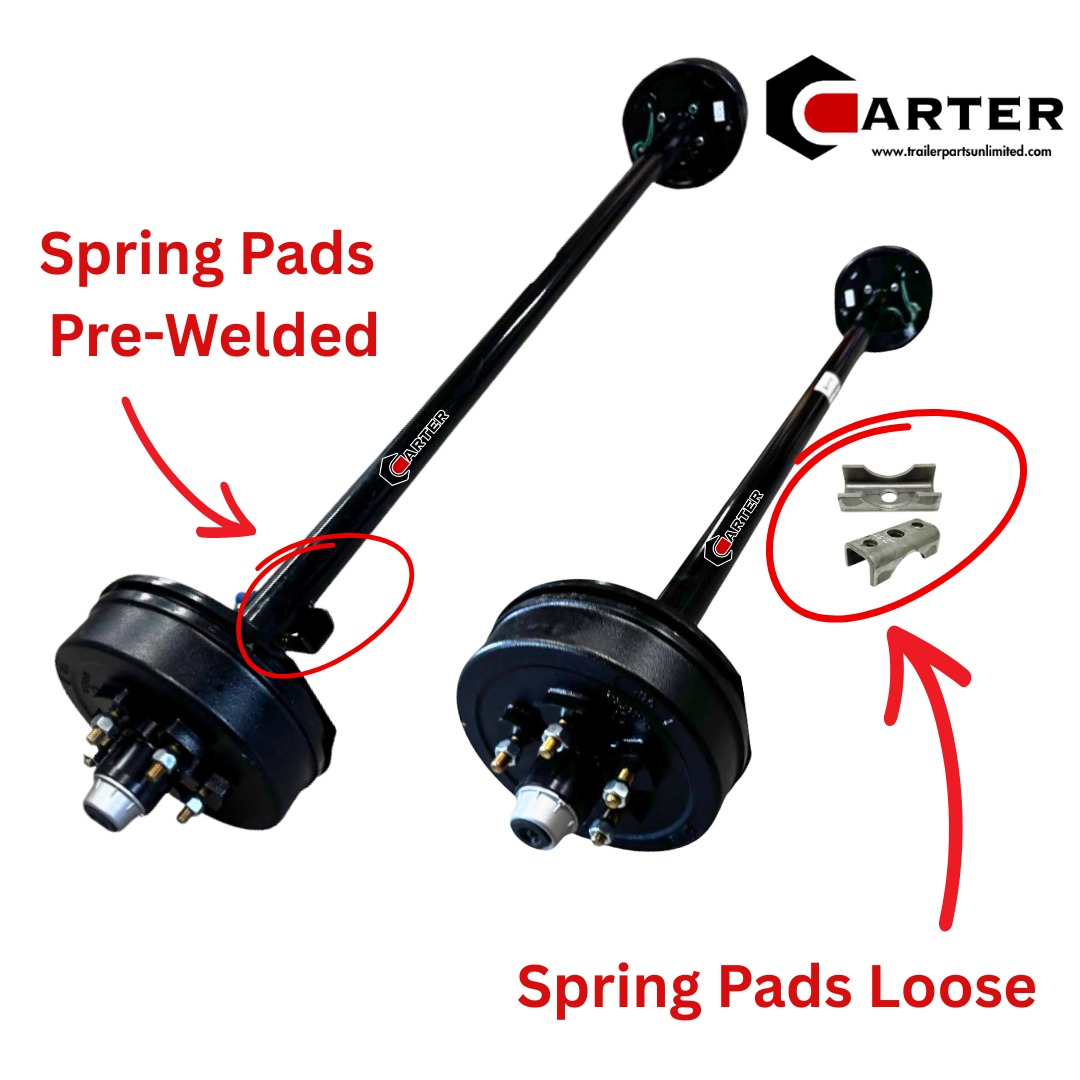

Spring Pad Options

Choose the spring pad option that best fits your trailer build.

Spring Pads Welded On Axle

When spring pads are welded on the axle, the axle will be built in an underslung configuration where the springs mount underneath the axle and the axle sits on top of the springs.

Spring Pads Shipped Loose

Choose loose spring pads if you want maximum flexibility. Loose spring pads allow you to weld the spring seats where needed for either:

• Underslung Configuration

• Overslung Configuration

Custom Spring Pad Placement

We can weld spring pads in a custom location for an additional charge.

If you need spring pads welded in a custom location that is not listed in the available options, simply enter your desired spring center measurement and spring pad placement in the order notes during checkout. We will review your order and contact you to confirm all measurements before building your axle.

Axle Features

• Hubs and Brake Assemblies Installed and Pre-Greased

• Heavy Duty Steel Construction

• 5 Bolt Brake Flanges

• Self Adjusting Electric Brake Assemblies

• Axle Tube Pre-Wired for Easy Brake Installation

• EZ Fast Lube Spindle Design

• Grease Zerk Fitting Built Into The Spindle For Easy Bearing Maintenance

• Rubber Plug Hub Cap Allows Quick Access To The Grease Fitting

• Compatible with Dexter, Lippert, AL-KO, Hayes, Rockwell American, Carter and Most Other Trailer Axle Brands

• Designed for Long Service Life and Dependable Towing

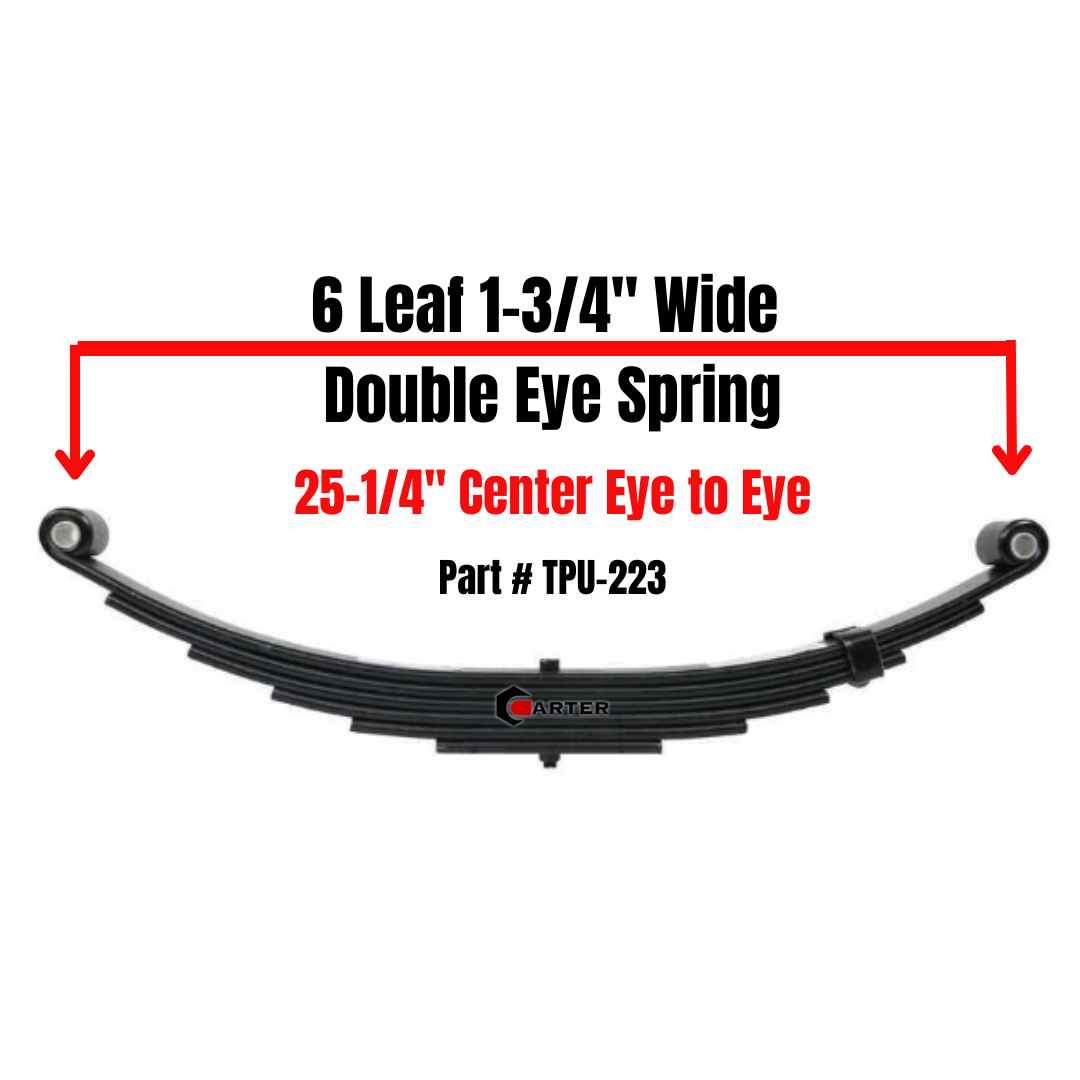

Double Eye Spring Specifications

• Spring Type: Double Eye Leaf Spring

• Capacity Per Spring: 3500 lbs

• Number of Leaves: 6

• Length Eye to Eye: 25.25 Inches

• Width: 1.75 Inches

• Eye Diameter: 9/16 Inch

• Arch Height: 3 Inches to 3.25 Inches

Tandem Hanger Kit Specifications

Trailer Double Eye Tandem Hanger Kit for 3500 lb to 7000 lb Axles

Designed for 1.75 Inch Wide Double Eye Springs

Kit Includes:

• (6) 3.25 Inch Tall Hangers (4 Inch Overall Height)

• (8) 2.625 Inch Shackle Links

• (2) 7.75 Inch E1 Equalizers

• (14) 9/16-18 Spring Shackle Bolts

• (14) Locking Shackle Nuts

3 Inch U-Bolt Kit Specifications

Each U-Bolt Kit Includes:

• (4) 9/16-18 x 7 Inch U-Bolts

• (8) 9/16-18 U-Bolt Nuts

• (2) Tie Plates for 3 Inch Axle Tubing

One U-Bolt Kit contains all hardware required for one complete axle.

Common Applications

• Utility Trailers

• Equipment Trailers

• Boat Trailers

• Cargo Trailers

• Enclosed Trailers

• Landscape Trailers

• Car Haulers

• ATV Trailers

• Motorcycle Trailers

• RV Trailers

• BBQ Pit Trailers

How to Measure Your Trailer Axles

Hub Face Measurement

Measure from the face of one hub where the wheel studs protrude to the face of the hub on the opposite side.

Spring Center Measurement

Measure from the center of one spring seat to the center of the spring seat on the opposite side.

Most trailer axles have approximately 15 inches difference between the Hub Face measurement and the Spring Center measurement, approximately 7-1/2 inches per side.

Shipping Information

This item ships on a pallet using a common freight carrier.

To calculate shipping:

1. Add the items to your cart.

2. Click the shopping cart icon.

3. Select Shipping.

4. Enter your zip code and state.

5. Click Calculate.

Shipping charges will be displayed before checkout.
