Product Description

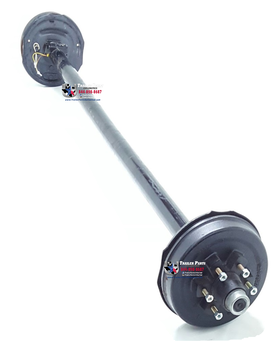

6K-KIT04 – 6000 lb Trailer Axle Kit with 6 Lug Hubs and Electric Brakes
The 6K-KIT04 trailer axle kit is built for heavy-duty utility trailers, equipment haulers, cargo trailers, and custom trailer builds. This fully assembled 6000 lb axle comes with 12x2 self adjusting electric brakes, 6 lug hub drums, Fast Lube grease system, and a high-strength cambered axle tube designed for long tire life and dependable towing performance.
This axle is commonly used as a replacement for Dexter, AL-KO, Lippert, Hayes, and Rockwell American trailer axles.
Options:
Get the 6k Brake Trailer Axle By Itself or Choose to add u bolt kit, springs and even a trailer axle hanger kit to!
Axle Specifications
-
Capacity: 6000 lbs
-
Bolt Pattern: 6 on 5.5
-
Brake Size: 12 inch x 2 inch Self Adjusting electric brakes
-
Axle Tube: 3 inch diameter
-
Pre Wired Axle Tube
-
Tube Thickness: 1/4 inch wall
-
Stud Size: 1/2 inch
-
Lubrication: Fast Lube EZ grease spindle system
-
Grease Cap: Upgrade Forged Aluminum Grease Caps Rubber plug style EZ grease cap
-
Suspension Type: Double eye leaf spring compatible and/or slipper springs
-
Underslung axle design (or get pads loose to weld them where you want)
-
Powder coated black finish
-
Axles are fully assembled and pre greased
-
Brake assemblies are pre wired through axle tube
Features
-
Replaces Dexter AL-KO Hayes Lippert and Rockwell American trailer axles
-
Fast Lube spindle design allows greasing bearings without removing hubs
-
Heavy-duty steel construction for hauling under load
-
Spring seats welded on bottom of axle for underslung setup or choose to get them loose where you can weld them where you want. (we can also weld spring pads for you where you need for an additional charge)
-
Powder coated finish helps resist corrosion
-
Ships fully assembled ready to install

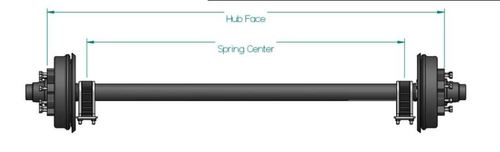

Measuring Your Axle
Hub Face Measurement
Measure from the face of one hub where the wheel studs protrude to the opposite hub face.

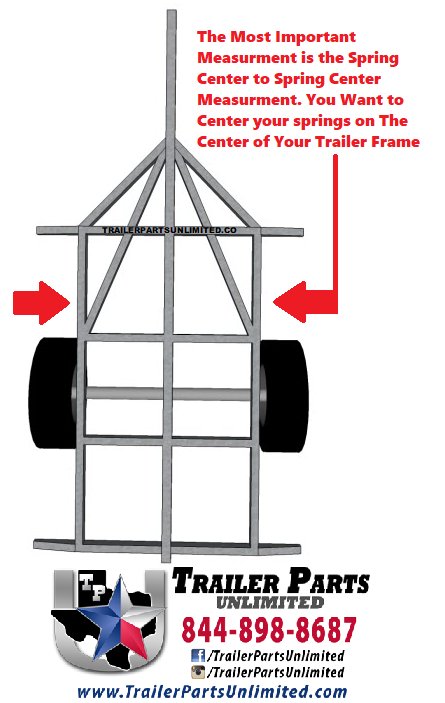

Spring Center Measurement
Measure from the center of one spring seat to the center of the other spring seat.
Typically there is approximately a 15 inch difference between hub face and spring center measurements. (or 7-½ per side)
Shipping Information
This axle ships on a pallet using a common freight carrier.
To calculate shipping:
-
Add items to your cart
-
Click the cart icon
-
Select shipping
-
Enter your zip code and state
-
Press calculate
Shipping charges will display before checkout.
Bulk order discounts and manufacturer pricing available.
Pickup and Shipping
Trailer Parts Unlimited
631 TX 75 N
Huntsville TX 77320
Nationwide freight shipping available.
