Product Description
HOW TO CALCULATE SHIPPING
-
Add the item to your cart
-
Click the shopping cart icon
-
Scroll to the section labeled Shipping
-
Enter your zip code and state
-
Click Calculate
You’ll see exact shipping cost before checkout.
No hidden surprises.
KIT INCLUDES
(1) 6,000 lb Idler Trailer Axle – 6 Lug
(2) 6 Leaf Double Eye Springs – 1-3/4" Wide
(1) 3" U-Bolt Kit (Complete for One Axle)
(1) Single Axle Hanger Kit
This is a true complete single axle suspension package.

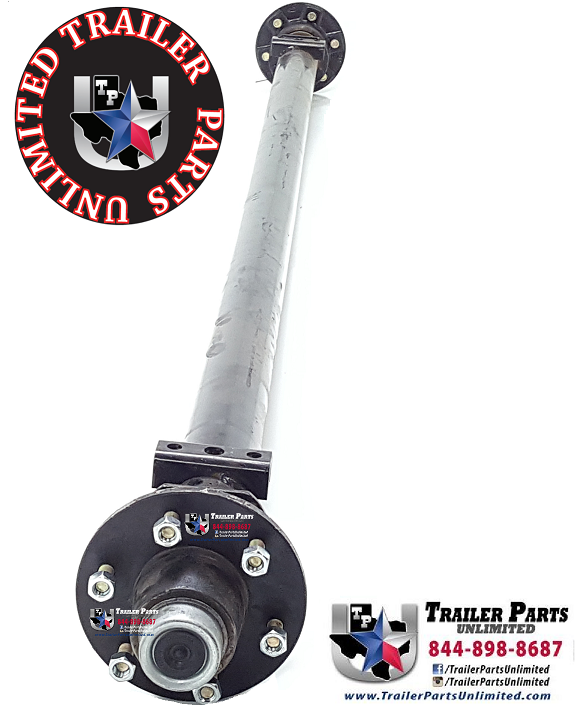

AXLE SPECS & FEATURES
6,000 lb Trailer Axle
• 6 Lug – 5.5" bolt pattern
• Idler hubs (No brakes)
• 5-bolt brake flange welded on axle
• Pre-wired axle tube for future brake installation
• 3" round axle tube
• 1/4" wall thickness
• Fast Lube grease system
• Upgraded grease caps
• 1/2" wheel studs
• Packed with high-temp axle grease
• Powder-coated black
• Fully assembled and ready to install
Want to add brakes later?
This axle already has the brake flange and pre-wiring installed.
FAST LUBE DESIGN
The Fast Lube spindle system allows you to grease bearings without removing the entire hub.
• Grease zerk built into spindle
• Rubber plug access through grease cap
• Easier maintenance
• Faster servicing
• Less downtime
BUILT TO REPLACE THE “BIG NAMES”
Direct replacement for:
Dexter Axles
Lippert Axles
AL-KO Axles
Rockwell American
Hayes Axles
Most standard trailer axles
Same fit. Better pricing. Heavy-duty construction.
BEARING & RACE SPECS
Inner Bearing – 25580
Outer Bearing – 15123
Inner Race – 25520
Outer Race – 15245

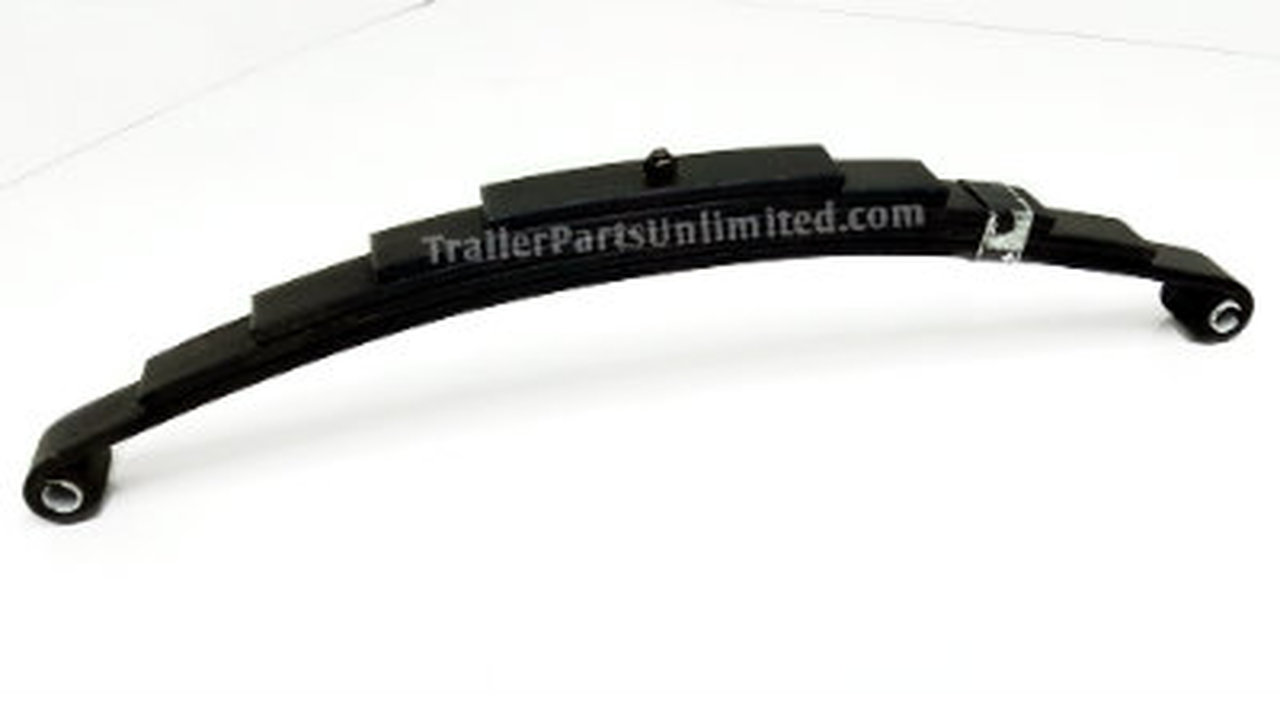

DOUBLE EYE SPRING SPECS
3900 lb Capacity Double Eye Leaf Springs
• 6 Leaf Design
• 25-1/4" Long Eye to Eye
• 1-3/4" Wide
• 9/16" Eye Diameter
• 3"–3.25" Arch Height
Spring Details
Spring Type: Double Eye
Capacity Per Spring: 3,900 lbs
Leaves: 6
Length: 25.25"
Width: 1.75"
Eye Size: 9/16"
Built to support heavy utility and cargo trailer loads.

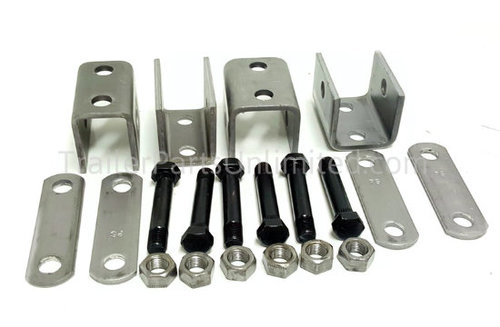

SINGLE AXLE HANGER KIT SPECS
Includes:
(2) 1.44" Tall Front Hangers
(2) 1.5" Tall Rear Hangers with Bushings
(4) 3-1/8" Shackle Links
(6) Shackle Bolts
(6) Lock Nuts
Includes all weld-on hangers and mounting hardware needed to install your springs correctly.

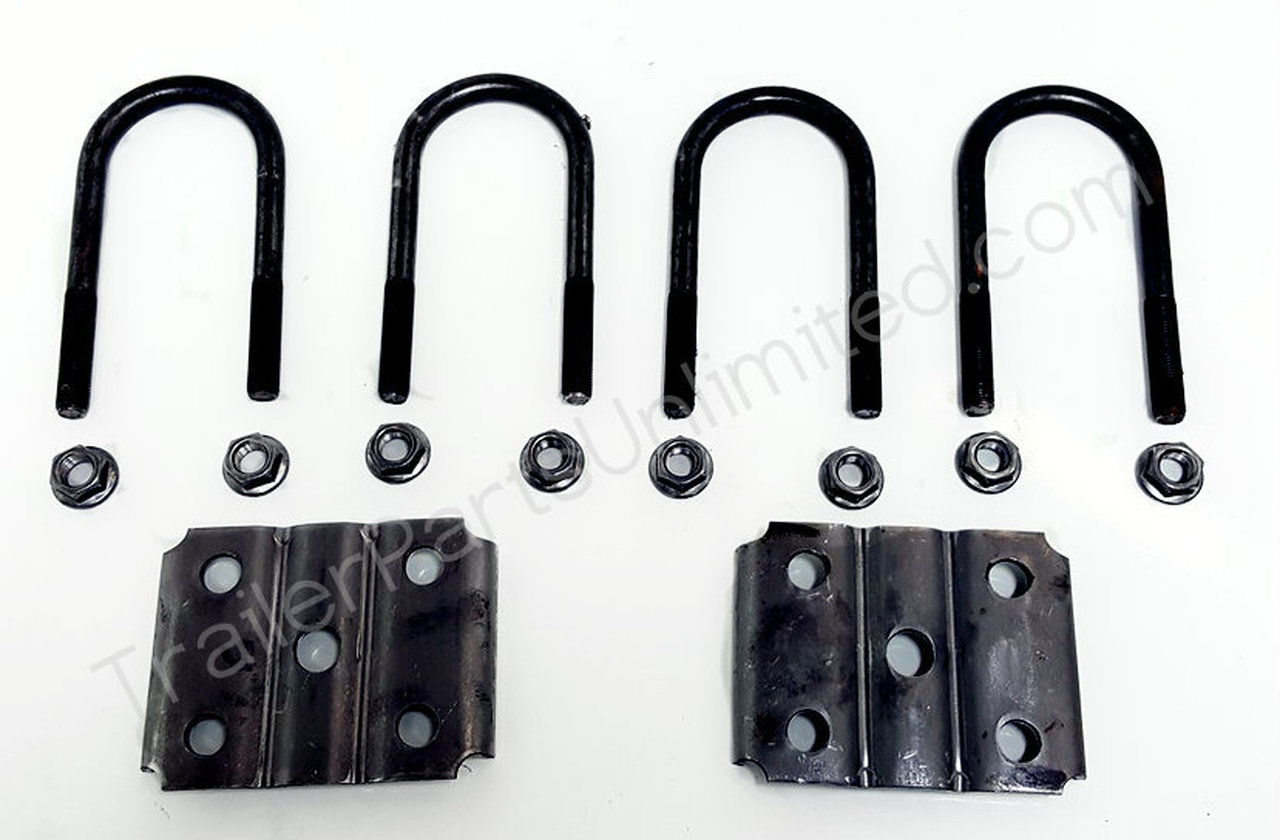

3" U-BOLT KIT SPECS
Includes:
(4) 9/16"-18 x 6.63" Long U-Bolts for 3" Axle Tube
(8) 9/16"-18 U-Bolt Nuts
(2) Tie Plates for 3" Axle Tubing
Complete hardware kit for one axle.
SPRING PAD OPTIONS (IMPORTANT)
We offer multiple spring pad options depending on your trailer setup.
Standard Welded Pads
We weld spring seats onto the axle based on your measurements.
“00” / Pads Loose Option
If you select the “00” or “Pads Loose” option, the spring pads will NOT be welded onto the axle.
? This allows you to weld them exactly where you want.
This is ideal for:
• Custom trailer builds
• Odd frame widths
• Builders doing their own fabrication
Need Custom Spring Pad Placement?
We can weld spring pads exactly where you need them for an additional charge.
Put your measurements in the order notes during checkout and our team will contact you.

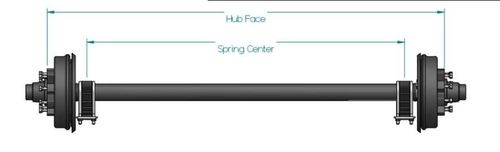

HOW TO PROPERLY MEASURE YOUR AXLE
Hub Face (HF)
Measure from one hub face to the other where the wheel studs stick out.

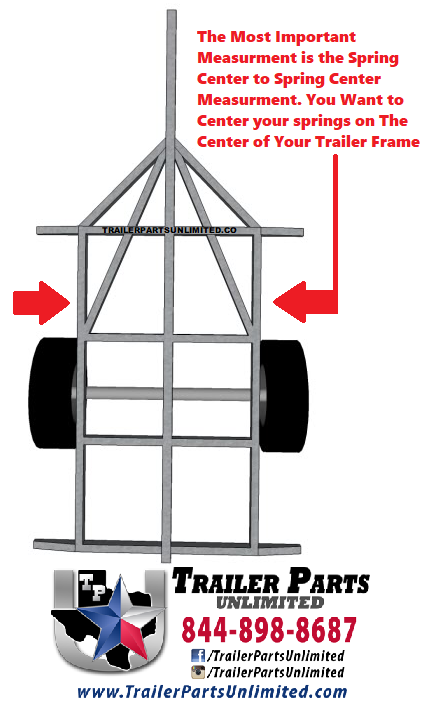

Spring Center (SC)
Measure from the center of one spring seat to the center of the other spring seat.
There is typically about a 15" difference between Hub Face and Spring Center
(Approximately 7-1/2" per side)
