Product Description
TPU5088 – 7-Way Trailer Plug Kit | 10' Cable | Transparent Junction Box | SAE Standard
The TPU5088 is a complete 7-way trailer plug wiring kit designed for quick, clean, and weather-resistant trailer wiring installations. This kit includes a pre-wired 10-foot 7-blade molded cable, a transparent junction box, color-coded wiring, and mounting hardware for a professional-grade install.
Key Features:
-
10-foot heavy-duty wire harness – jacketed 7-conductor cable with thick, weatherproof insulation
-

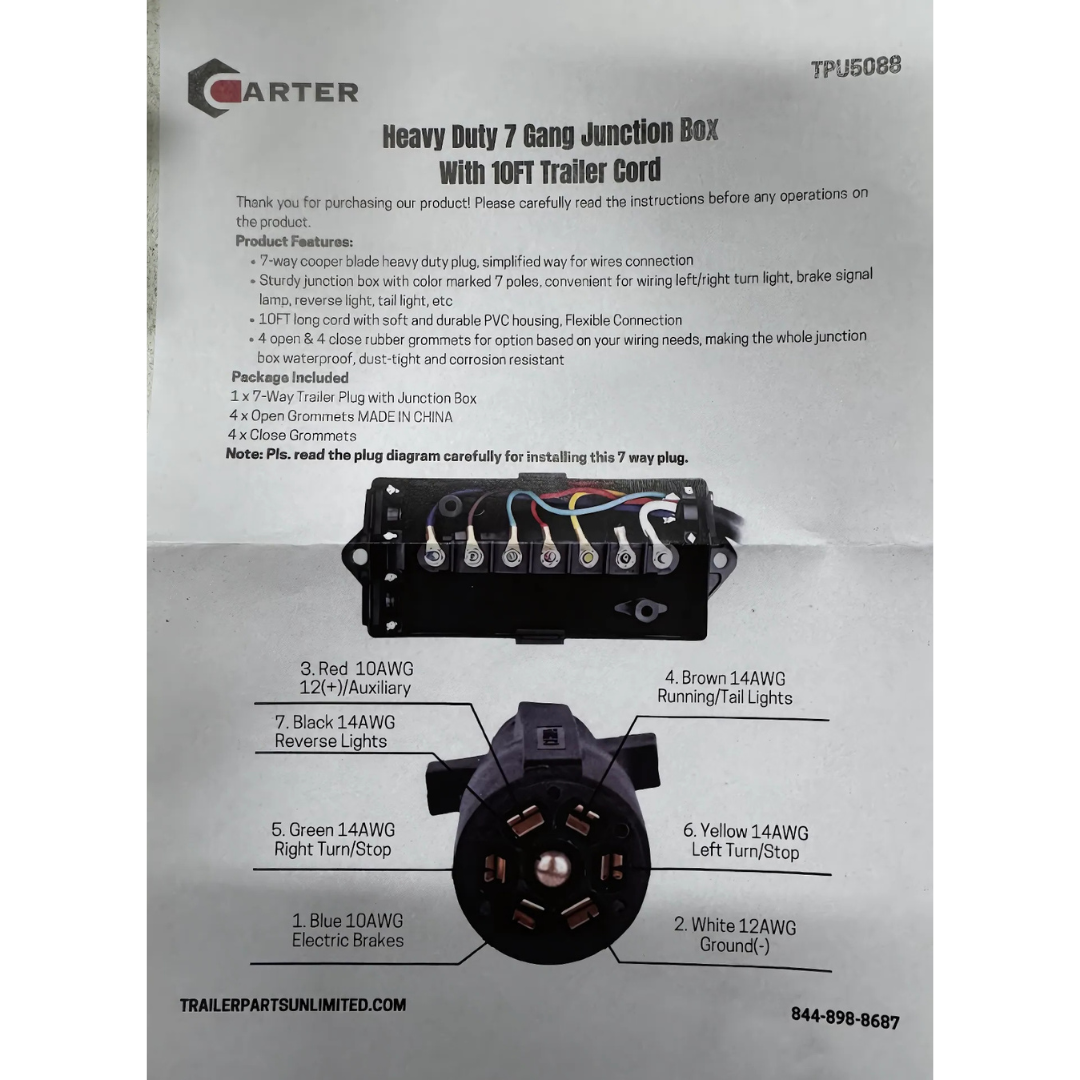

Standard SAE wiring color code – 7 color-coded wires for left/right turn, brake, tail, ground, reverse, electric brake, and battery
-
Heavy-duty molded 7-blade plug – copper blade terminals sealed into the head
-
Transparent ABS junction box – lets you visually inspect and monitor wire connections without removing the cover
-
Flexible and kink-resistant cord – soft PVC outer jacket stays flexible in all climates
-
Includes everything needed for install – grommets, ring terminals, junction box, mounting screws
Why Choose TPU5088:
-
Designed for 12V trailer wiring applications
-
Provides safe and reliable connectivity for brake lights, signal lights, charging lines, reverse lights, and more
-
Built for utility trailers, enclosed trailers, goosenecks, car haulers, RVs, and food trailers
-
Flame-retardant, waterproof, dustproof, and corrosion-resistant
-
Compatible with trailers using 7-blade RV-style connectors and SAE-standard wiring
features:
Heavy duty wire for good construction
Trailer Wire comes with weather resistant feature, will not be affected by weather temperature variations, Wires are Coated with a Thick Rubber-like Insulation, offering Kink-Free Flexibility / Quick and Easy Installation Into a Junction Box..
premium full copper pins,.flexible wire
8feet long length cord with soft and durable PVC housing that offers you be flexible to wire the trailer plug from the front to
the rear of your vehicle.
7 Different color wire for simper connection
7-way copper blade connectors molded into a heavy duty plug head, one cable end has the 7 Way Plug, and the other end has 7 color
coated wires, which help you to hook up to the proper wires on your trailer
trailer plug is designed with transparent surface for better wire observation. Not need to open the box and you can monitor the operation of the wiring haress clearly, very convenient.
-----7-way copper blade molded into a heavy duty plug, provides a fast and simplified way for wires connection as well as keeping all your trailer wiring
-----Sturdy junction box with color marked 7-poles that can be easily identified, gives you more convenience for wiring left/right turn light, brake signal lamp, reverse light, tail light
----Adopted flameproof ABS junction box and good conductivity copper with solid cord, stronger and rugged, perfect for RVs, trailers, campers, caravans, food vans and other towed vehicles. 8FT long cord with soft and durable PVC housing that offers you plenty of flexibility to wire it from the front to the rear of your car
-----Better sealing performance, 4 open & 4 close rubber fitted grommets for option based on your wiring needs, making the whole junction box waterproof, dustproof and corrosion resistant
