Product Description
Upgrade your trailer with the Carter 7K Triple Axle Kit, designed for heavy-duty performance and ease of installation. Featuring two electric brake axles with self-adjusting brakes, one idler axle, and all necessary components, this kit is perfect for hot shot, utility, cargo, dump, car hauler, boat, or landscape trailers. Built for strength, reliability, and efficiency, this kit is the ultimate solution for your trailer upgrade or build.

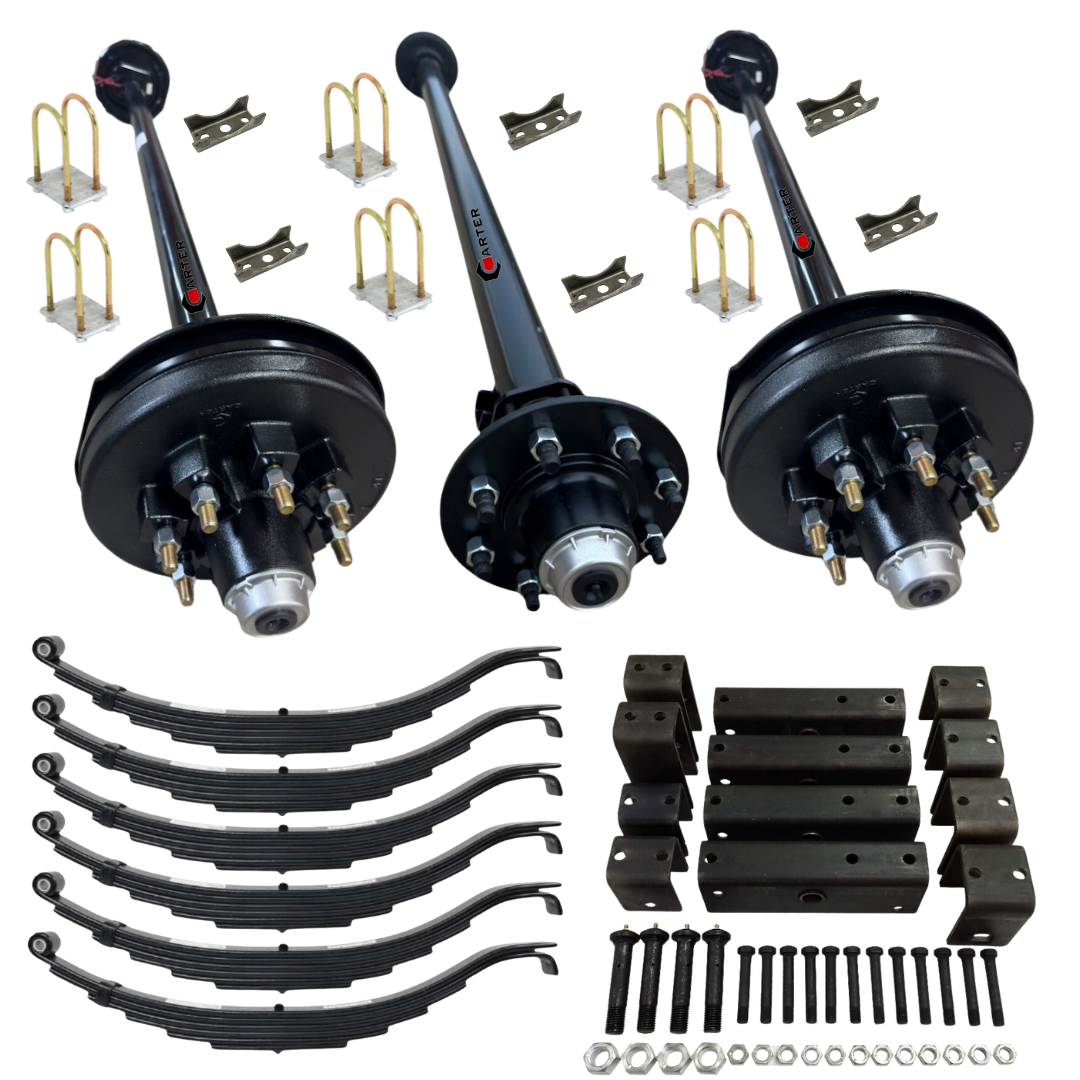

This 21K Triple Axle Trailer Kit Includes:
- (2) 7,000 lbs Electric Brake Trailer Axles, 8-lug.

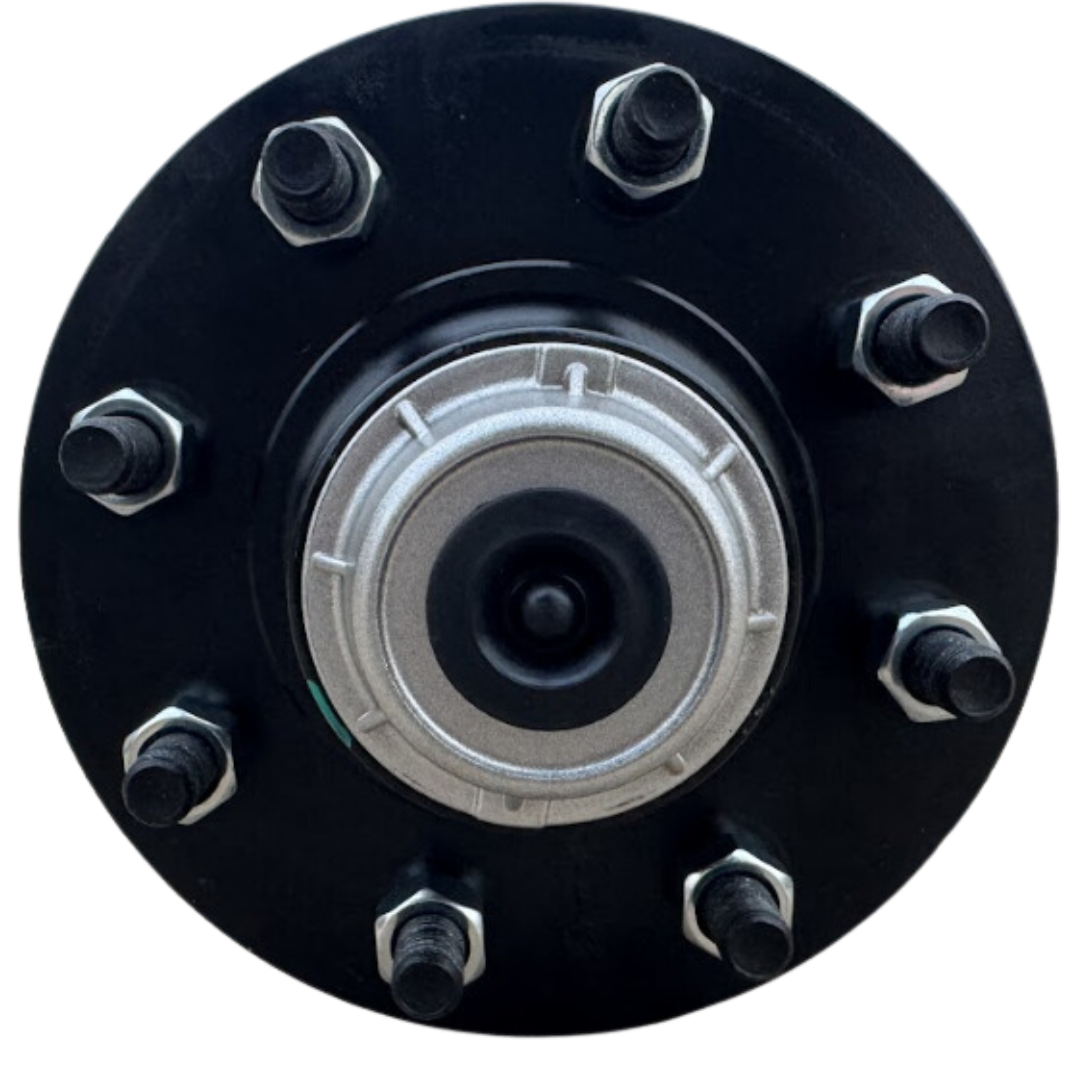

- (1) 7,000 lbs Idler Trailer Axle with 8-lug hubs.
- (6) TPU-161 6-Leaf Slipper Springs (29-1/2" long x 2" wide).
- (3) 3" U-Bolt Kits.
- (1) Triple Axle Hanger Kit for Slipper Springs.
All parts and components needed to install axles and get you on the road are included!
Trailer Axle Specifications:
- Capacity per Axle: 7,000 lbs.
- Bolt Pattern: 8 on 6.5” (8x6.5”).
- Stud Size: 9/16”.
- Electric Brake Axles (2): 12" x 2" self-adjusting electric brakes.
- Idler Axle (1): Pre-installed idler hubs.
- Axle Tube: Round 3” outer diameter, ⅜” thick.
- Spring Pads: Welded on axle or optional loose pads for custom placement.
- Assembly: Axles arrive fully assembled, ready to install on your trailer.
- Pre-Wired: axles are fully wired for easy brake connection.
- Spindles: #42 spindle with 2-¼" seal journal.
- Grease Caps: Forged aluminum EZ Lube caps for easy maintenance.
- Lubrication: Fast EZ Lube design for simple hub greasing.
- Finish: Powder-coated axle tubes for extended durability.
TPU-161 Slipper Leaf Spring Specifications:
- Type: 6-Leaf Slipper Springs.
- Length: 29-1/2” from center of eye to end of spring.
- Width: 2”.
- Capacity: 4,000 lbs per spring.
- Free Arch: 3-5/16”.
- Eye Diameter: 9/16” with pre-installed bushings.
- Interchangeable Part Numbers: TPU-161, SH-2953, MAT-161, 1232S.
U-Bolt Kit Specifications:
- Includes:
- (4) U-bolts (1/2"-20 x 6.63").
- (8) Locking Nuts (1/2"-20).
- (2) Tie Plates for 3" wide axles.
Triple Hanger Kit Specifications:
- Designed For: 2" Wide Slipper Springs with 12" Equalizers.
- Includes:
- (2) Tall Front Hangers.
- (4) Tall Center Hangers.
- (2) Tall Rear Hangers.
- (4) 12" Long Straight Equalizers.
- (8) 9/16" x 3-1/2" Shackle Bolts.
- (8) 9/16" Diameter Lock Nuts.
- (4) 7/8" x 4-11/16" Equalizer Bolts.
- (4) 7/8" Diameter Lock Nuts.
Why Choose Carter Axles?
- 100% Dexter Compatibility: Fully interchangeable with Dexter parts, ensuring easy replacements nationwide.
- Built for Strength: Powder-coated axle tubes, TPU-161 slipper springs, and heavy-duty grease caps ensure exceptional performance and durability.
- Self-Adjusting Brakes: Electric brake axles feature self-adjusting brakes for consistent stopping power and minimal maintenance.
- Complete Package: Includes all hardware needed for seamless installation.
- Unmatched Value: High-quality components at a fraction of the cost of big-name brands.
