Product Description
Upgrade your axles, replace damaged axles, or build a trailer with this 14,000 lbs. Tandem Axle Tire Wheel trailer kit. This kit comes with all the necessary hardware to install both axles on your trailer and get you on the road. Kit also includes a set of (4) Trailer Tire and Wheel Combos of your Choice.

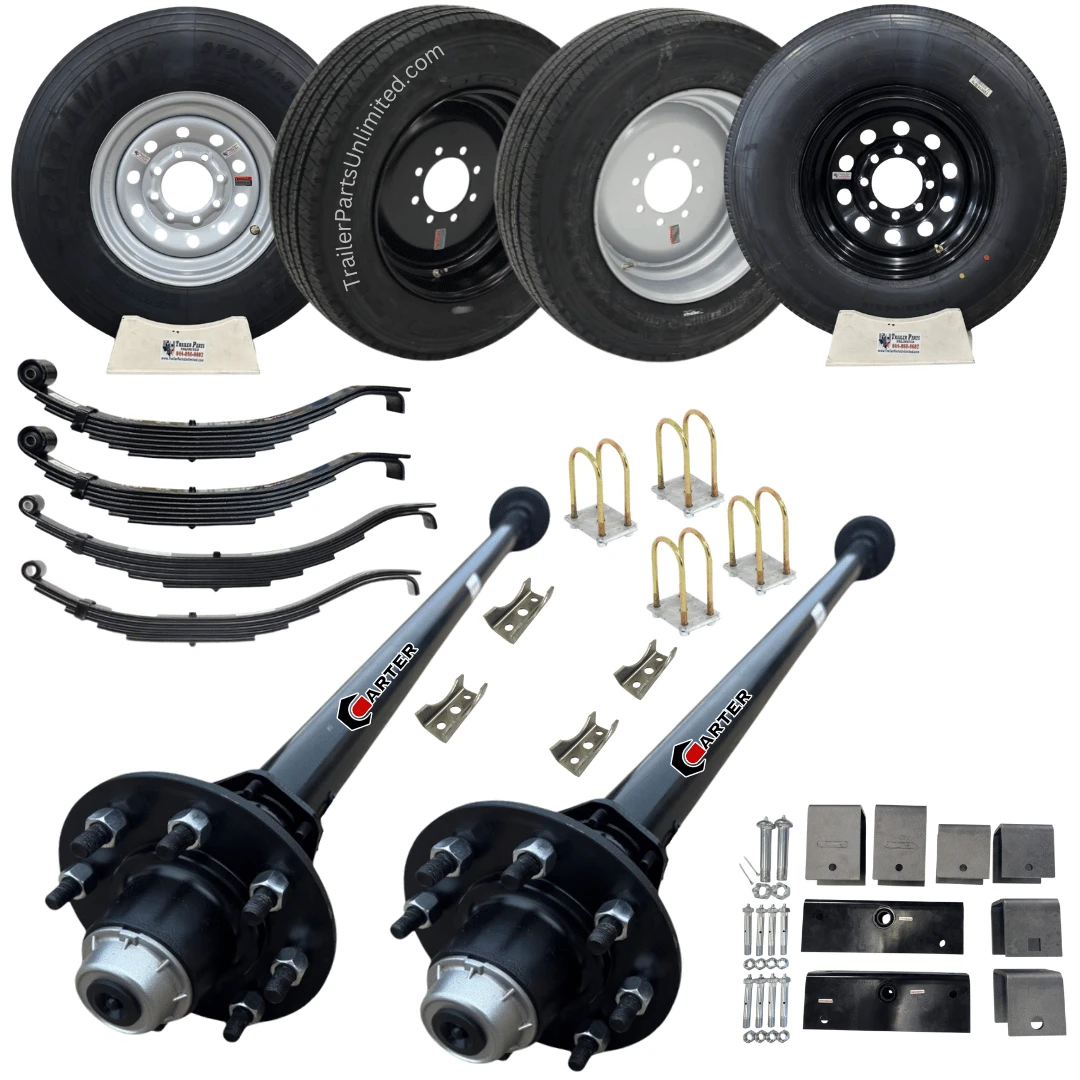

This 14k Tandem Axle Trailer Kit Includes:
(2) 7000 lbs Idler Trailer Axles Fully Assembled | 8 lug 6.5" Idler Hubs
(4) Slipper Leaf Springs of Choice
(2) 3" u bolt kits
(1) tandem hanger kit for slipper springs
(4) Trailer Tire Wheel Combos of Your Choice
Custom Spring Pad Placement
We can weld spring pads in a custom location for an additional charge.
If you need spring pads welded in a custom location that is not listed in the available options and to specify where you need spring seats welded:
Click below:
Weld my spring pad seats on for me!
Axle Components & Specs:
Axle Inner Bearing – 25580
Axle Inner Race – 25520
Axle Outer Bearing - 14125A
Axle Outer Race - 14276
Axle Hub Drum - 8 lug 6.5" bolt pattern
Axle Beam - 3” Round tube 1⁄4” wall Thickness.
Axle Hub Cap - #KC21-43A: HD Forged Aluminum EZ Fast Lube Grease
Axle Studs - #23D25: 9/16-18 trailer studs
Axle Brakes - 12” x 2” Electric (sold separate)
Replaces Dexter, AL-KO, Hayes,Lippert Axles, and Just about any other brand axle.
Trailer Axle Specifications:
Axles come fully assembled
8 lug on 6.5" bolt pattern idler hubs on one axle.
8 lug idler hubs on one axle.
5 hole brake flange welded on axle to make it easy to add brakes to.
Axles are pre-wired in the axle tube.
Packed with High-Temp Axle Grease.
EZ Fast-Lube Design.
Zerk fitting on spindle use rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.
Powder coated black.
Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle,
BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More.
Axles come fully assembled ready to install on your trailer.
Leaf Spring Options:
#TPU-232: 2” Wide x 27” Long | 5 Leaf Slipper Spring
#TPU-161: 2” Wide x 29-½” Long | 6 Leaf Slipper Spring
#72-51: 2” Wide x 26-⅝” Long | 7 Leaf Slipper Spirng (Rubber Bushings)

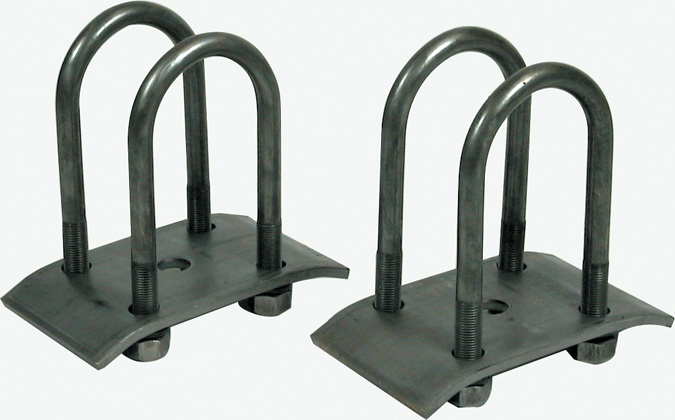

3" Axle Tube U-bolt Kit for 5,200 - 8,000 lb Trailer Axles
kit includes:
(4) 9/16"-20 x 7" L 3" Tube U-bolts
(8) 1/2"-20 U-bolt nuts
(2) Tie Plates for 3" Wide Axle Tubing u bolts
(This Kit is all the u-bolts and hardware for one complete axle).

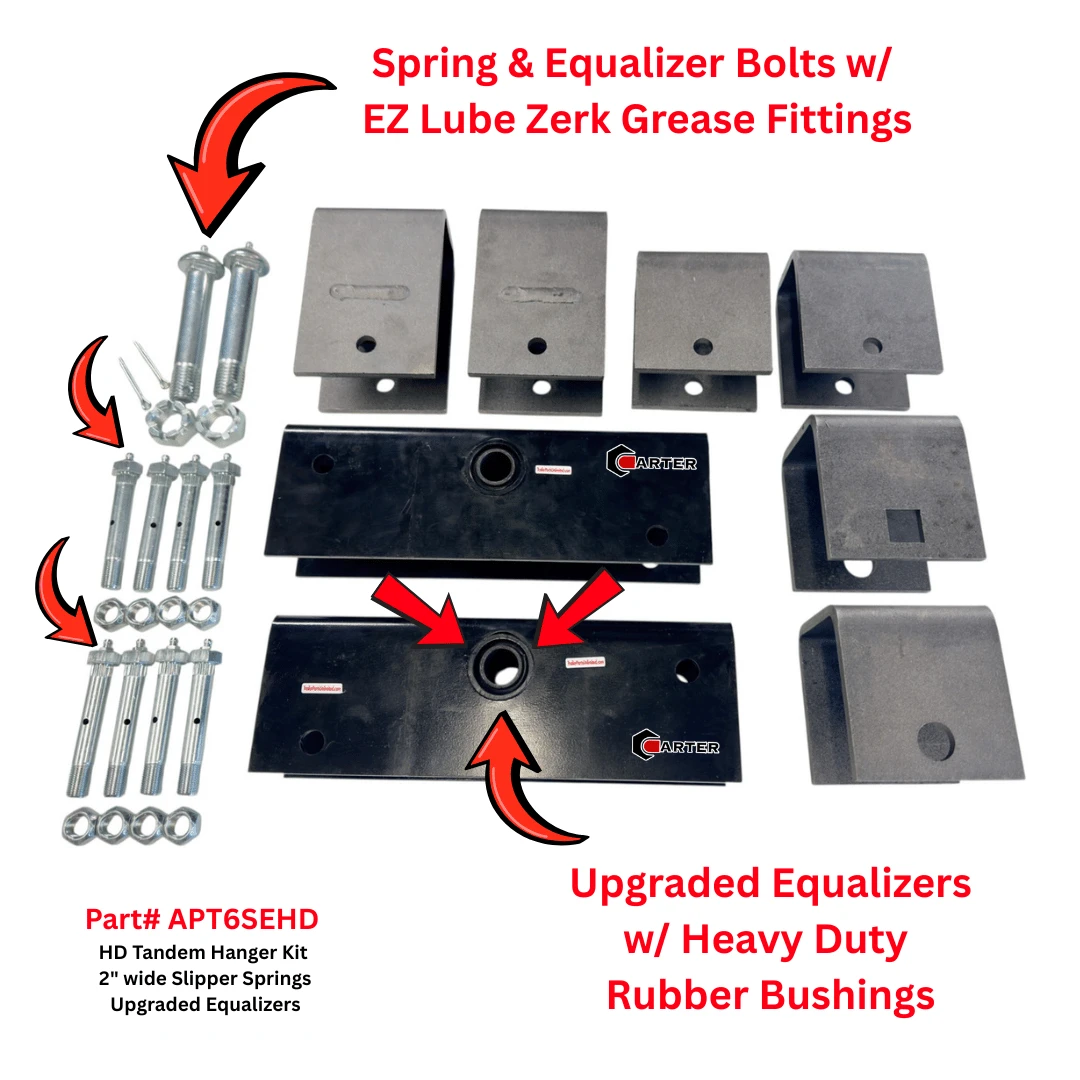

HD Tandem Hanger Kit | Upgraded Equalizers
Includes the following:
2) front hangers 4 inch long
2) center hangers 4” long
2) rear hangers
2) 12” long equalizers with upgraded rubber bushings
2) ⅞” equalizer bolts with zerk fittings
2) ⅞” castle nuts and cotter pins
8) 9/16” x 3-½” long spring bolts with zerk fittings
8) 9/16” lock nuts

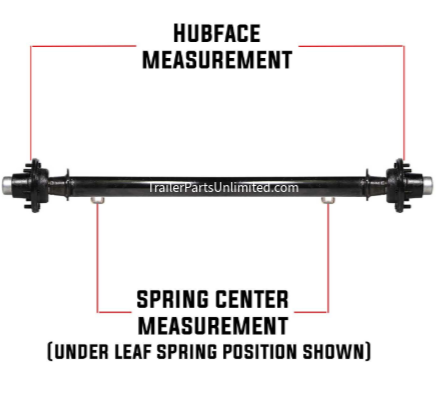

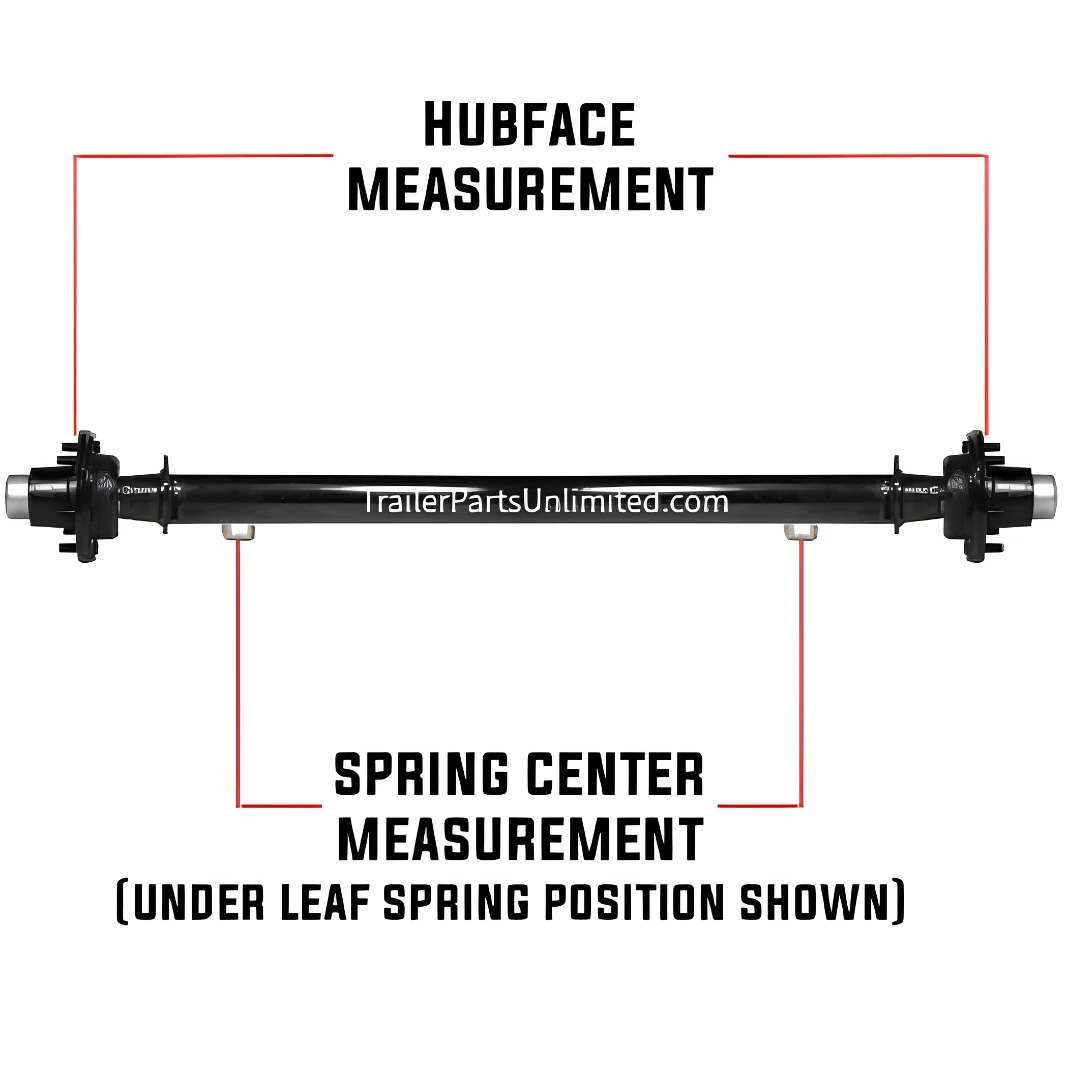

How to properly measure your axle:
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.

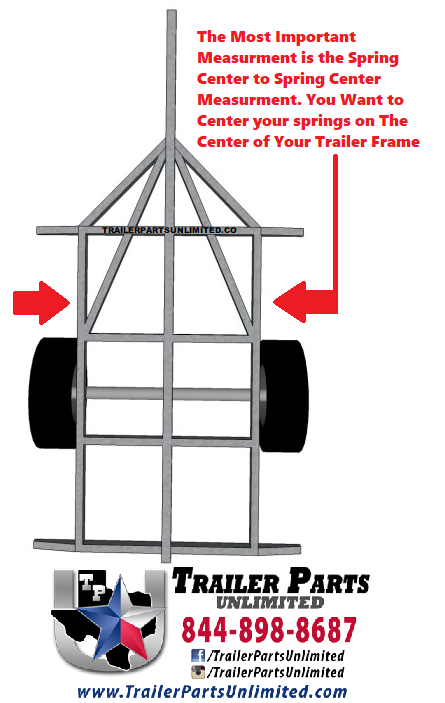

Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)
