Product Description
Upgrade Your Trailer with the Carter 7K Tandem Idler Axle Trailer Kit
Designed for heavy-duty hauling and effortless installation, this comprehensive package includes TPU-161 leaf springs, fully assembled idler axles, and all necessary components for a seamless upgrade or build. Perfect for utility, boat, or landscape trailers, the kit ensures maximum strength, reliability, and user convenience.

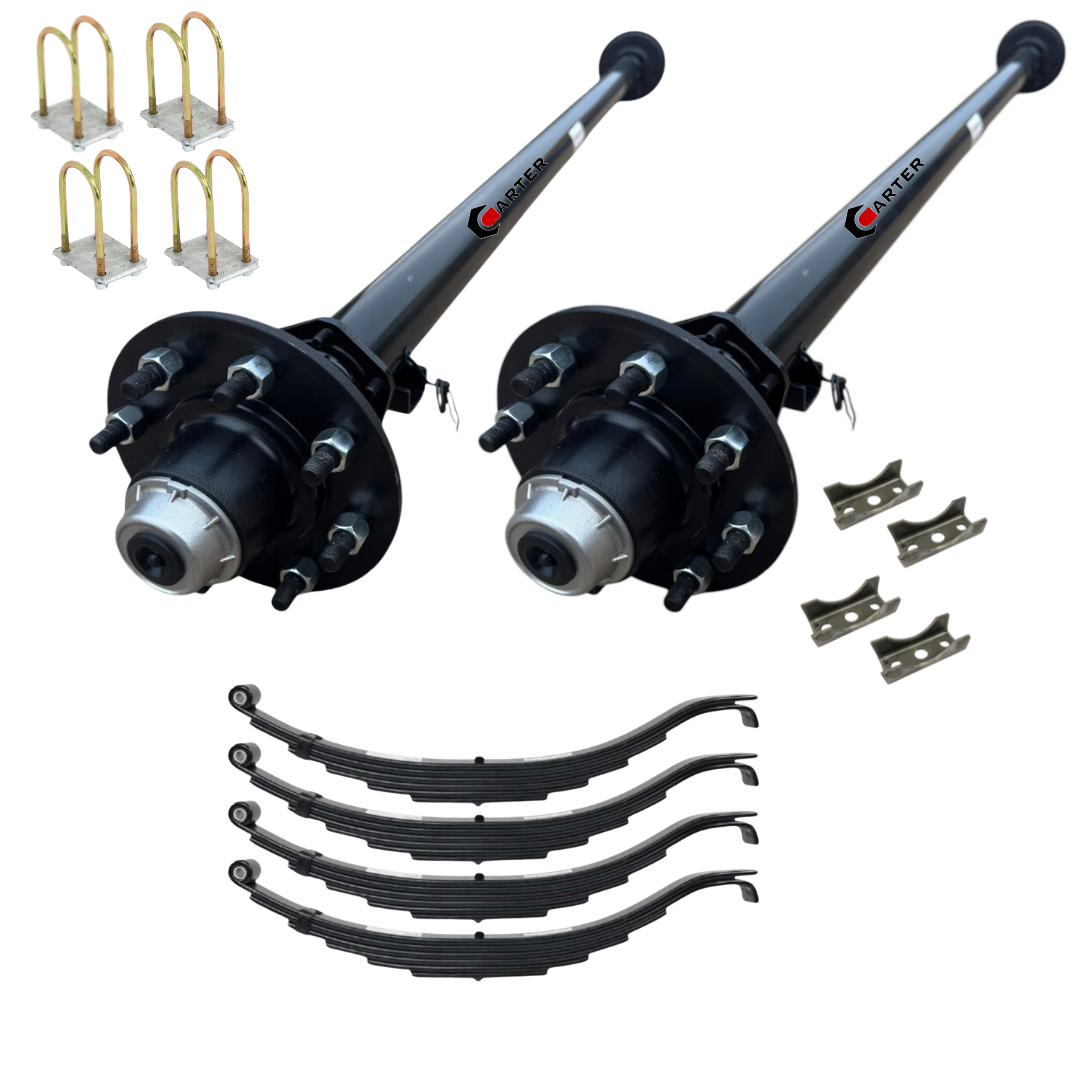

This 14K Tandem Axle Trailer Kit Includes:
-
(2) 7,000 lbs Trailer Axles with 8-lug idler hubs
-
(4) 6 Leaf Slipper Springs (2" Wide x 29-1/2" Long)
-
(2) 3" U-Bolt Kits
-
(1) Tandem Axle Hanger Kit for Slipper Springs
All components required to install axles and get on the road are included.
Trailer Axle Specifications:
-
Capacity per Axle: 7,000 lbs
-
Bolt Pattern: 8 on 6.5” (8x6.5”)
-
Stud Size: 9/16”
-
Hubs: Idler hubs pre-installed
-
Axle Tube: Round 3” outer diameter, ⅜” thick
-
Spring Pads: Welded on axle or optional pads loose for welding spring seats where needed with the “pads loose” option
-
Brake Flange: 5-bolt brake flange for brake upgrades
-
Pre-Wired: Easy to add brakes to axles
-
Spindles: #42 spindle with 2-¼" seal journal
-
Grease Caps: Forged aluminum EZ Lube caps, designed to resist bending and breaking
-
Lubrication: Fast EZ Lube design for easy maintenance
-
Finish: Powder-coated axle tubes for extended longevity
TPU-161 Leaf Spring Specifications:
-
Type: Slipper Springs
-
Length: 29-1/2” from center eye to end
-
Width: 2”
-
Capacity: 4,000 lbs per spring
-
Bushing ID: 9/16”
-
Interchangeable Part Numbers: TPU-161, SH-2953, MAT-161, 1232S, E5115
U-Bolt Kit Specifications:
-
Includes:
-
(4) U-bolts (1/2"-20 x 6.63")
-
(8) Locking Nuts (1/2"-20)
-
(2) Tie Plates for 3" axles
Tandem Hanger Kit Specifications:
-
Includes:
-
(2) Front Hangers
-
(2) Rear Hangers
-
(2) Center Hangers
-
(2) Equalizers (12" Long)
-
(8) 9/16" x 3-1/2" Shackle Bolts
-
(8) 9/16" Lock Nuts
-
(2) 7/8" x 4-11/16" Equalizer Bolts
-
(2) 7/8" Lock Nuts
Why Choose Carter Axles?
-
Dexter Compatibility: Fully interchangeable with Dexter parts for easy replacements nationwide
-
Built for Strength: Powder-coated tubes, TPU-161 leaf springs, and heavy-duty components
-
Complete Kit: Includes all hardware needed for installation
-
Exceptional Value: High-quality at a fraction of big-brand prices
