Product Description
Upgrade your trailer with the Carter 7K Triple Idler Axle Trailer Kit, a comprehensive package designed for heavy-duty hauling and simplified installation. This kit includes TPU-223 double eye leaf springs, fully assembled idler axles, and all the necessary components, making it an ideal solution for upgrading or building trailers. Whether you're outfitting a hot shot trailer, utility, cargo, dump, car hauler, boat, or landscape trailer, this kit is engineered for strength, reliability, and ease of use.

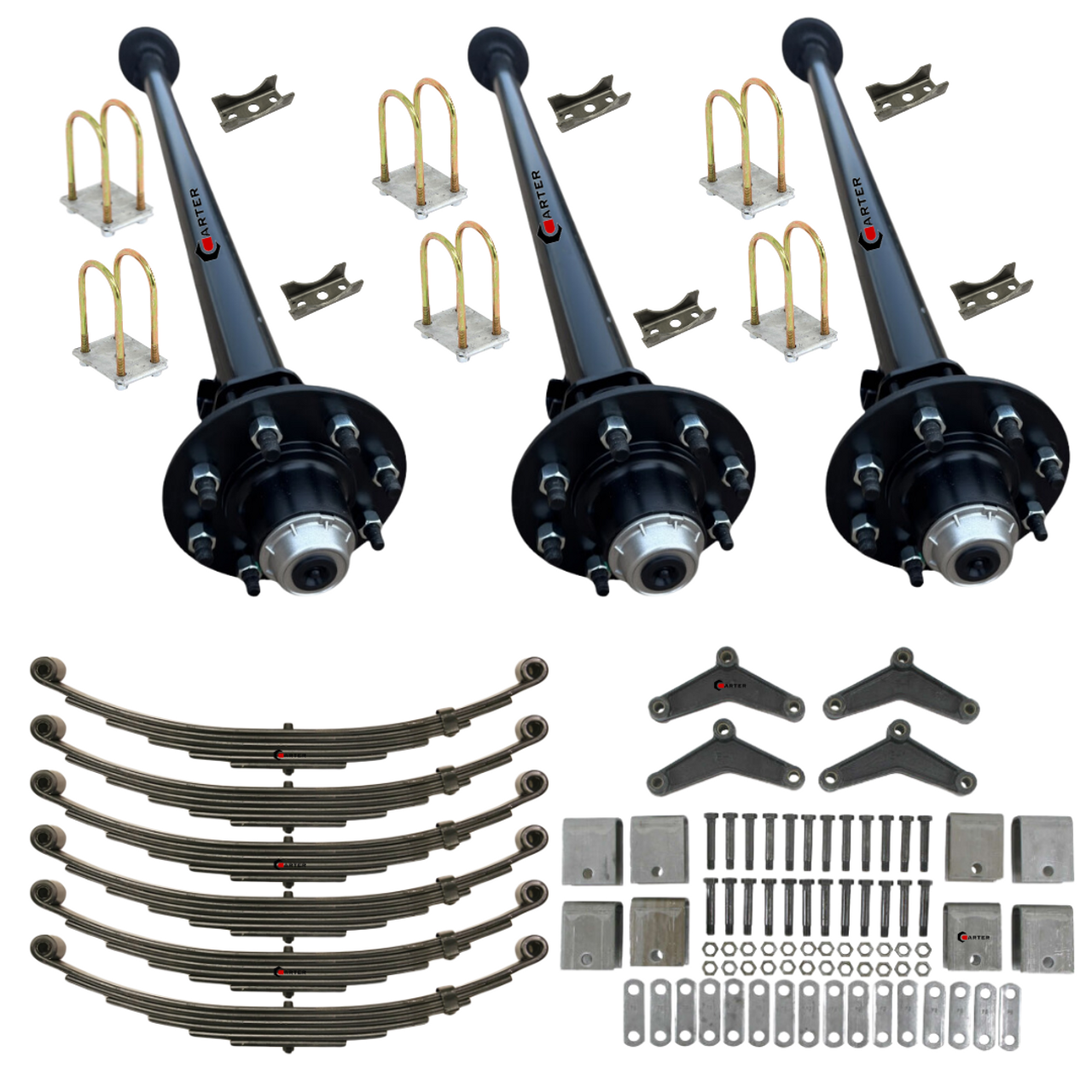

This 21K Triple Axle Trailer Kit Includes:
-
(3) 7,000 lbs Trailer Axles with 8-lug idler hubs.
-
(6) TPU-223: 6 Leaf Double Eye Leaf Springs
-
(3) 3" U-Bolt Kits.
-
(1) Triple Axle Hanger Kit for Double Eye Springs.
All parts and components needed to install axles and get you on the road are included!
Trailer Axle Specifications:
-
Capacity per Axle: 7,000 lbs.
-
Bolt Pattern: 8 on 6.5” (8x6.5”).
-
Stud Size: 9/16”.
-

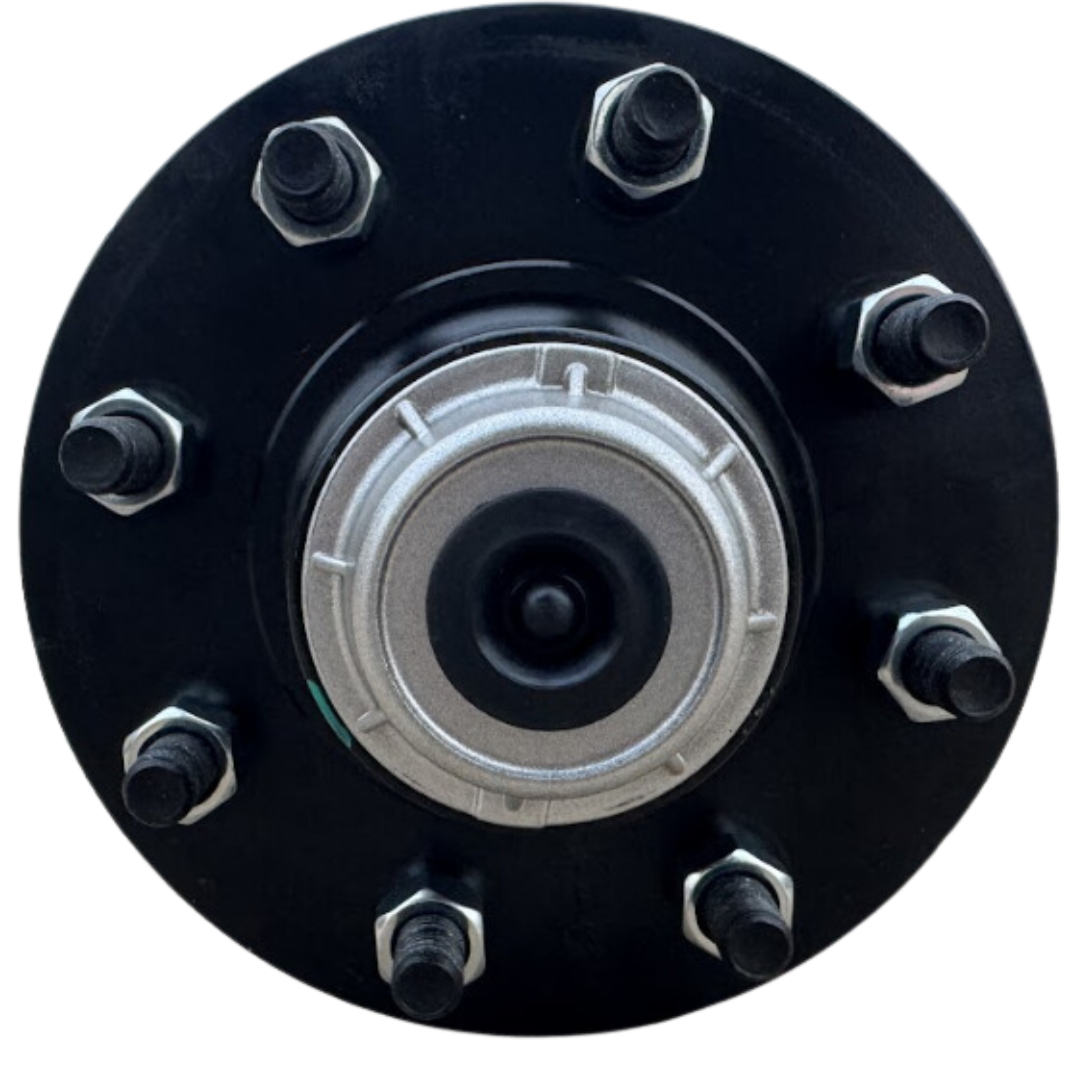

Hubs: Idler hubs pre-installed.
-
Axle Tube: Round 3” outer diameter, ⅜” thick.
-
Spring Pads: Welded on axle or optional pads loose so you can weld spring seats where needed with the “pads loose” option.
-
Brake Flange: 5-bolt brake flange for brake upgrades.
-
Pre-Wired: Easy to add brakes to axles.
-
Spindles: #42 spindle with 2-¼" seal journal.
-
Forged Aluminum Grease Caps: Stronger, better, faster.
-
Lubrication: FAST EZ Lube design for easy hub maintenance.
-
Finish: Powder-coated axle tubes for extended longevity.
TPU-223 Double Eye Leaf Spring Specifications:
-
Type: 6-Leaf Double Eye Springs.
-
Length: 25-1/4” from center of one eye to the center of the other.
-
Width: 1-3/4”.
-
Capacity: 3,800 lbs per spring.
-
Eye Diameter: 9/16” with pre-installed bushings.
-
Interchangeable Part Numbers: TPU-223, DE-2524, 7324D, MAT-223.
U-Bolt Kit Specifications:
-
Includes:
-
(4) U-bolts (1/2"-20 x 6.63").
-
(8) Locking Nuts (1/2"-20).
-
(2) Tie Plates for 3" wide axles.
Triple Hanger Kit Specifications:
-
Includes:
-
(2) Front Hangers.
-
(4) Center Hangers.
-
(2) Rear Hangers.
-
(4) 7-3/4" Long Equalizers (Double Eye).
-
(12) 3" Long x 9/16" Diameter Shackle Links.
-
(24) 9/16" Diameter Shackle Bolts.
-
(24) 9/16" Diameter Lock Nuts.
Why Choose Carter Axles?
-
100% Dexter Compatibility: Fully interchangeable with Dexter parts, ensuring easy replacements nationwide.
-
Built to Last: Powder-coated axle tubes, TPU-223 double eye springs, and heavy-duty grease caps ensure exceptional performance and durability.
-
Complete Package: Includes all hardware needed for seamless installation.
-
Unmatched Value: High-quality components at a fraction of the cost of big-name brands.
watch the video of the carter 7k trailer axles below
