Product Description
This 10K tandem axle Trailer Kit comes with everything you need to install the trailer axles on your trailer and get you on the road. With two fully assembled 10K Dexter axles, four slipper springs, two U-bolt kits and one hanger kit in one package, you can get to work on your trailer, instead of spending hours searching for each part. At Trailer Parts Unlimited, we want to make your buying experience as easy as possible. Order your new trailer kit online today!
Kit Includes:

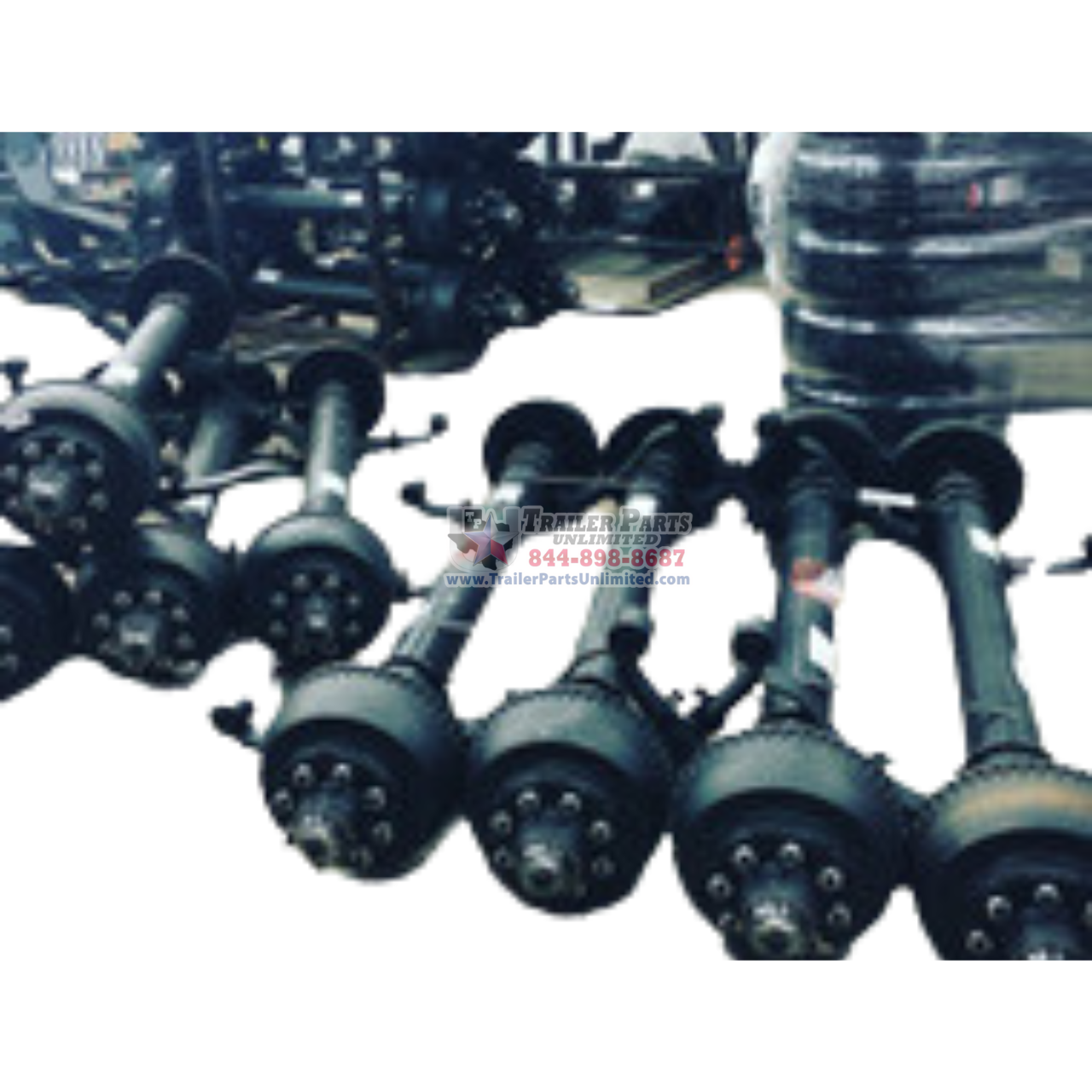

2) 10,000 lbs Dexter Electric Brake Trailer Axles, fully assembled with springs and u bolts.
1) Tandem Axle Hanger kit that includes all the weld on spring hangers, 24-5/8" Long equalizers, spring bolts and equalizer bolts.
(HAP-158) (HAP-258-03)
This kit is made for spread axles. Where the axles are spaced 48-1/2" apart from each other.
Axle Specs:
Axle Brand: Dexter
Country Made: USA
Hub Drum: 4.75" Hub
Bolt Pattern: 8x6.5"
Lug studs: 5/8"
Lubrication: Oil Bath
Axle Tube: 5" Round Diameter w/ 1/4" Thick wall
Brakes: Electric Drum Brake
Brake Size: 12-1/4" x 3-3/8"
Fully Assembled with 2-1/2" wide springs on axle
**You can run 16" dual tires and wheels or 17.5" dual or super single tires and wheels with these axles**
Hanger Kit Specs:
Includes:
(2) 5-1/4" Tall front hangers with 3/4" bolt holes (28-74-2)
(2) 4-1/2" Tall center hangers with 1" bolt holes (29-42-2)
(2) 4-1/2" Tall rear hangers (30-61-1)
(2) 24-5/8" Long straight equalizers (13-141-3
Allows for 48-1/2" between axles
1" Diameter center hole for mounting to hanger
3/4" Diameter side hole for attaching to spring
(4) 4-1/2" Long x 3/4" diameter spring-eye bolts (7-264)
(4) 3/4" Diameter locknuts (6-113)
(2) 5-1/4" Long x 1" diameter equalizer bolts (7-169)
(2) 1" Diameter locknuts (6-112)
| Axle Capacity | A - Distance Between Front and Center Hangers | B - Distance Between U-Bolts | C - Distance Between Center and Rear Hangers | D - Distance Between Center of Axle and Trailer Frame |
|---|---|---|---|---|
| 10,000 lbs | 38-1/3" | 48-1/2" | 37-7/10" | 5" |
How to measure your axle. Hub face to hub face (or track)/ spring center to spring center:
