7k Brake Axle Kit w/ 16" 10Ply Tires and Silver Mod Wheels & Slipper Springs

$752.00 - $832.00
(No reviews yet) Write a Review
Condition:
New
Shipping:
Calculated at Checkout

To Calculate shipping cost:

Add items into the shopping cart.

Go to VIEW SHOPPING CART,

In the shopping cart you will see a place for shipping.

Put your state and zip code into the box and press calculate.

If it gives you an error just give us a call and we can help you out

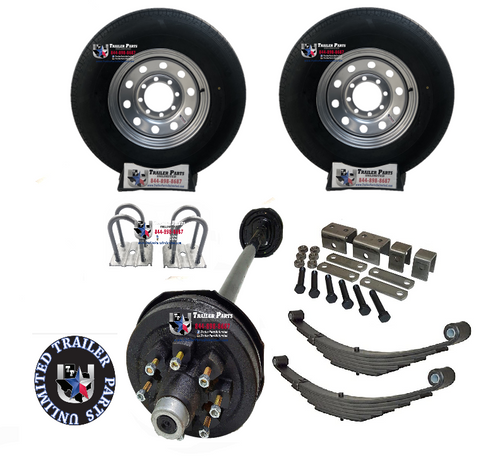

Kit Includes:

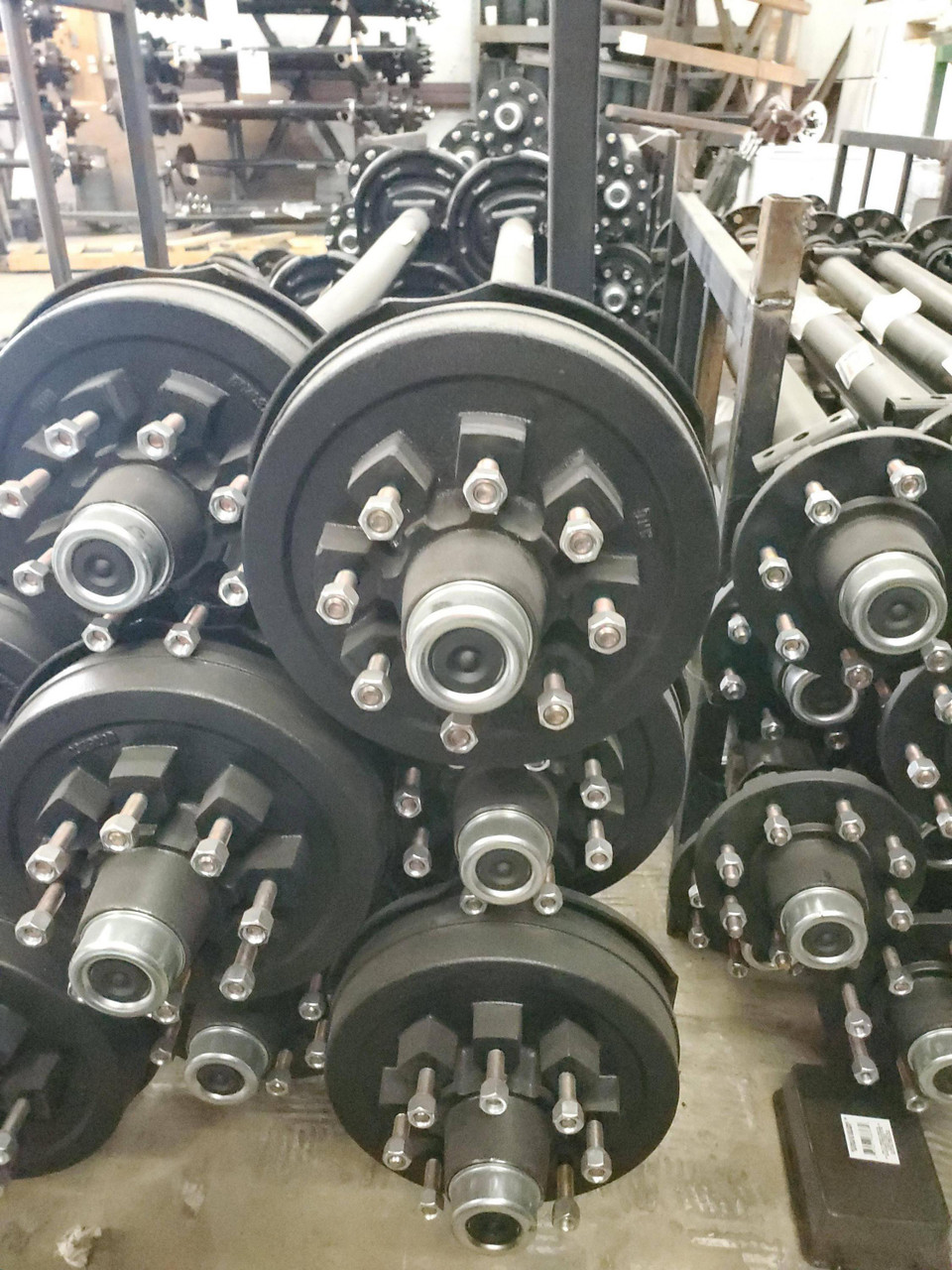

(1) 7,000 lbs. Electric Brake Trailer Axle 8 lug



(2) 5 leaf 2” wide Slipper springs



(1) 3” U-bolt kit (1 kit per axle)



(1) Single axle hanger kit (includes all the weld on hangers,spring bolts and nuts.)



(2) ST235/80R16 10-Ply Radial Trailer Tires LRE Mounted on Silver Mod Wheels.









Axle Specs & Features:



Axle Brand: TPU



Capacity per Axle: 7,000 lbs



Axle hub Drum - 8 Lug on 8x6.5" bolt pattern



Brakes: 12” x 2” Electric Brake



Axle Beam - 3" Tube 1/4" wall thickness



Axle Hub Cap - Fast Lube Grease (EZ-Lube)



Axle Studs - 9/16"



Replaces Dexter, AL-KO, Hayes,Lippert Axles, Rockwell American, and Just about any other brand axle.



Axles come fully assembled



Axles are pre-wired in the axle tube.



Packed with High-Temp Axle Grease.



Fast Lube Design.



Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.



Grease your axle without pulling off your whole entire hub.



Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs)



which Allows for lower ride height. For optimal usage, use with double eye springs



High Strength Cambered Steel Axle Tube Construction to ensure Even Tire Wear so the tires will last longer.




 Trailer Tire Wheel Specifications:



Tire Size: ST235/80R16

Ply Rating: 10

Load Range: E

Overall Diameter: 30.79”

Section Width: 9.25”

Max Capacity Per Tire: 3,520 lbs

Tire PSI: 80 lbs

16" Wheel Specs:

Wheel Size: 16” x 6”

Bolt Pattern: 8x6.5”

Center Bore Hole: 5.15”

Offset: 0

Max Load Per Wheel: 3,800 lbs

Offset: 5.35”

Wheel Style: Silver Modular

Wheel Material: Steel
















Slipper Spring Specifications:



5 Leaf 2" Wide Slipper Spring 3.5k Cap. 26-7/8" Free Length



Measures 2" wide and 26-7/8" long from eye to end.



Spring Type: Slipper Spring



Capacity per spring: 3,500 lbs



Leaves: 5



Eye Dimension: 9/16"



Arch Height: 3"-3.25"



Spring Eye size: 9/16"







Single Hanger Kit Specs:



Kit includes 3-3/4" tall front hangers, 5-1/6" tall rear hangers and hardware for mounting 2" springs to your 2,000-lb to 8,000-lb, single-axle trailer frame.



Features:



Attaches 2 leaf springs to your trailer frame

Use table below to determine hanger location based on type of leaf springs

Achieves 4-3/4" or 5" clearance between trailer frame and axle, depending on axle size



Includes:

(2) 3-3/4" Tall front hangers

(2) 5-1/6" Tall rear hangers

(4) 3-1/2" Long x 9/16" diameter shackle bolts

(4) 9/16" Diameter locknuts

Designed for use on trailers with single, 2,000-lb to 8,000-lb axles








3" U-Bolt kit Includes:



(4) 1/2"-20 x 6.63" L 3" Tube U-bolts.



(8) 1/2"-20 U-bolt nuts.



(2) Tie Plates for 3" Wide Axle Tubing u bolts.



This Kit is all the u-bolts and hardware for one complete axle.







How to properly measure your axle:



Hub Face (HF):

measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.



Spring Center (SC):

Measure from the middle of the spring on one axle to the center of the other spring on the same axle.

There should be about a 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)













How To Measure Your Bolt Pattern:





 Shipping:



This item ships on a pallet with a common freight carrier. Please see the shipping policy for more info.



https://trailerpartsunlimited.com/shipping-returns/



We offer discounts for bulk orders and manufacturing discounts.
