Product Description
Upgrade your trailer with the Carter 7K Tandem Axle Kit, a high-performance solution designed for strength, durability, and easy installation. This kit includes one electric brake axle with self-adjusting brakes, one idler axle, TPU-223 double eye leaf springs, and all the necessary hardware. Ideal for utility trailers, cargo trailers, car haulers, and more, this kit ensures smooth towing and dependable performance for all your heavy-duty needs.
This 14K Tandem Axle Trailer Kit Includes:
-
(1) 7,000 lbs Electric Brake Trailer Axle, 8-lug, with self-adjusting brakes.
-
(1) 7,000 lbs Idler Trailer Axle with 8-lug hubs.
-
(4) TPU-223 6-Leaf Double Eye Springs (25-1/4" long x 1-3/4" wide).
-
(2) 3" U-Bolt Kits.
-
(1) Tandem Axle Hanger Kit for Double Eye Springs.
Everything needed for quick and easy installation is included!

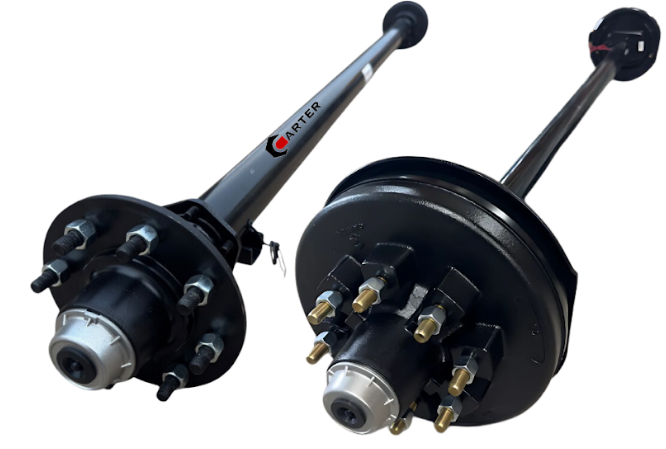

Trailer Axle Specifications:
-
Capacity per Axle: 7,000 lbs.
-
Bolt Pattern: 8 on 6.5” (8x6.5”).
-
Stud Size: 9/16”.
-

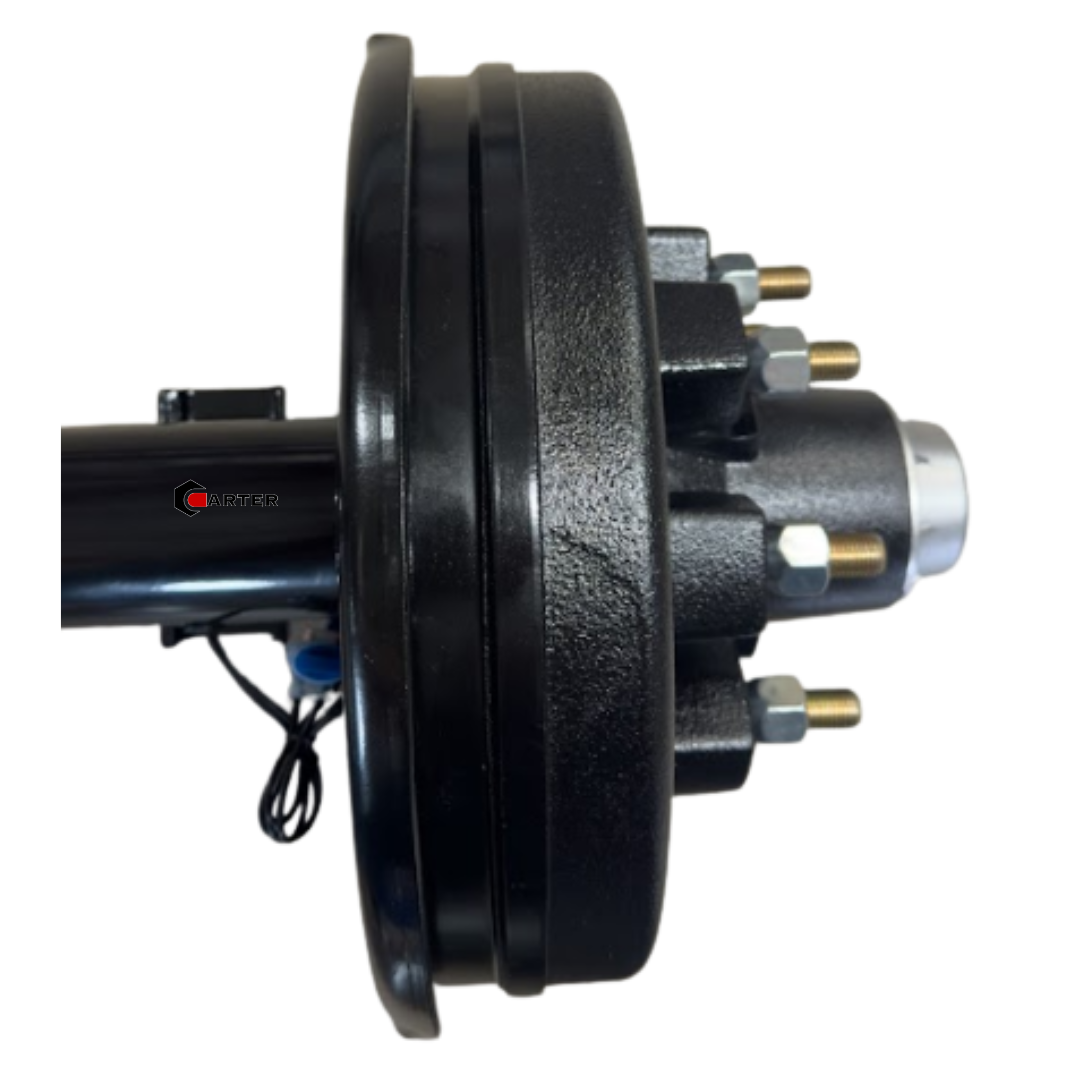

Electric Brake Axle (1): Pre-installed 12" x 2" self-adjusting electric brakes for consistent stopping power.
-
Idler Axle (1): Pre-installed idler hubs for smooth operation.
-
Axle Tube: Round 3” outer diameter, ⅜” thick.
-
Spring Pads: Welded on axle or optional loose pads for custom placement.
-
Assembly: Axles arrive fully assembled and ready for installation.
-
Pre-Wired: Both axles are pre-wired for easy brake connection.
-
Spindles: #42 spindle with 2-¼" seal journal.
-
Grease Caps: Forged aluminum EZ Lube caps for effortless maintenance.
-
Lubrication: Fast EZ Lube system for simplified greasing.
-
Finish: Powder-coated axle tubes for exceptional durability and rust protection.

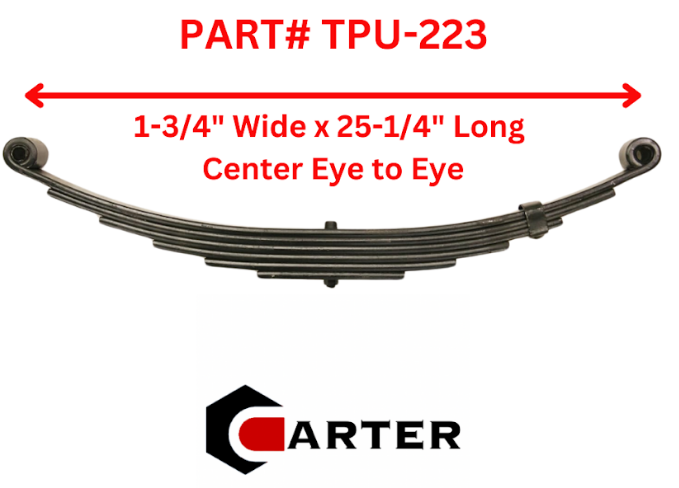

TPU-223 Double Eye Spring Specifications:
Kit comes with (4) leaf springs
-
Type: 6-Leaf Double Eye Springs.
-
Length: 25-1/4” from center of one eye to the center of the other.
-
Width: 1-3/4”.
-
Capacity: 3,500 lbs per spring.
-
Eye Diameter: 9/16” with pre-installed bushings.

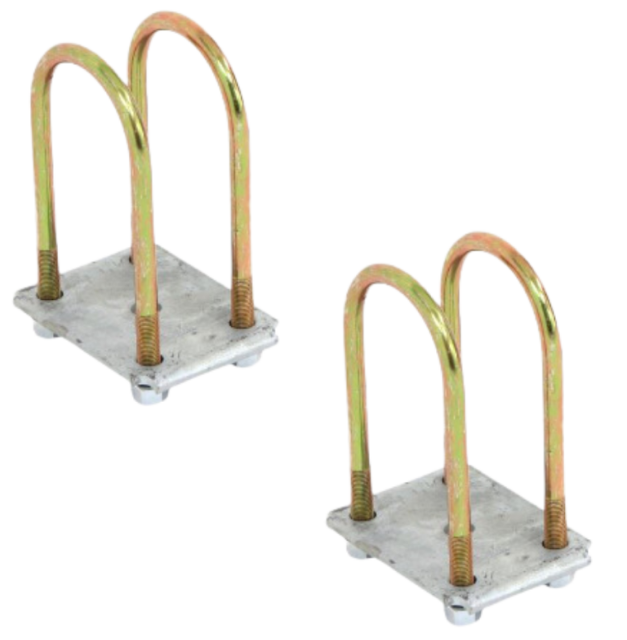

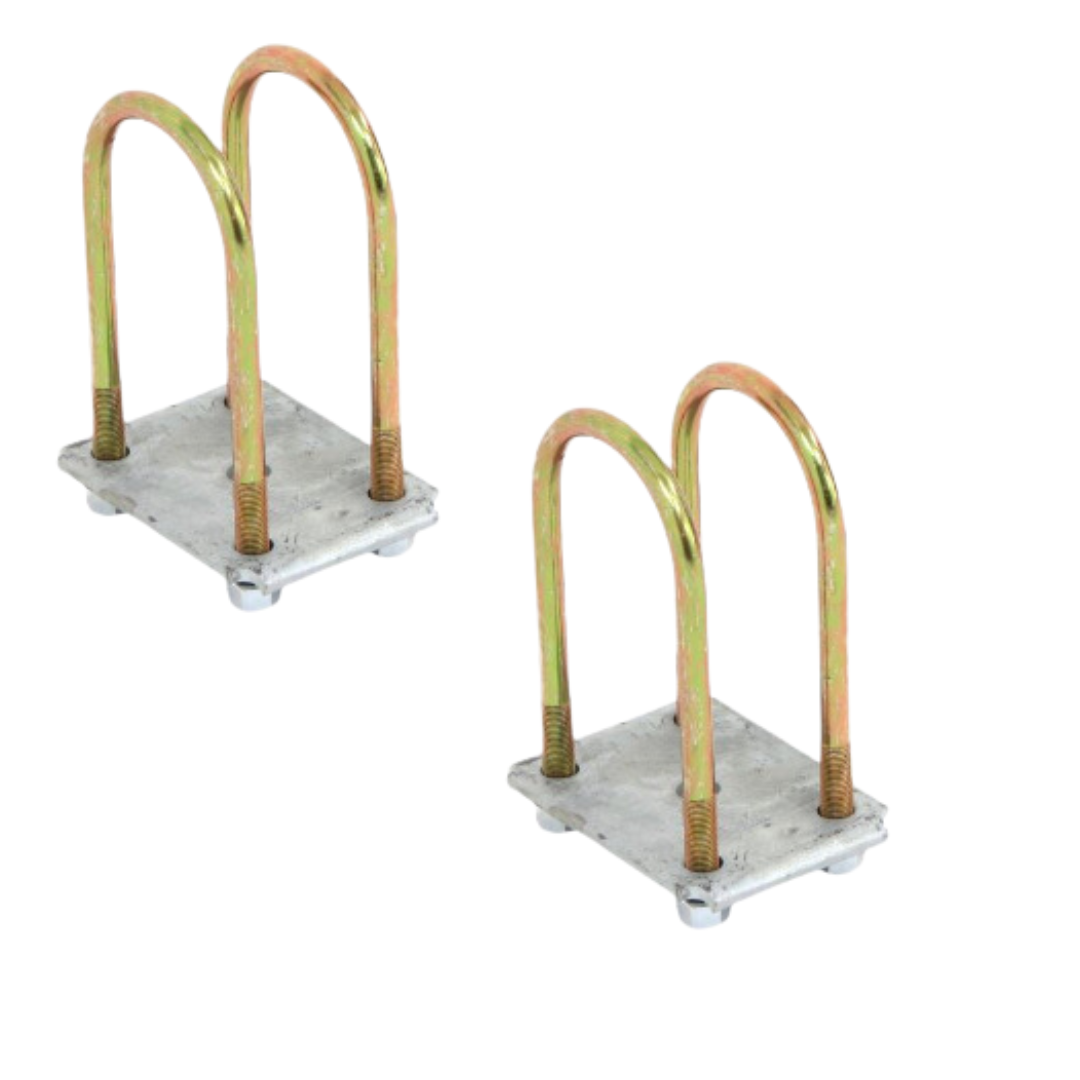

U-Bolt Kit Specifications:
Kit comes with (2) u bolt kits (one u-bolt kit per axle)
-
Includes:
-
(4) 3” x 7” U-bolts.
-
(8) U bolt Locking Nuts.
-
(2) Tie Plates.

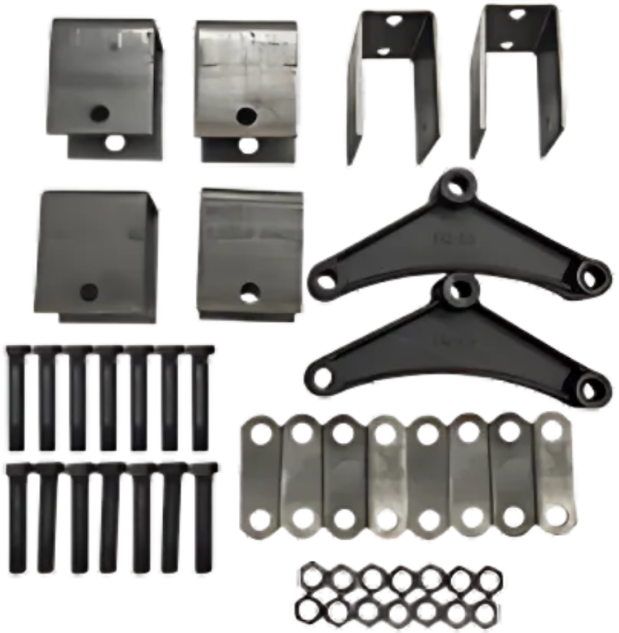

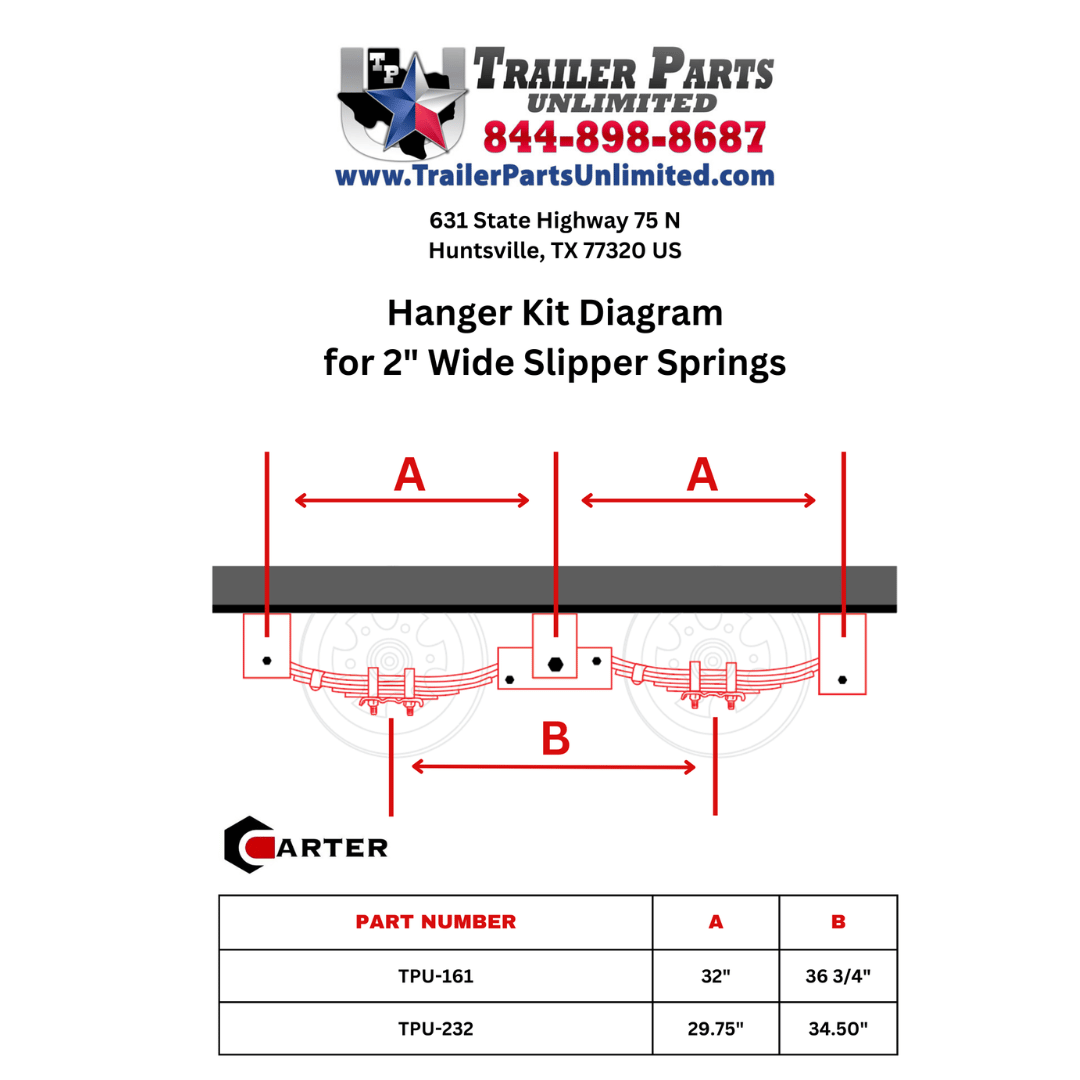

Tandem Hanger Kit Specifications:
-
Includes:
-
(2) Front Hangers.
-
(2) Center Hangers.
-
(2) Rear Hangers.
-
(2) 7-3/4" Long Equalizers.
-
(8) 9/16" Shackle Links.
-
(14) 9/16" Diameter Shackle Bolts.
-
(14) 9/16" Diameter Lock Nuts.
Why Choose Carter Axles?
-
Industry Compatibility: Fully interchangeable with Dexter and all other brand components for nationwide replacement convenience.
-
High-Performance Design: Powder-coated axle tubes, TPU-223 double eye springs, and heavy-duty forged components are built for tough jobs.
-
Self-Adjusting Brakes: Electric brake axle ensures consistent stopping power with reduced maintenance.
-
Complete Package: This kit includes everything needed for seamless installation and dependable towing.
Trusted Durability: Carter axles are engineered for long-lasting reliability, offering unmatched value for heavy-duty applications.

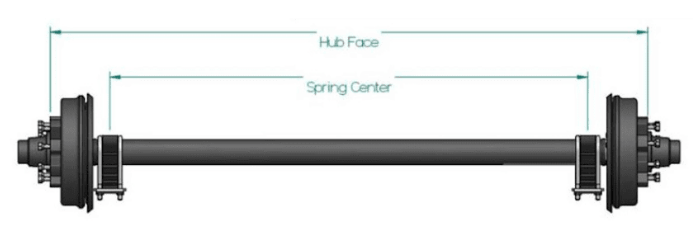

How to measure your trailer axle
