Product Description
6,000 lb Single Axle Trailer Kit – COMPLETE SETUP
Axle + Springs + U-Bolts + Tires & Wheels – Built to Install and Go
If you're tired of wasting time chasing parts and hoping everything lines up… this is the kit that fixes that.
This is a true complete 6K axle setup — everything matched, everything built to work together, and everything ready to bolt in.
Same fit as the big brands. Built heavier where it matters. Priced the way it should be.

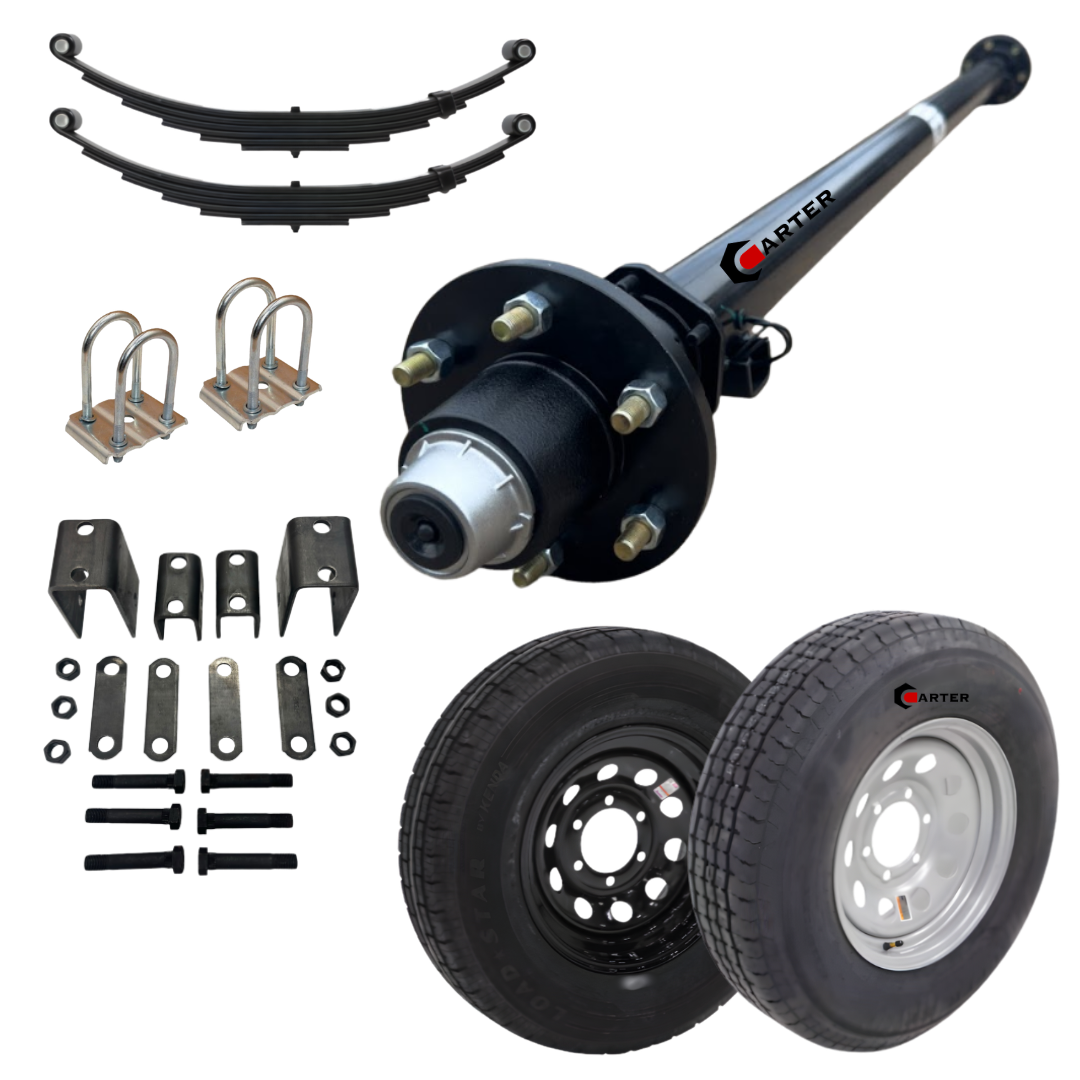

WHAT YOU’RE GETTING (FULL BREAKDOWN)
AXLE (FULLY ASSEMBLED)
(1) 6,000 lb Trailer Axle – Carter
• 6 Lug – 5.5" bolt pattern
• Idler hubs (no brakes)
• 5-bolt brake flange already welded on
• Pre-wired for brakes (ready for upgrade)
• 3" round axle tube powder coated
• 1/4" wall thickness
• 1/2" wheel studs with lug nuts included
• Fast Lube spindles (ez lube) zerk fittings on spindle to easily add grease to hubs
• Forged aluminum grease caps (won’t bend or fail like cheap caps)
• Packed with high-temp grease
• Fully assembled
This shows up ready to install — not a pile of parts.
****** note: If you select the “00” or “Pads Loose” option for spring center, the spring pads will NOT be welded onto the axle. This allows you to position and weld them exactly where you need them.
We also offer to weld the spring pads on for you where you want (additional charge). If you’d like us to weld the spring pads to your specific measurements, simply tell us you want us to weld the spring pads/ and or move them and weld them where you need them and include your dimensions in the order notes at checkout. We’ll review the details and give you a call to collect the additional charge before completing the work.
SPRINGS
(2) Double Eye Leaf Springs – TPU-223
• 6 leaf pack
• 1-3/4" wide
• 25-1/4" long
• Built for 6K-7k setups
U-BOLT KIT
(1) Complete Mounting Kit
• (4) U-bolts
• (2) tie plates
• All hardware included
This is everything you need to mount the axle to the springs.
TIRE & WHEEL PACKAGE (CHOOSE YOUR SETUP)
(2) Mounted Tire & Wheel Combos
Tire Options:
• ST225/75R15
• ST235/80R16
Wheel Options:
• Black wheels
• Silver wheels
Mounted Ready to bolt on.

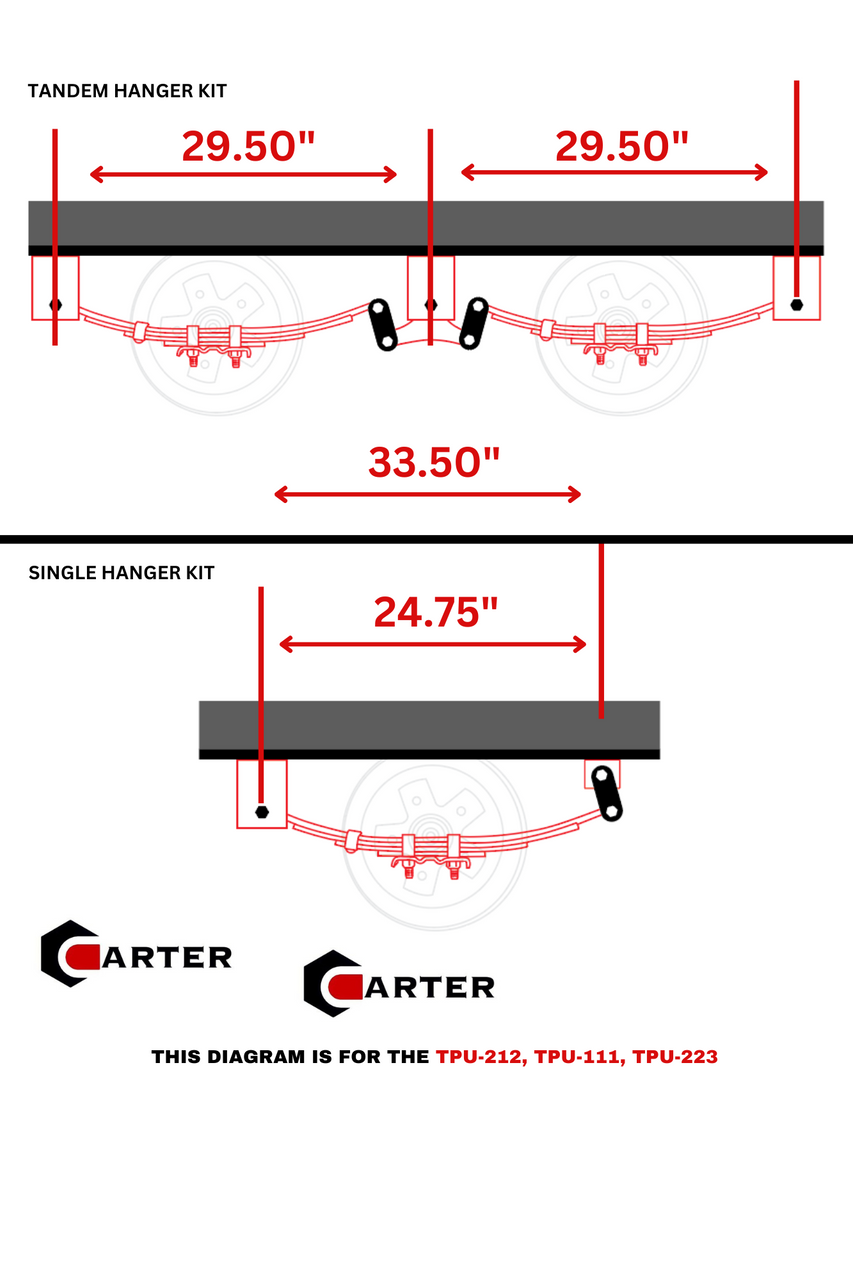

OPTIONAL SINGLE AXLE HANGER KIT (HIGHLY RECOMMENDED)
If you’re building from scratch or replacing worn suspension hangers (pieces welded onto trailer that holds springs), don’t skip this.
Includes:
(2) 3-1/4" Tall Front Hangers
(2) 1-1/4" Tall Rear Hangers
(4) 3-1/8" Long Shackle Straps
(6) 3" Long x 9/16" Diameter Shackle Bolts
(6) 9/16" Locknuts
No hangers = nowhere to mount your springs
Worn hardware = sloppy suspension and premature wear
This is what makes the whole system actually work.
WHY THIS KIT SELLS HARD
Because it eliminates the biggest mistake people make:
Buying everything separately and hoping it fits.
With this kit:
• Everything matches
• Everything fits
• Everything installs clean
• Everything shows up together
No guessing. No chasing parts. No returns.
BUILT TO REPLACE THE BIG NAMES
Direct replacement for:
Dexter
Lippert
AL-KO
Rockwell American
Hayes
Most standard trailer axles
Same fit. Better value. No inflated pricing.
FEATURES THAT ACTUALLY MATTER
• Pre-wired for brake upgrades
• Brake flange already installed
• Heavy 3" tube with 1/4" wall
• Fast Lube spindles (ez lube) (easy maintenance)
• Forged aluminum grease caps
• Fully assembled axle
• Matched suspension + wheel setup
HOW TO CALCULATE SHIPPING
No guessing here — you see shipping before you pay.
-
Add item to cart
-
Click cart icon
-
Scroll to Shipping
-
Enter zip code + state
-
Click Calculate
Instant shipping cost before checkout.

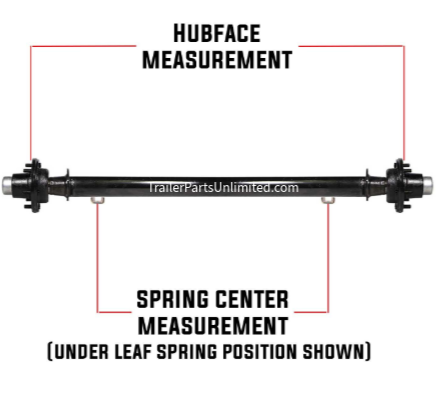

HOW TO MEASURE YOUR AXLE (DO THIS RIGHT)
Hub Face (HF)
Measure from one hub face to the other (where studs stick out). this measurement can very a little bit, its not as important as the spring center measurement

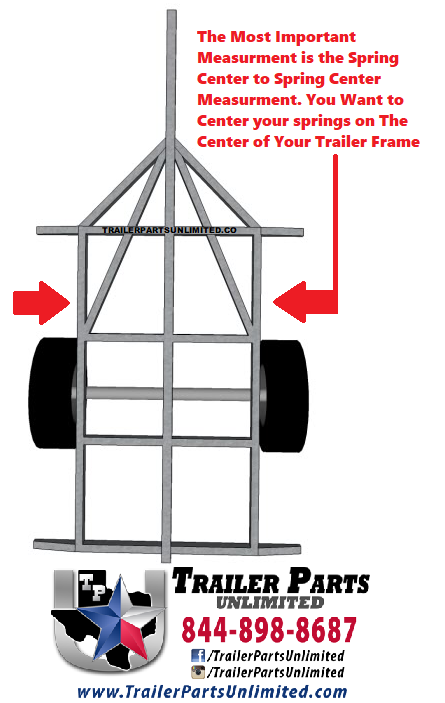

Spring Center (SC)
Measure from center of one spring to center of the other. this measurement is very important so double and triple check!
What to Expect
There is typically about a 15" difference
(About 7-1/2" per side)
If you don’t measure, you’re guessing.
If you guess, you risk ordering wrong.
WHO THIS KIT IS FOR
• Utility trailers
• Equipment trailers
• Landscape trailers
• Replacement builds
• New builds
STRAIGHT UP
If you want:
• The right parts the first time
• A setup that actually fits
• A kit you can install and move on
This is it.
