Product Description
This 7,000 lb single trailer axle kit makes it very easy to upgrade your existing axles on your trailer. Typically, on most smaller trailer axles, the manufactures use the common 1-3/4" double eye springs. If that is your case, this kit allows you to upgrade to 7000 lb axles without any welding or fabrication. Easily unbolt your current springs and drop the axle, put the new heavier duty springs on the new 7k trailer axle, and bolt back into place. Simple and easy.
Kit Includes:
(1) 7,000 lbs. Electric Brake Trailer Axle 8 lug
(2) 6 leaf 1-3/4” wide Double Eye springs
(1) 3” U-bolt kit (1 kit per axle)
(1) Single Trailer Axle Hanger Kit
(2) 16” Trailer Tire Wheel Combos 8 Lug
(everything you need to install axles on trailer and get you on the road)
Axle Specs & Features:
Axle Brand: Carter
Capacity per Axle: 7,000 lbs
Axle hub Drum - 8 Lug on 6.5" bolt pattern
Brakes: 12” x 2” Auto Adjusting Electric Brake
Axle Beam - 3" Round Tube
Axle Hub Cap - Fast Lube Grease (EZ-Lube)
Axle Studs - 9/16"
Replaces Dexter, AL-KO, Hayes,Lippert Axles, and Just about any other brand axle.
Axles come fully assembled
Axles are pre-wired in the axle tube.
Packed with High-Temp Axle Grease.
Posi-Lube / EZ-Lube Design.
Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.
Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs) which Allows for lower ride height. For optimal usage, use with double eye springs
Powder coated black.

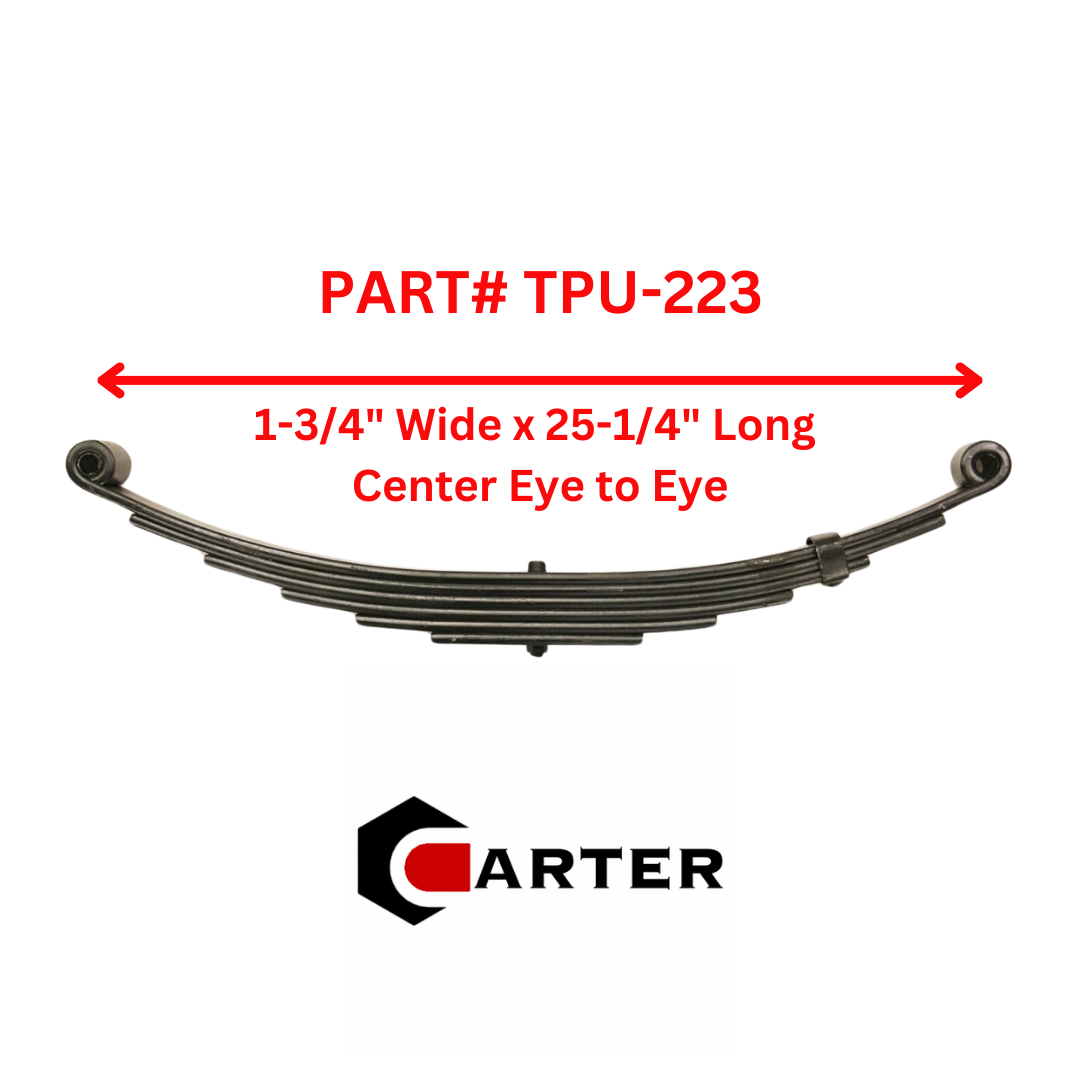

Slipper Spring Specifications:
6 Leaf 1-3/4" Wide Double Eye Spring 3.5k Cap. 24-7/8" eye to eye.
Measures 1-3/4" wide and 25-1/4" long from eye to eye.
Spring Type: Double Eye
Capacity per spring: 3,500 lbs
Leaves: 6
Eye Bushing Inner Dimension: 9/16"
Arch Height: 3"-3.25"
Spring Eye size: 9/16"

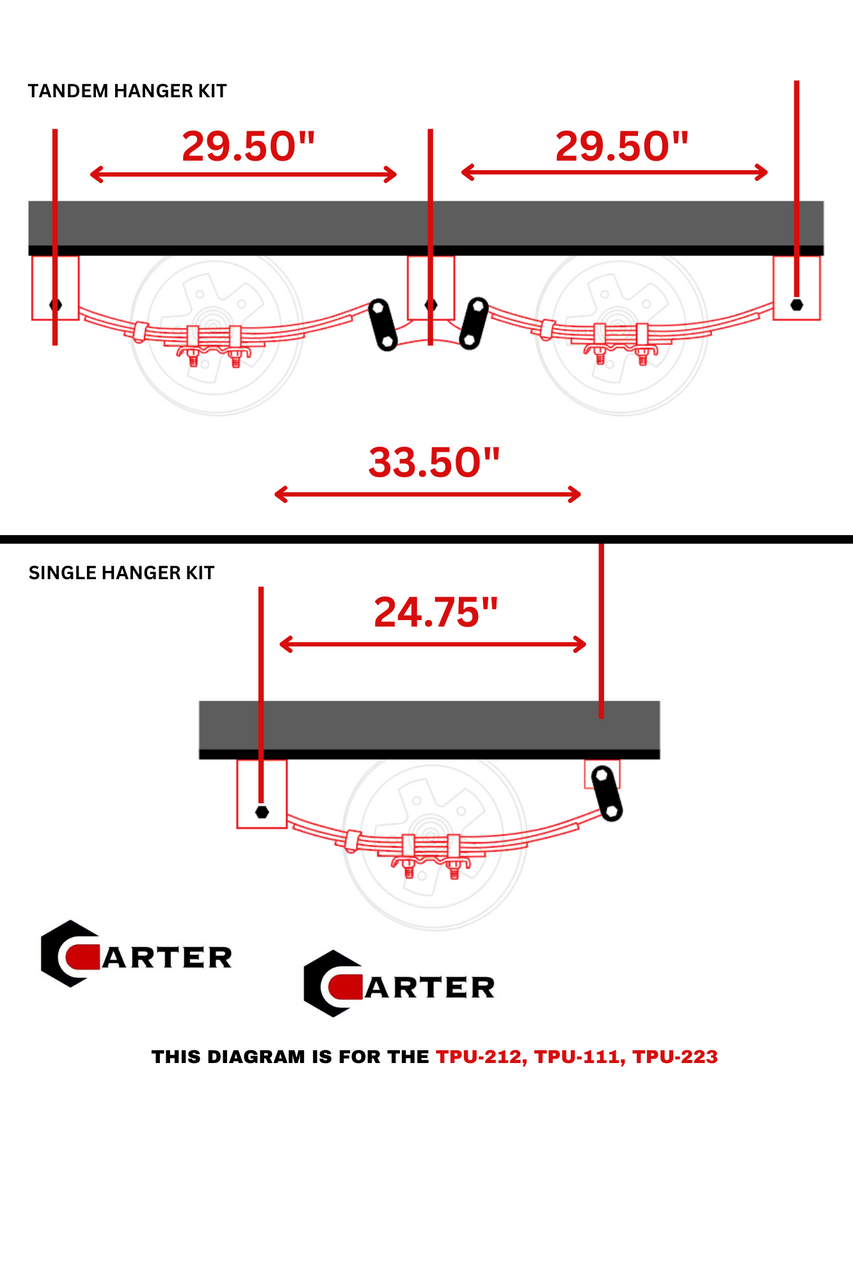

Single Hanger Kit Specs:
Includes:
(2) 3-1/4" Tall front hangers
(2) 1-1/4" Tall rear hangers
(4) 3-1/8" Long shackle straps
(6) 3" Long x 9/16" diameter shackle bolts
(6) 9/16" Diameter locknuts
Designed for use on trailers with single, 2,000-lb to 7,000-lb axles
3" U-Bolt kit Includes:
(4) 9/16"-18 x 7-1/4" L 3" Tube U-bolts.
(8) 9/16"-18 U-bolt nuts.
(2) Tie Plates for 3" Wide Axle Tubing u bolts.
This Kit is all the u-bolts and hardware for one complete axle.
Choose Your Tire Wheel Size:
ST235/80R16 10-ply LRE Trailer Tire Mounted on Silver Mod Wheel 8x6.5” bolt pattern rated at 3650 lbs per tire
Or
ST235/85R16 14-Ply LRG Trailer Tire Mounted on Silver Mod Wheel 8x6.5” Rated at 4000 lbs per tire
Or
ST235/85R16 16-Ply LRH Trailer Tire Mounted on Silver Mod Wheel 8x6.5” Rated At 4,540 lbs per tire

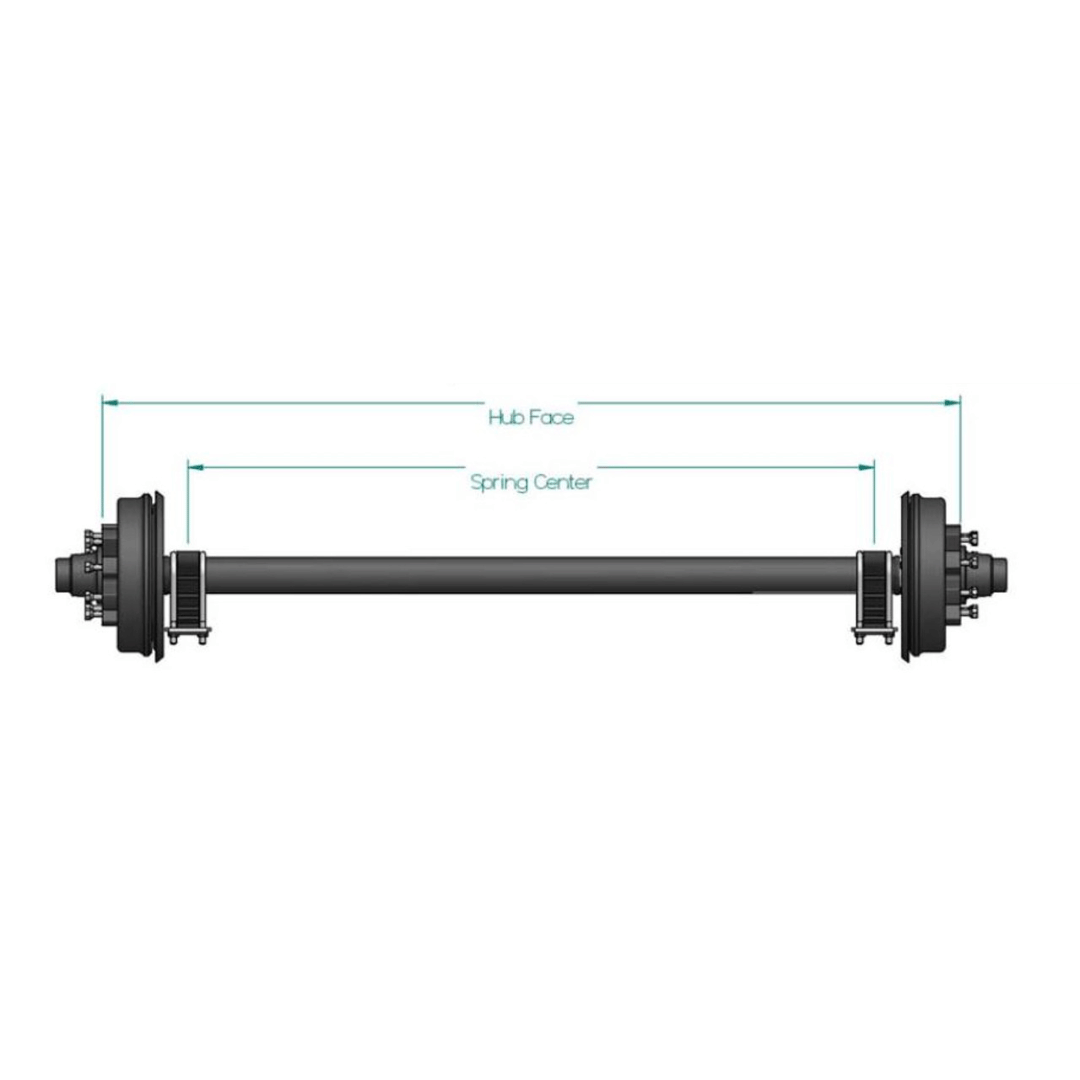

How to properly measure your axle:
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.
Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about a 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)
