Product Description
The 7K Single Trailer Axle Kit is built for heavy-duty towing, whether you're building a trailer or upgrading your current axle. It includes a fully assembled Carter 7,000 lbs axle, slipper springs, and a U-bolt kit. Add the optional APS6SE hanger kit for a secure installation with all weld-on brackets and bolts included. Designed for durability and reliability, this kit ensures your trailer is road-ready.
What’s Included:
-
(1) 7,000 lbs Fully Assembled Carter Trailer Axle with heavy-duty 9/16" studs, Fast Lube spindles, and 8-lug hubs (8x6.5” bolt pattern).
-
(2) TPU-161 Slipper Springs (6-leaf, 2" wide x 29-1/2" long).
-
(1) 3" U-Bolt Kit for secure axle attachment to springs.
-
Optional: APS6SE Single Axle Hanger Kit, includes all weld-on hanger brackets and bolts required for installation.
Key Features:
-
7,000 lbs Capacity: Built to handle substantial trailer loads with confidence.
-
8-Lug Hubs with 9/16" Studs: Compatible with both 16" and 17.5" tires and wheels.
-
Slipper Springs: Upgraded Heavy Duty TPU-161 springs ensure durability and smooth towing.
-
Fully Assembled Axle: Comes ready to install, saving time and effort.
-
Powder-Coated Axle Tubes: Corrosion-resistant finish with 3" diameter and 3/8" thick walls—the heaviest on the market.
-
Fast Lube (EZ Lube) Spindles: Simplifies hub maintenance with convenient greasing.
-
EZ Fast Lube Aluminum Grease Caps: Heavy-duty caps resist bending, breaking, or going out of round while maintaining compatibility with old-style caps.
-
Optional APS6SE Hanger Kit: Includes all brackets and bolts for a secure, precise installation.
Trailer Axle Specifications:
-
Axle Capacity: 7,000 lbs
-
Bolt Pattern: 8 on 6.5” (8x6.5”)
-
Stud Size: 9/16”
-
Axle Tube: Round 3” outer diameter, ⅜” thick, powder-coated black, HEAVIEST 7K TUBE ON MARKET
-
Spring Pads: Pre-welded unless "pads loose" option is selected (welding available for an additional cost)
-
Bearings: Inner - 25580, Outer - 1415A
-
Seal: 10-36
-
Spindles: Fast Lube EZ Lube grease spindles
-
Assembly: Axle comes fully assembled
-
Pre-Wired Axle: Pre-wired in case you want to add brakes in the future.
-
Brake Flange: Includes a 5-bolt brake flange for easy brake installation if needed.

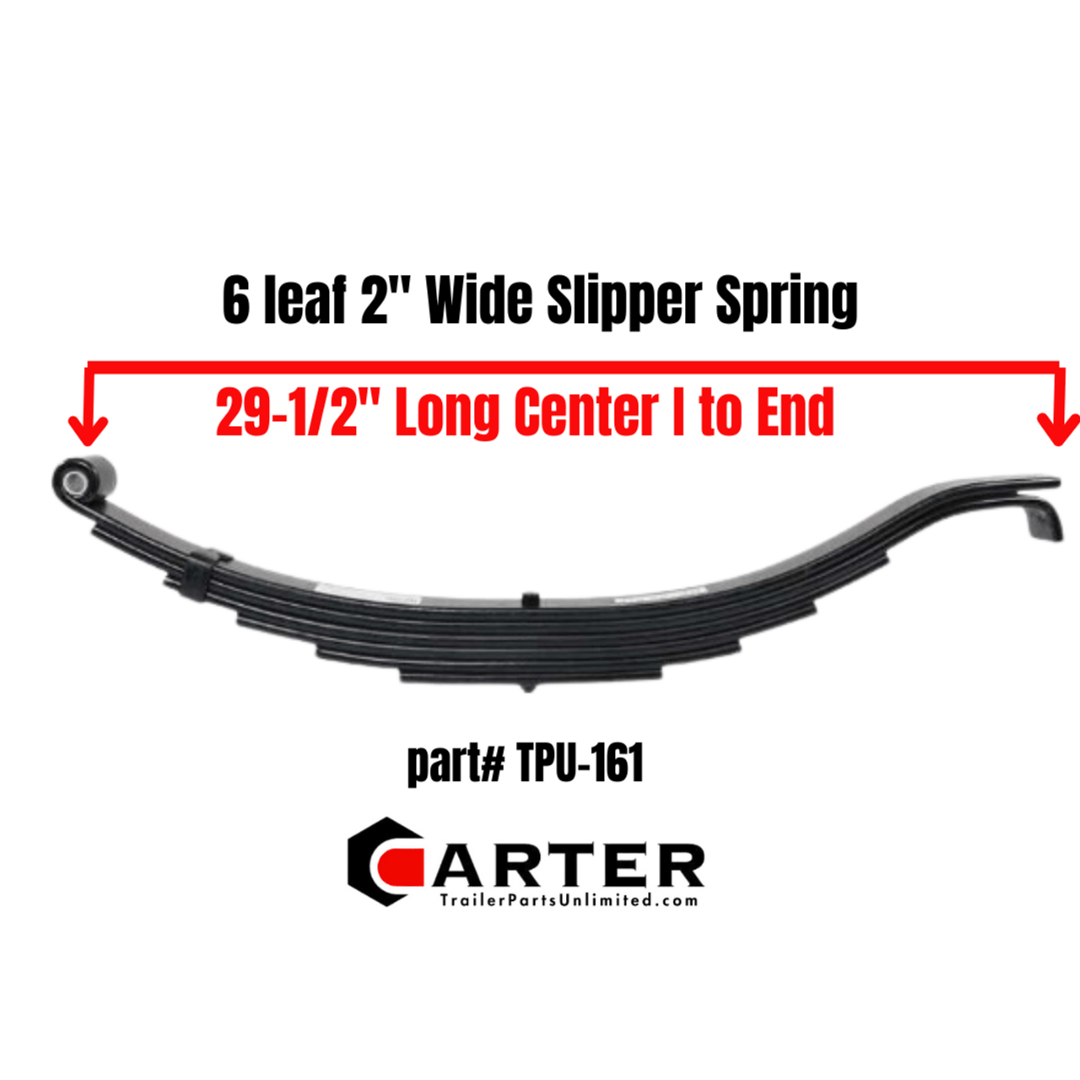

Leaf Spring Specifications:
-
Part Numbers: TPU-161, E5115
-
Length: 29-1/2” from center eye to end
-
Capacity: 4,000 lbs per spring
-
Width: 2”
-
Leaf Count: 6

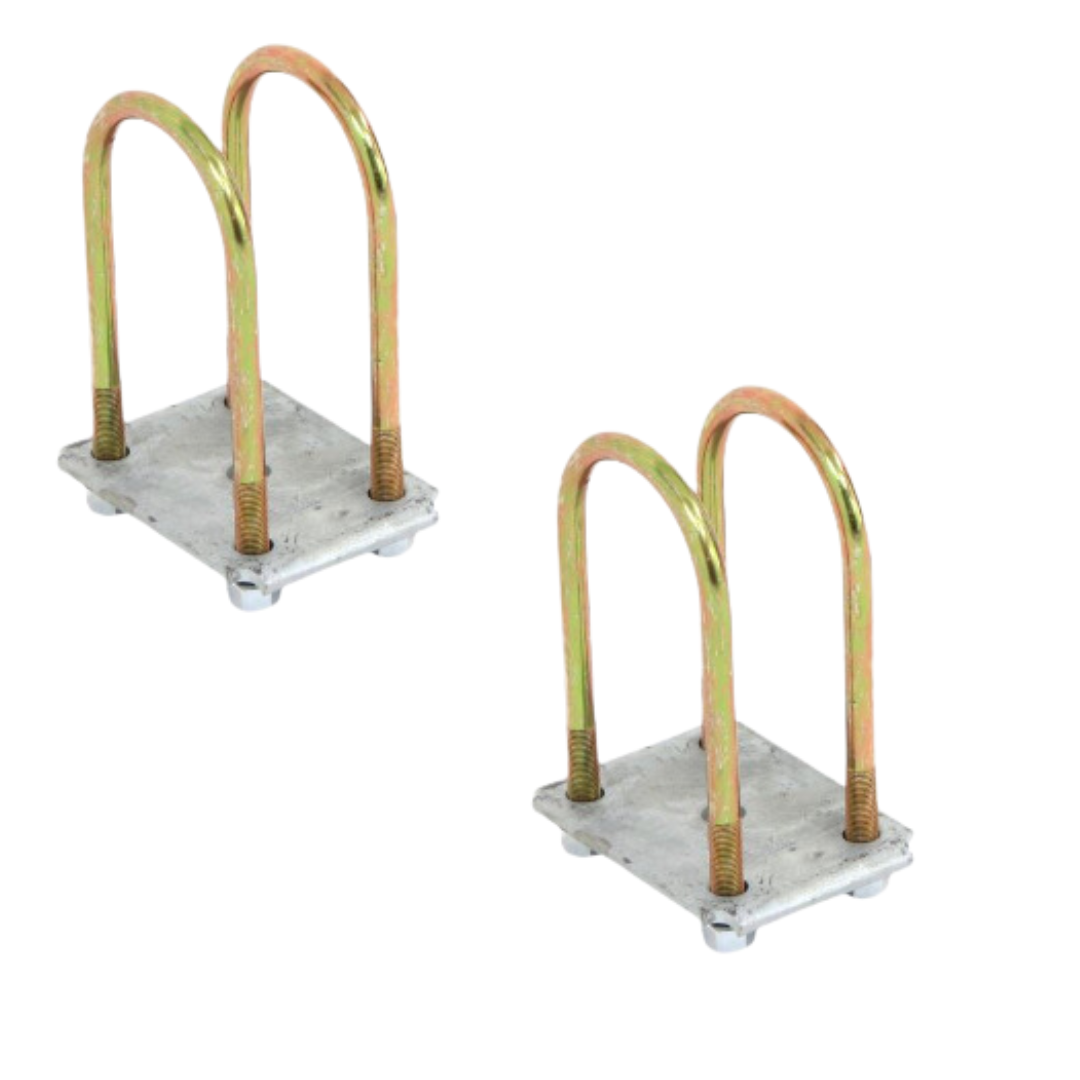

U-Bolt Kit Specifications:
-
Kit Covers: One axle
-
Includes:
-
4 U-bolts & nuts
-
2 Tie plates

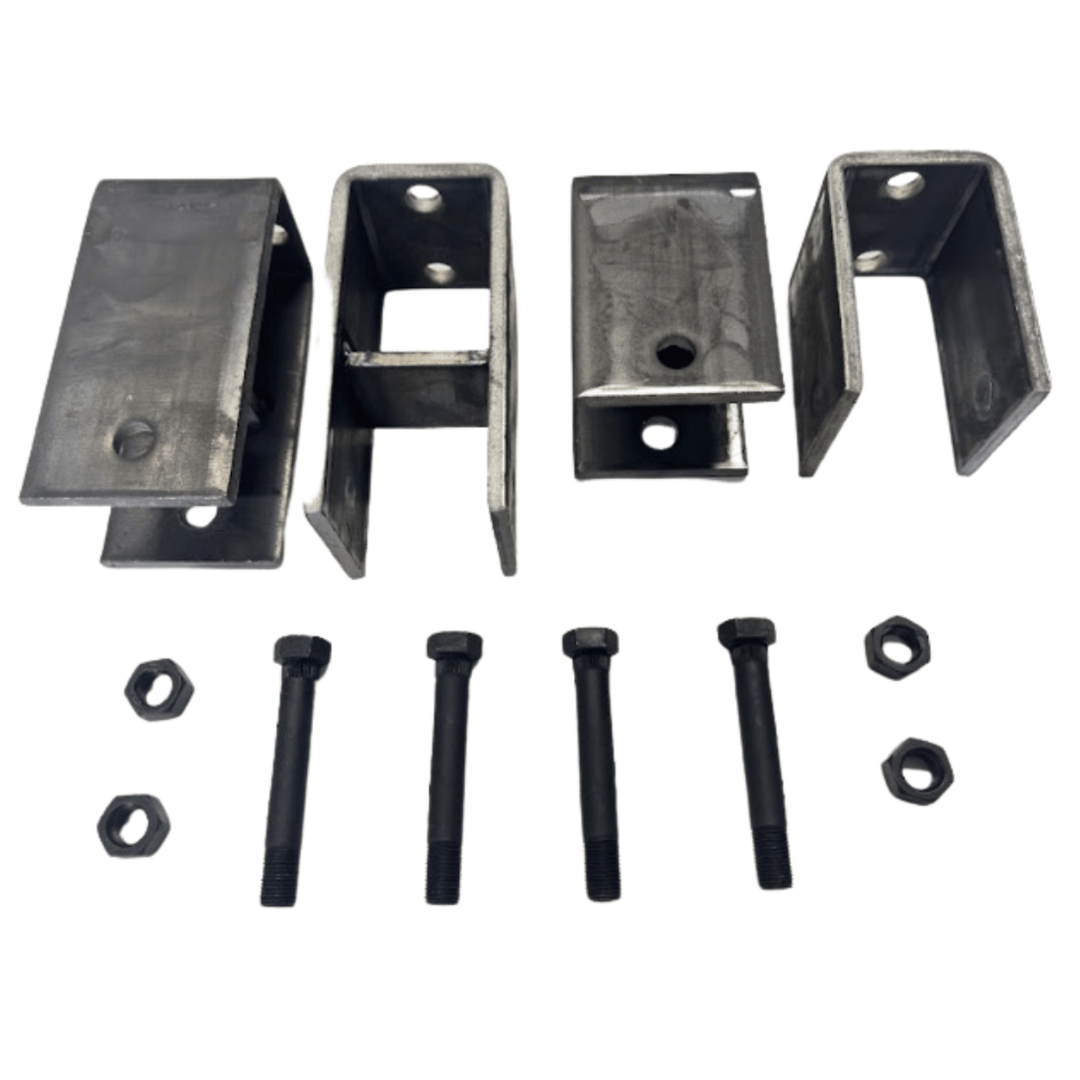

Hanger Kit Specifications:
-
Part Number: APS6SE
-
Clearance: Achieves 4-3/4" or 5" clearance depending on axle size.
-
Includes:
-
(2) 3-3/4" tall front hangers
-
(2) 5-1/6" tall rear hangers
-
(4) 3-1/2" long x 9/16" diameter shackle bolts
-
(4) 9/16" diameter locknuts
Why Choose Carter Axles?
100% Interchangeable with Dexter Axles and Parts:
Carter Axles provide seamless compatibility, ensuring replacements are always easy to find nationwide.
Built to Last:
Featuring powder-coated tubes, slipper springs, and heavy-duty grease caps, Carter Axles are designed to deliver unmatched durability and reliability.
Exceptional Value:
Carter Axles offer premium features at a fraction of the cost of big-name brands, providing the strength and reliability needed for tough jobs.
