Product Description

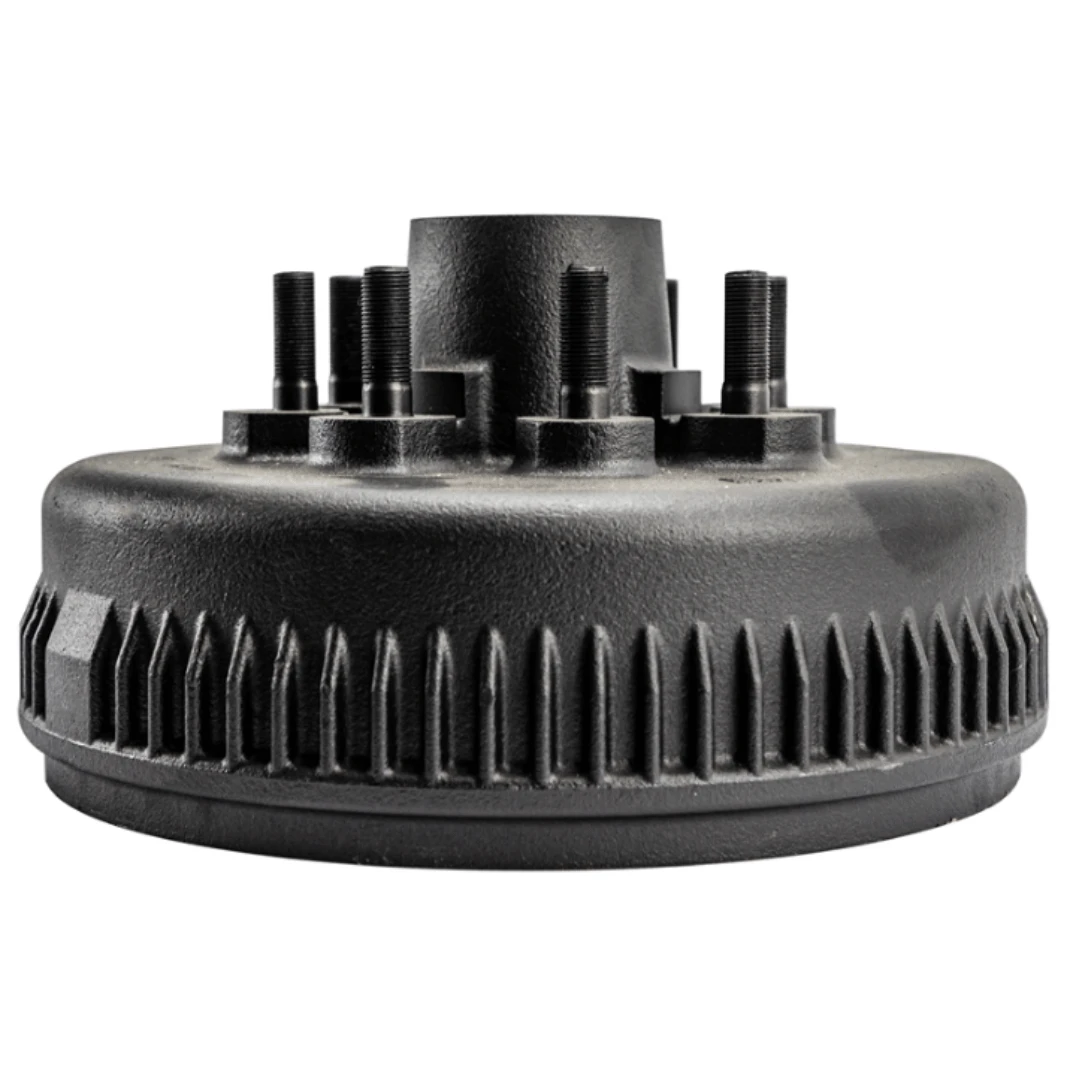

Carter Brand 7.2K–8K Hybrid Trailer Axle Hub / Drum
Direct Replacement for Dexter 7,200 lb & 8,000 lb Hybrid Axles – 5/8" Studs – Oil Bath
This is the Carter brand direct replacement hub and drum built to interchange with Dexter 7,200 lb and 8,000 lb hybrid trailer axles that use 5/8" wheel studs and oil bath lubrication.
Designed specifically for Dexter-style hybrid axles manufactured after May 2000 with cast backing plate electric brakes. This hub uses a screw on oil/grease cap.
Works with:
-
Electric or hydraulic drum brake assemblies
-
Oil bath or grease hub applications
-
16” and 17.5" single tires and wheels
- 8 on 6.5" bolt pattern
Hub comes complete with:
-
5/8" wheel studs installed
-
Inner and outer races installed
Bearings and oil seal sold separately.
Internal Specifications
Bearings (Sold Separately):
Inner Bearing: 25580 (1.750" ID)
Outer Bearing: 02475 (1.250" ID)
Races (Included & Installed):
Inner Race: 25520
Outer Race: 02420
Oil Seal (Sold Separately – 10-63 or 010-063-00):
Inner Diameter: 2.250"
Outer Diameter: 3.376"
Main Specifications
Construction: Cast iron
Finish: Black painted
Drum Size: 12-1/4" diameter x 2-1/2" wide
Hub Pilot Diameter: 4.75"
Bolt Pattern: 8 on 6.5"
Stud Size: 5/8"
Axle Rating: 7,200 lb & 8,000 lb Hybrid
Per Hub Capacity: 3,600 lb
This Carter hub and drum is built to fully interchange with Dexter hybrid axle components, giving you the same fit and function without overpaying for the name stamped on the box.
