Product Description

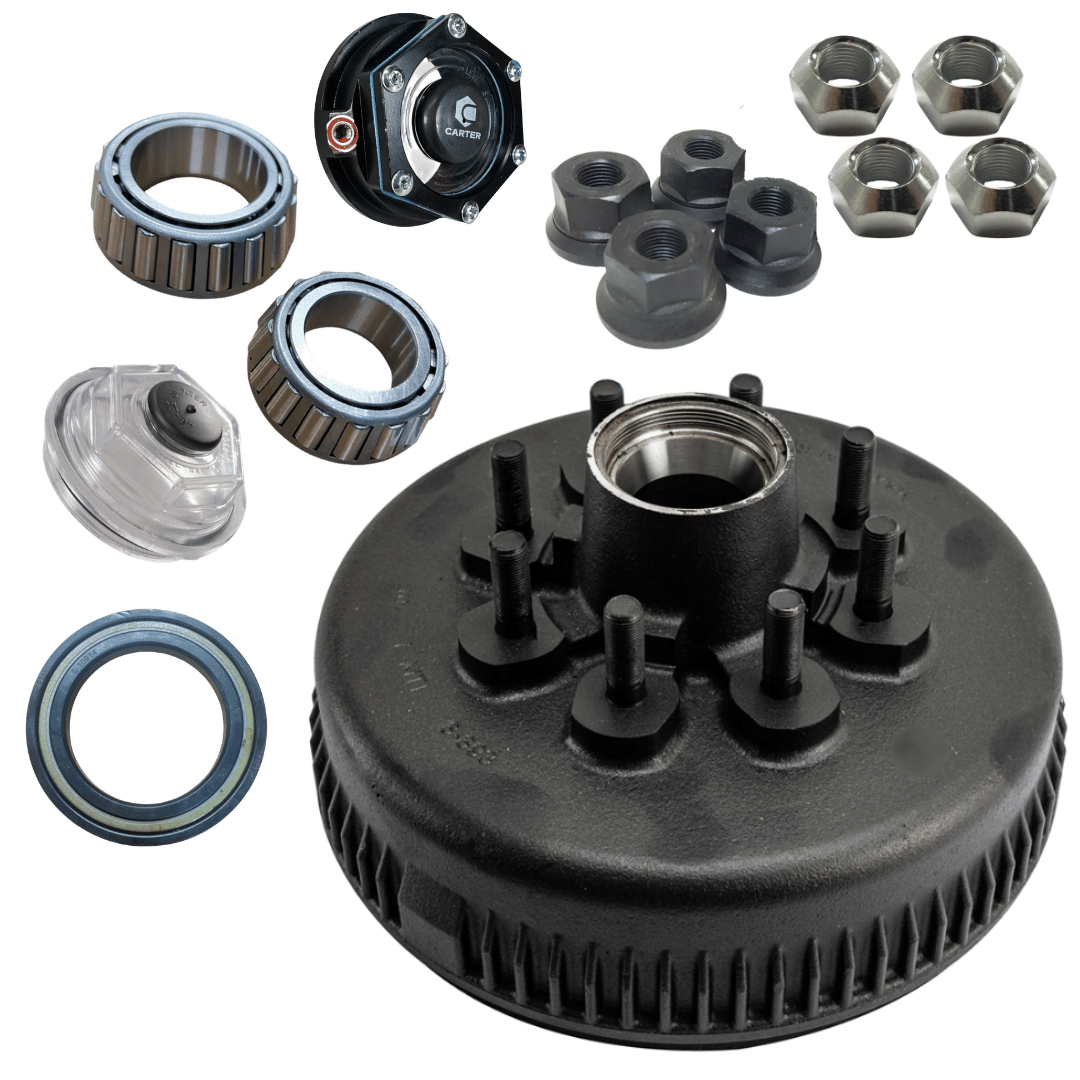

Carter Brand 7.2K–8K Hybrid Trailer Axle Hub / Drum – Complete Assembly
Direct Replacement for Dexter 7,200 lb & 8,000 lb Hybrid “New Style” Axles – 5/8" Studs – Fully Loaded
This is the Carter Brand complete hub and drum assembly built to fully interchange with Dexter 7,200 lb and 8,000 lb Hybrid “New Style” trailer axles using 5/8" studs and oil bath or grease lubrication.
Designed specifically for Dexter-style axles using 12-1/4” x 2-1/2” drum brakes.
This unit comes COMPLETE and ready to install.
Works With:
- Electric or hydraulic drum brake assemblies
- Oil bath or grease hub applications
- 16” and 17.5” single tire and wheel setups
Complete Assembly Includes
- 5/8" wheel studs installed
- Inner and outer races installed
- 25580 inner bearing
- 02475 outer bearing
- 10-63 oil/grease seal (010-063-00)
- Oil or grease cap
- 8 lug nuts of your choice
- No chasing parts. No extra orders. Everything you need in one box.
Internal Specifications
- Inner Bearing: 25580 (1.750" ID)
- Outer Bearing: 02475 (1.250" ID)
- Inner Race: 25520 (installed)
- Outer Race: 02420 (installed)
- Oil Seal: 10-63 / 010-063-00
- Seal ID: 2.250"
- Seal OD: 3.376"
Main Specifications
- Construction: Cast iron
- Finish: Black painted
- Drum Size: 12-1/4" diameter x 2-1/2" wide
- Hub Pilot Diameter: 4.75"
- Bolt Pattern: 8 on 6.5"
- Stud Size: 5/8"
- Axle Rating: 7,200 lb & 8,000 lb Hybrid “New Style”
This Carter hub is built to match Dexter hybrid axle specs exactly — same dimensions, same bearing setup, same brake size — without the inflated OEM price.
