Product Description

Triple Trailer Axle Kit with Three 6000 lb Electric Brake Axles and Suspension Components

Build a new trailer or replace worn suspension components with this complete triple trailer axle kit. This package includes three fully assembled 6000 lb electric brake trailer axles, six double eye leaf springs, three U-bolt kits, and an optional triple axle hanger kit.

Everything needed to install a complete triple trailer suspension system is included in this kit.

Each axle comes fully assembled with self-adjusting 12 inch x 2 inch SELF ADJUSTING electric brakes, 6 lug hub and drum assemblies, EZ Fast Lube spindles, pre-greased bearings, upgraded forged aluminum grease caps, and pre-wired axle tubing for quick and easy brake installation.

Compatible with Dexter, Lippert, AL-KO, Hayes, Rockwell American, Carter, and most other trailer axle brands.

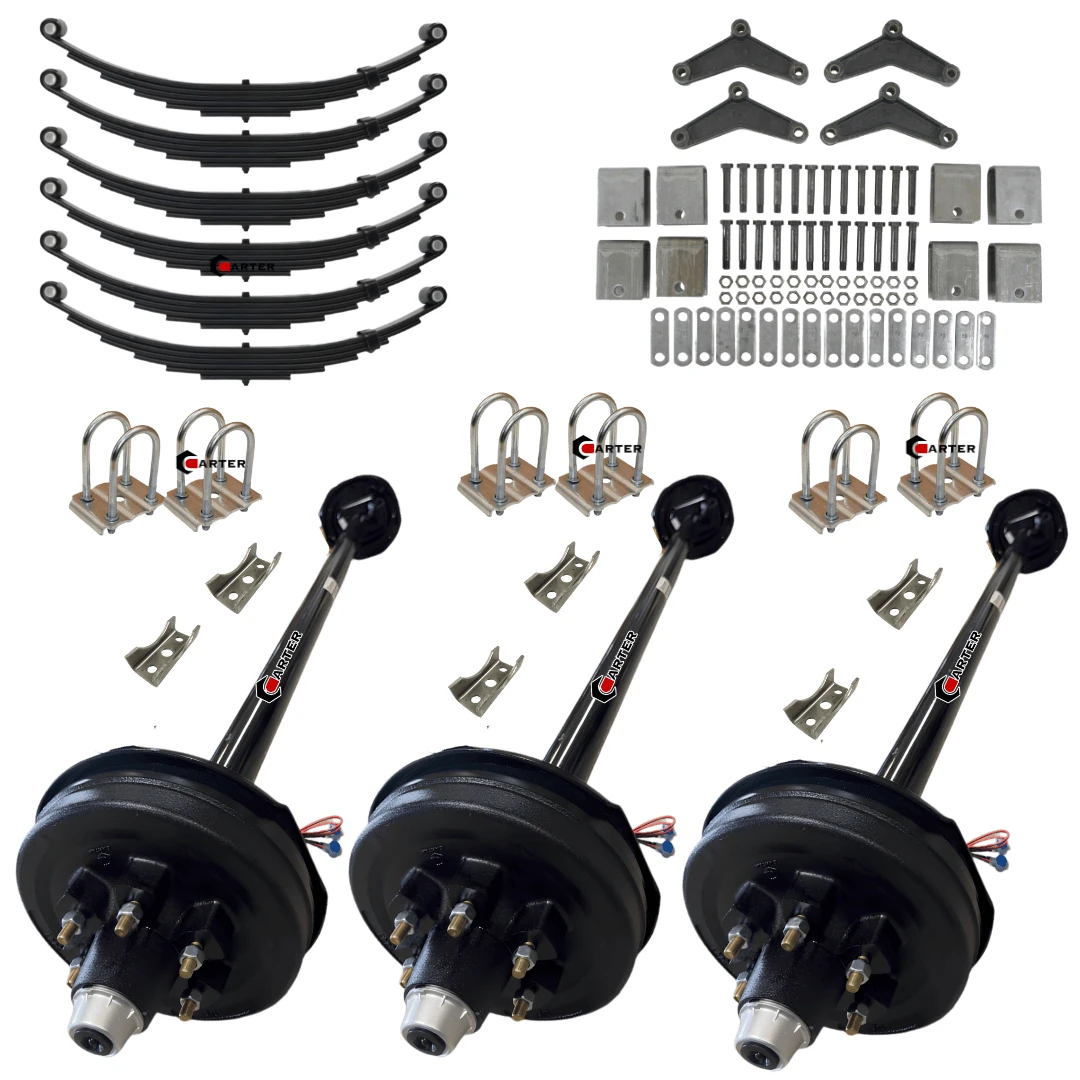

Kit Includes

• (3) 6000 lb Electric Brake Trailer Axles

• (6) 6 Leaf Double Eye Springs 25-1/4 Inch Long

• (3) 3 Inch U-Bolt Kits

• (1) Triple Axle Hanger Kit (Optional)

Combined axle capacity is 18,000 lbs when properly installed.

Axle Specifications

• Capacity Per Axle: 6000 lbs

• Hub Type: 6 Lug Hub and Drum

• Bolt Pattern: 6 on 5.5

• Brake Type: Self Adjusting 12 Inch x 2 Inch Electric Brakes

• Brake Flange: 5 Bolt Brake Flange

• Axle Tube Pre-Wired for Easy Installation

• Axle Tube Diameter: 3 Inch

• Axle Tube Wall Thickness: 1/4 Inch

• Stud Size: 1/2 Inch

• EZ Fast Lube Spindles

• Upgraded Aluminum Forged EZ Fast Lube Grease Caps with Rubber Plug

• Packed with High Temperature Grease

• Fully Assembled Ready to Install

• Powder Coated Black Finish

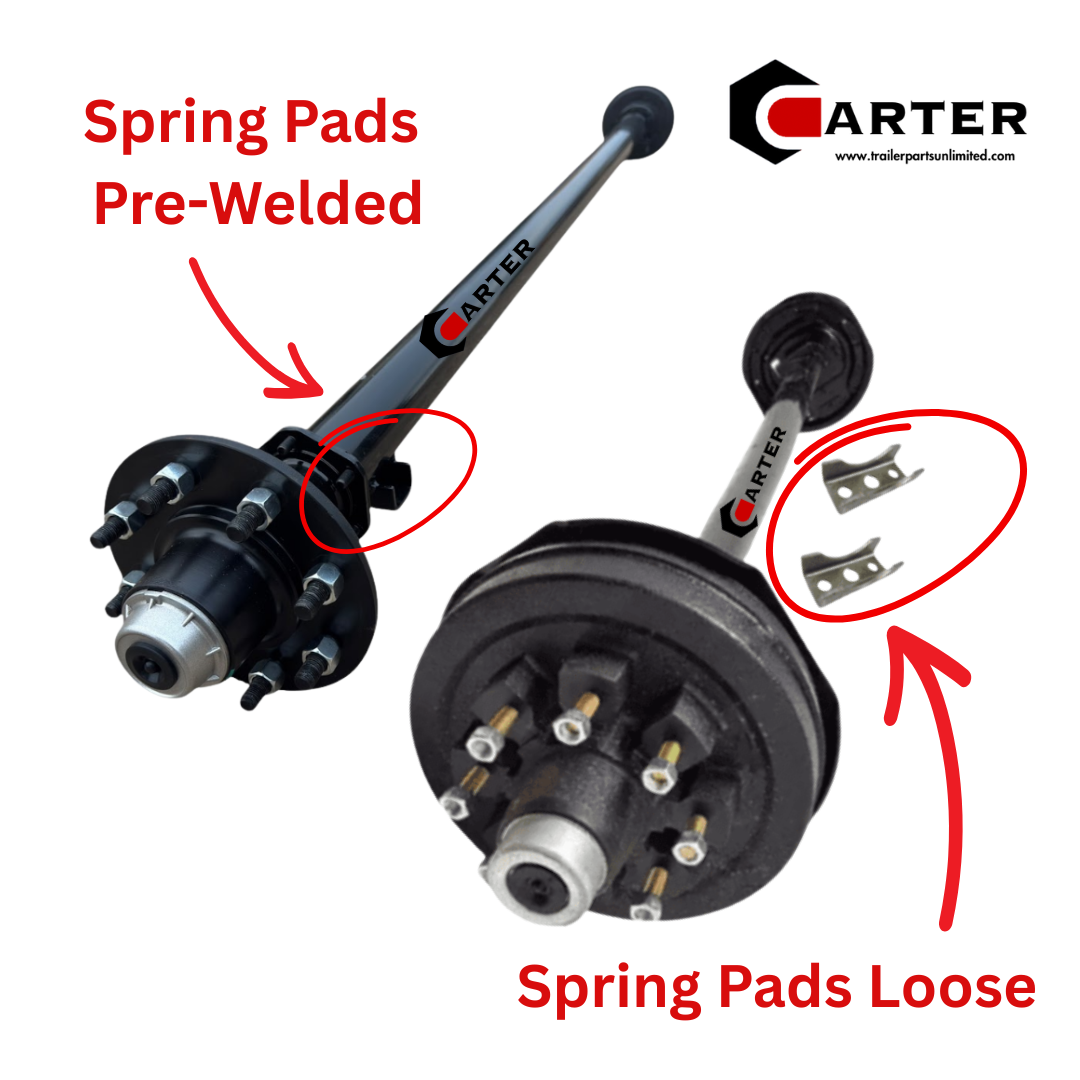

Spring Pad Options

Choose spring pads welded on for an underslung axle where the springs mount underneath the axle and the axle sits on top of the springs.

Choose loose spring pads if you want the flexibility to weld them yourself for either an underslung or overslung suspension.

Need custom spring pad placement? We can weld the spring pads exactly where you need them for an additional charge. Simply leave your desired spring center measurement and spring pad location in the order notes during checkout, and we will contact you to confirm your order before building your axles.

Axle Features

• Three Fully Assembled Electric Brake Axles

• Self Adjusting 12 Inch x 2 Inch Electric Brake Assemblies

• Hubs and Brake Drums Installed and Pre-Greased

• Heavy Duty Steel Construction

• 5 Bolt Brake Flanges

• Axle Tubes Pre-Wired for Easy Brake Installation

• EZ Fast Lube Spindle Design

• Grease Zerk Fittings Built Into The Spindles For Easy Bearing Maintenance

• Rubber Plug Hub Caps Allow Quick Access To The Grease Fittings

• Compatible with Dexter, Lippert, AL-KO, Hayes, Rockwell American, Carter and Most Other Trailer Axle Brands

• Designed for Long Service Life and Dependable Towing

Double Eye Spring Specifications

• Spring Type: Double Eye Leaf Spring

• Capacity Per Spring: 3500 lbs

• Number of Leaves: 6

• Length Eye to Eye: 25-1/4 Inches

• Width: 1-3/4 Inches

• Eye Diameter: 9/16 Inch

Optional Triple Axle Hanger Kit

Designed for 1-3/4 Inch Wide Double Eye Springs.

Includes all hangers, equalizers, shackle links, spring bolts, lock nuts, and installation hardware required for a complete triple axle suspension system.

3 Inch U-Bolt Kit Specifications

Each U-Bolt Kit Includes:

• (4) 9/16-18 x 7 Inch U-Bolts

• (8) 9/16-18 U-Bolt Nuts

• (2) Tie Plates for 3 Inch Axle Tubing

One U-Bolt Kit contains all hardware required for one complete axle.

Common Applications

• Equipment Trailers

• Utility Trailers

• Car Haulers

• Flatbed Trailers

• Gooseneck Trailers

• Cargo Trailers

• Enclosed Trailers

• Landscape Trailers

• ATV Trailers

• Motorcycle Trailers

• RV Trailers

how to measure your trailer axle

**Hub Face Measurement

Measure from the face of one hub where the wheel studs protrude to the face of the hub on the opposite side.

*Spring Center Measurement

Measure from the center of one spring seat to the center of the spring seat on the opposite side.

Most trailer axles have approximately 15 inches difference between the Hub Face measurement and the Spring Center measurement. (7-1/2" PER SIDE)

Shipping

This item ships by freight on pallets.

To calculate shipping, add the item to your cart, click the shopping cart icon, select Shipping, enter your zip code and state, then click Calculate.

Shipping charges will be displayed before checkout.

Bulk discounts and manufacturer pricing are available.
