Product Description
14K Tandem Axle Trailer Kit With 2 Brake Axles Tires and Wheels
COMPLETE KIT • 2 BRAKE AXLES • 8 LUG • TIRES AND WHEELS INCLUDED
Need to replace your trailer axles or build a new trailer?
This complete 14,000 lb tandem axle trailer kit gives you the major parts you need in one package.
You get 2 complete 7,000 lb electric brake axles, springs, U bolt kits, heavy duty tandem suspension hardware, and 4 trailer tire and wheel combos of your choice.
Both axles come fully assembled with self adjusting electric brakes already installed.
WHAT COMES WITH THIS KIT
2 7,000 lb Electric Brake Trailer Axles
4 12 inch x 2 inch Self Adjusting Electric Brake Assemblies
4 8 Lug 6.5 inch Hub and Drums With 9/16 inch Studs
4 Slipper Leaf Springs of Your Choice
2 Complete 3 inch U Bolt Kits
1 Heavy Duty Tandem Hanger Kit
4 Trailer Tire and Wheel Combos of Your Choice
CUSTOM SPRING PAD PLACEMENT
Need your spring pads welded in a custom location?
We can do that.
We can weld your spring pads to your required Spring Center measurement for an additional charge.
If the measurement you need is not listed in the available options, simply tell us exactly where you need your spring pads welded.
Weld My Spring Pad Seats On For Me
7K AXLE SPECS
Capacity: 7,000 lbs Per Axle
Total Axle Capacity: 14,000 lbs
Axles: 2 Electric Brake Axles
Bolt Pattern: 8 Lug on 6.5 inch
Brakes: 12 inch x 2 inch Self Adjusting Electric Brakes
Axle Tube: 3 inch Round
Tube Wall: 1/4 inch
Wheel Studs: 9/16 inch
Brake Flange: 5 Hole
Lubrication: High Temperature Grease
Spindles: EZ Fast Lube
Wiring: Pre Wired Through Axle Tube
Finish: Black Powder Coated
Assembly: Fully Assembled
WHAT DOES FULLY ASSEMBLED MEAN?
We make it simple.
Your axles arrive with the important parts already installed.
Hubs and drums installed
Bearings and seals installed
Self adjusting electric brakes installed
Bearings packed with high temperature grease
Axles pre wired for electric brakes
Ready to install on your trailer
You are not buying a pile of axle parts that you have to put together yourself.
BEARINGS AND SEALS
Inner Bearing: 25580
Inner Race: 25520
Outer Bearing: 14125A
Outer Race: 14276
Hub and Drum: 8 Lug on 6.5 inch
Grease Cap: KC21-43A
Wheel Stud: 23D25
WILL THESE REPLACE MY CURRENT AXLES?
In most cases, YES.
CARTER 7,000 lb trailer axles are designed to replace many common:
Dexter 7K Axles
Lippert 7K Axles
AL KO 7K Axles
Hayes 7K Axles
Other common 7,000 lb trailer axles
The brand name on your old axle is not the most important part.
Getting the correct measurements is what matters.

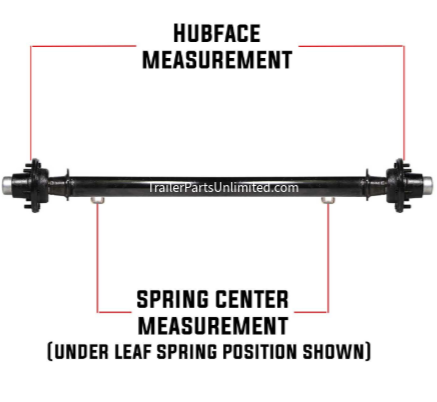

Before ordering, check these 2 important measurements.
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.

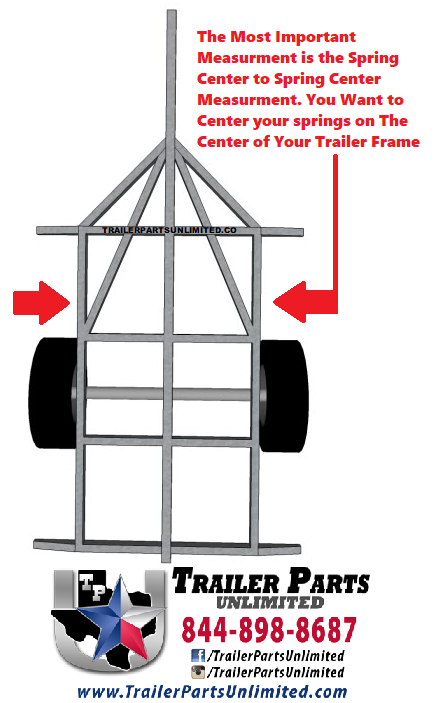

Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side)
CHOOSE YOUR LEAF SPRINGS
TPU-232
2 inch wide
27 inch long
5 Leaf Slipper Spring
TPU-161
2 inch wide
29 1/2 inch long
6 Leaf Slipper Spring
72-51
2 inch wide
26 5/8 inch long
7 Leaf Slipper Spring
Upgraded Rubber Bushings

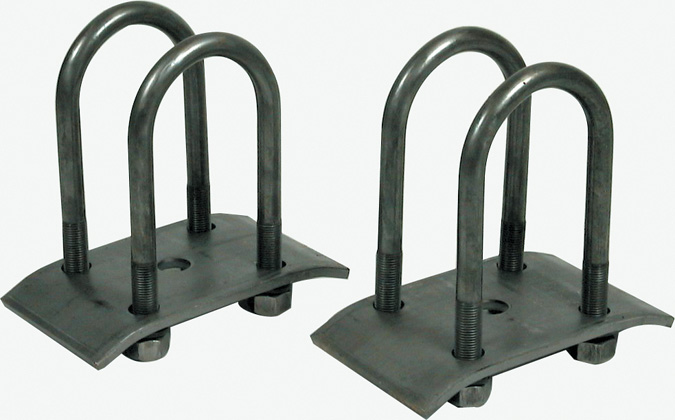

2 COMPLETE U BOLT KITS INCLUDED
You have 2 axles, so this package includes 2 complete U bolt kits.
EACH U BOLT KIT INCLUDES
4 U Bolts
8 Nuts
2 Tie Plates
One complete U bolt kit is used for each axle.

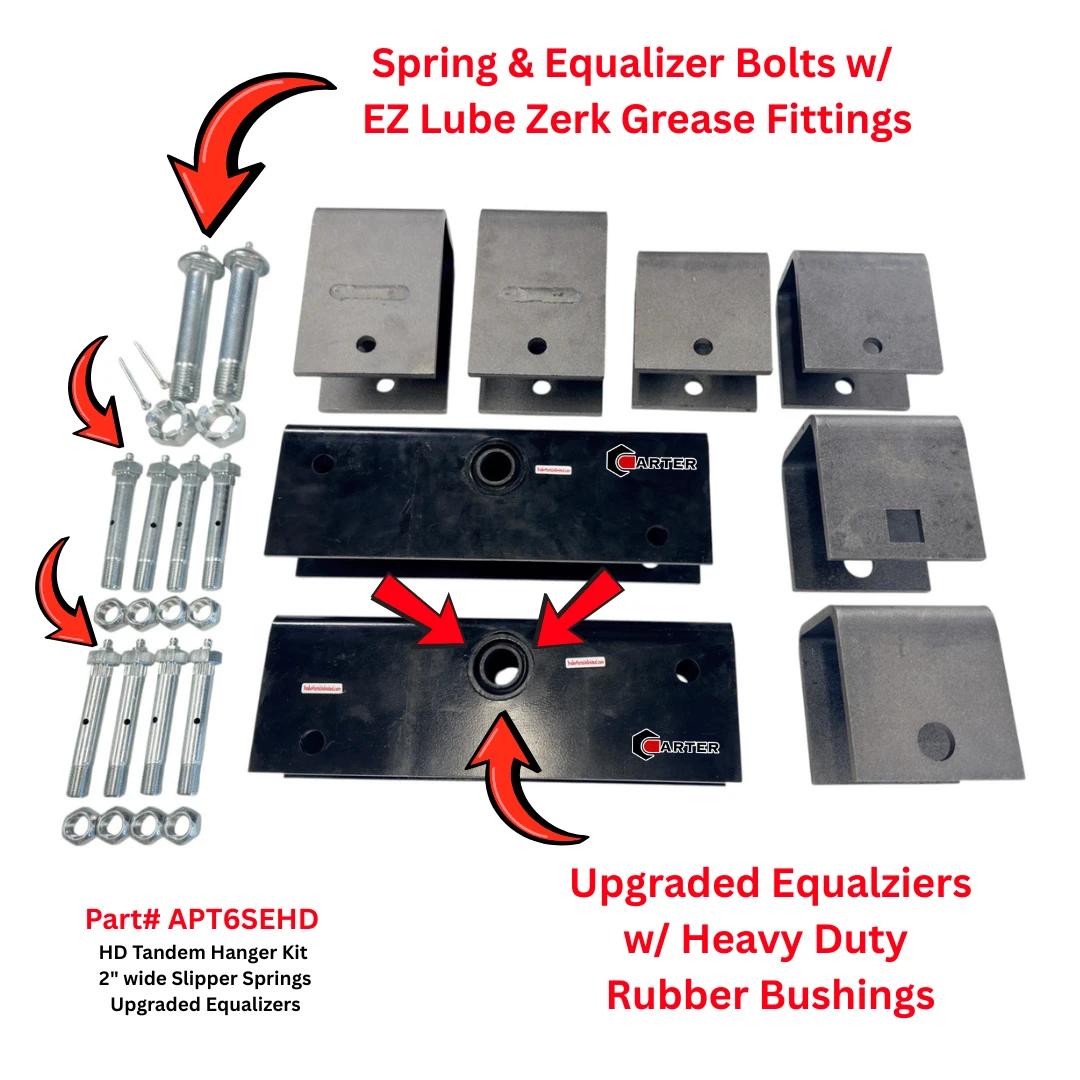

HEAVY DUTY TANDEM HANGER KIT
The tandem hanger kit connects your slipper springs to your trailer.
KIT INCLUDES
2 Front Hangers
2 Center Hangers
2 Rear Hangers
2 12 inch Equalizers With Upgraded Rubber Bushings
2 7/8 inch Equalizer Bolts With Grease Fittings
2 7/8 inch Castle Nuts With Cotter Pins
8 9/16 inch x 3 1/2 inch Spring Bolts With Grease Fittings
8 9/16 inch Lock Nuts
WHAT TRAILERS WILL THIS WORK ON?
This 14K tandem axle trailer kit is commonly used on:
Equipment Trailers
Car Haulers
Dump Trailers
Utility Trailers
Flatbed Trailers
Cargo Trailers
Enclosed Trailers
Farm Trailers
Landscape Trailers
ATV Trailers
Motorcycle Trailers
And many other heavy duty tandem axle trailers.
THE SIMPLE VERSION
HERE IS WHAT YOU GET
2 x 7,000 lb Electric Brake Axles
4 x Self Adjusting Electric Brakes
4 x 8 Lug Hub and Drums
4 x Leaf Springs
2 x Complete U Bolt Kits
1 x Heavy Duty Tandem Hanger Kit
4 x Trailer Tires and Wheels
TOTAL AXLE CAPACITY: 14,000 LBS
Everything is bundled together to make ordering your 14K tandem axle trailer kit as simple as possible.
Choose your axle measurements.
Choose your springs.
Choose your tires and wheels.
We take care of the rest.
