Product Description

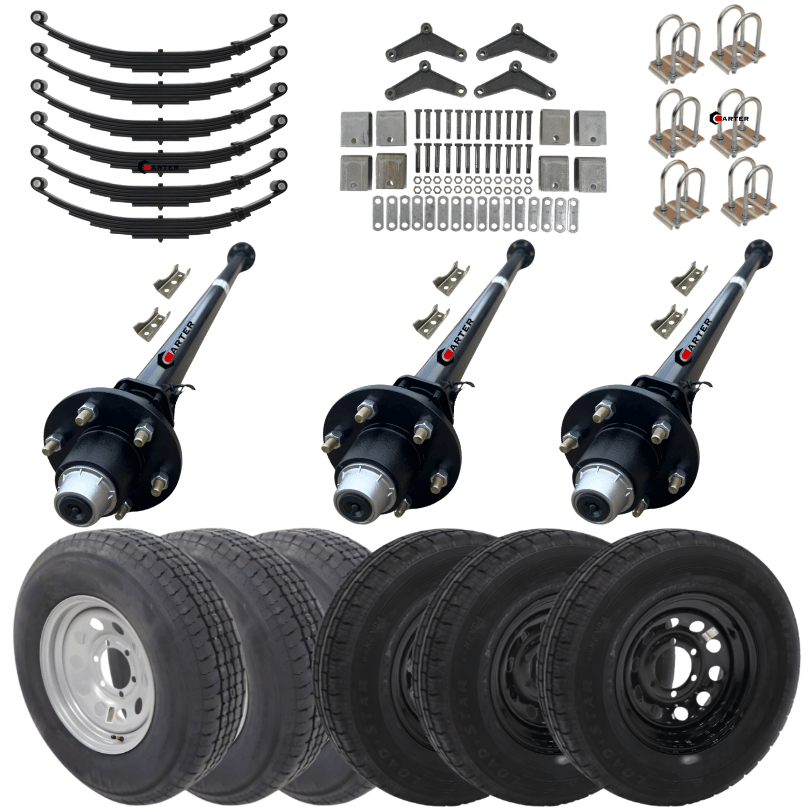

Triple Trailer Axle Kit with Three 6000 lb Idler Axles, Trailer Tires, Wheels and Suspension Components

Build a new trailer, replace damaged axles, or upgrade your existing trailer with this complete triple trailer axle kit. This package includes three fully assembled 6000 lb idler trailer axles, six double eye leaf springs, three U-bolt kits, your choice of trailer tire and wheel combinations, and an optional triple axle hanger kit.

Everything needed to install a complete triple trailer suspension system is included in this kit.

Each axle comes fully assembled with 6 lug idler hubs, EZ Fast Lube spindles, pre-greased bearings, upgraded forged aluminum grease caps, welded 5 bolt brake flanges, and pre-wired axle tubing, making it easy to add electric brakes now or later if desired.

Compatible with Dexter, Lippert, AL-KO, Hayes, Rockwell American, Carter, and most other trailer axle brands.

Kit Includes

• (3) 6000 lb Idler Trailer Axles 6 Lug

• (6) 6 Leaf Double Eye Springs 25-1/4 Inch Long

• (3) 3 Inch U-Bolt Kits

• (6) Trailer Tire and Wheel Combos

• (1) Triple Axle Hanger Kit (Optional)

Combined axle capacity is 18,000 lbs when properly installed.

Axle Specifications

• Capacity Per Axle: 6000 lbs

• Hub Type: 6 Lug Idler Hubs

• Bolt Pattern: 6 on 5.5

• Brake Type: Idler Hubs No Brakes

• Brake Flange: 5 Bolt Brake Flange Welded on All Axles

• Axle Tube Pre-Wired for Future Brake Installation

• Axle Tube Diameter: 3 Inch

• Axle Tube Wall Thickness: 1/4 Inch

• Stud Size: 1/2 Inch

• EZ Fast Lube Spindles

• Upgraded Aluminum Forged EZ Fast Lube Grease Caps with Rubber Plug

• Packed with High Temperature Grease

• Fully Assembled Ready to Install

• Powder Coated Black Finish

Spring Pad Options

Choose the spring pad option that best fits your trailer build.

Spring Pads Welded On Axles

When spring pads are welded on the axles, the axles will be built in an underslung configuration where the leaf springs mount underneath the axles and the axles sit on top of the springs.

Spring Pads Shipped Loose

Choose loose spring pads if you want maximum flexibility. Loose spring pads allow you to weld the spring seats where needed for either:

• Underslung Configuration

• Overslung Configuration

Custom Spring Pad Placement

We can weld spring pads in a custom location for an additional charge.

If you need spring pads welded in a custom location that is not listed in the available options, click on this link here to specify where you need spring seats welded:

 https://trailerpartsunlimited.com/welding-moving-spring-seats-on-axle-to-requested-area/



Axle Features

• Three Fully Assembled Idler Trailer Axles

• Hubs Installed and Pre-Greased

• Heavy Duty Steel Construction

• 5 Bolt Brake Flanges Welded on All Axles

• Axle Tubes Pre-Wired for Future Brake Installation

• EZ Fast Lube Spindle Design

• Grease Zerk Fittings Built Into The Spindles For Easy Bearing Maintenance

• Rubber Plug Hub Caps Allow Quick Access To The Grease Fittings

• Compatible with Dexter, Lippert, AL-KO, Hayes, Rockwell American, Carter and Most Other Trailer Axle Brands

• Designed for Long Service Life and Dependable Towing

Trailer Tire and Wheel Options

Choose from:

• ST225/75R15 Load Range E 10 Ply Radial Trailer Tires

• ST225/75R15 Load Range G 14 Ply All Steel Trailer Tires

• ST235/80R16 Load Range E 10 Ply Radial Trailer Tires

All trailer tires come professionally mounted on your choice of 6 lug trailer wheels and arrive mounted, balanced, and ready to install.

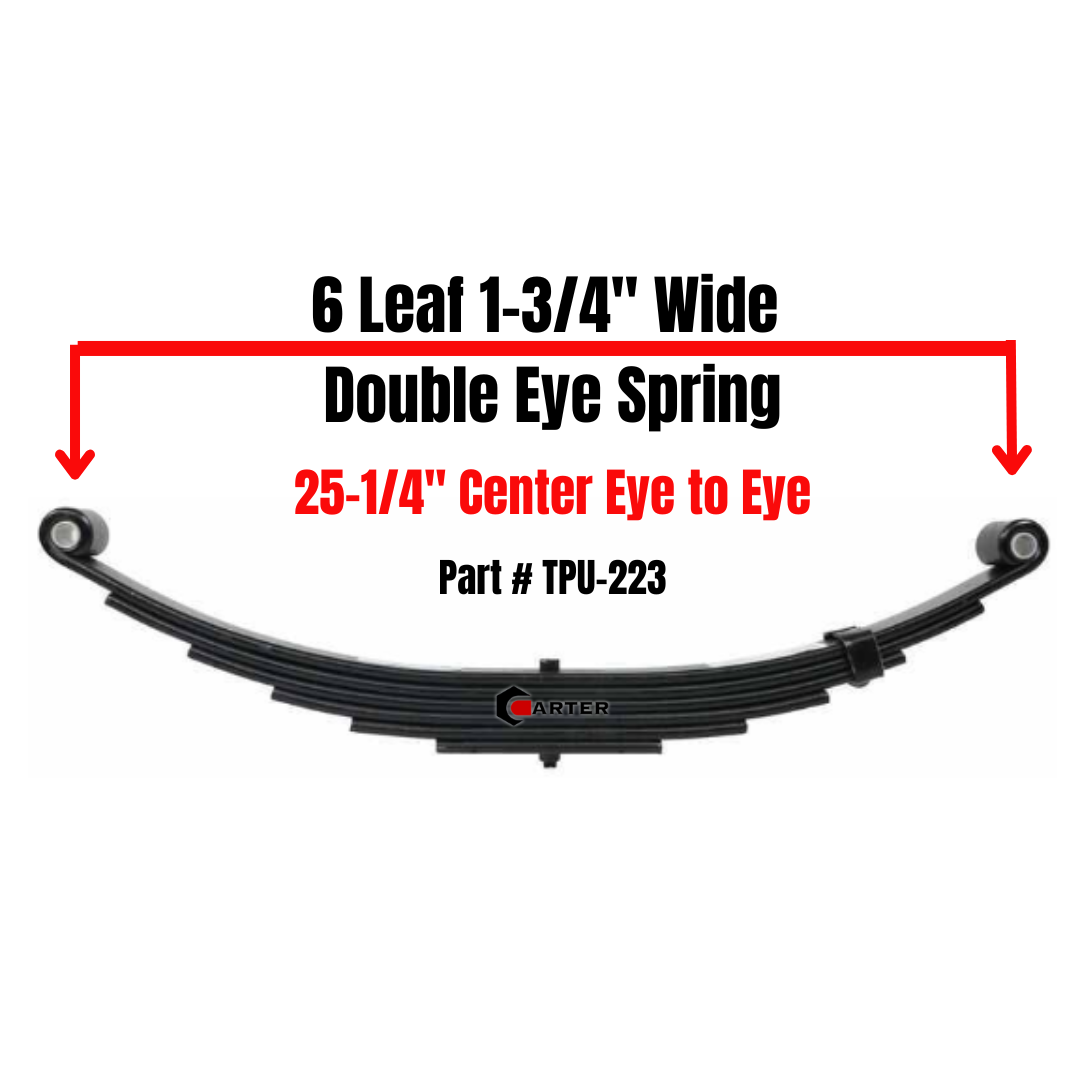

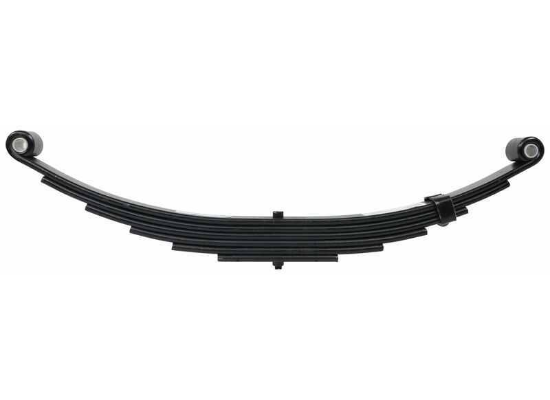

Double Eye Spring Specifications

• Spring Type: Double Eye Leaf Spring

• Capacity Per Spring: 3500 lbs

• Number of Leaves: 6

• Length Eye to Eye: 25-1/4 Inches

• Width: 1-3/4 Inches

• Eye Diameter: 9/16 Inch

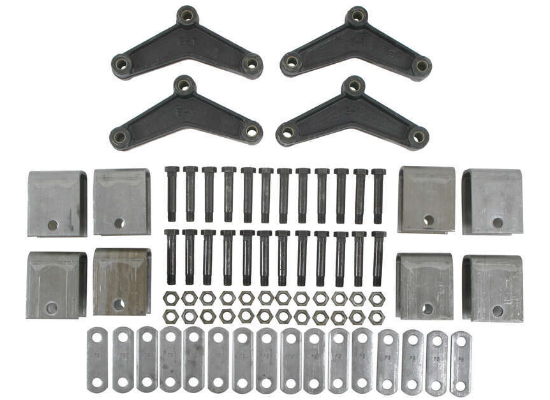

Optional Triple Axle Hanger Kit





Designed for 1-3/4 Inch Wide Double Eye Springs.

Includes all hangers, equalizers, shackle links, spring bolts, lock nuts, and installation hardware required to install a complete triple axle suspension system.

3 Inch U-Bolt Kit Specifications

Each U-Bolt Kit Includes:

• (4) 9/16-18 x 7 Inch U-Bolts

• (8) 9/16-18 U-Bolt Nuts

• (2) Tie Plates for 3 Inch Axle Tubing

One U-Bolt Kit contains all hardware required for one complete axle.

Common Applications

• Equipment Trailers

• Utility Trailers

• Car Haulers

• Flatbed Trailers

• Gooseneck Trailers

• Cargo Trailers

• Enclosed Trailers

• Landscape Trailers

• ATV Trailers

• Motorcycle Trailers

• RV Trailers

• BBQ Pit Trailers

How to Measure Your Trailer Axles

Hub Face Measurement

Measure from the face of one hub where the wheel studs protrude to the face of the hub on the opposite side.

Spring Center Measurement

Measure from the center of one spring seat to the center of the spring seat on the opposite side.

Most trailer axles have approximately 15 inches difference between the Hub Face measurement and the Spring Center measurement, approximately 7-1/2 inches per side.

Shipping Information

This item ships on pallets using a common freight carrier.

To calculate shipping:

1. Add the items to your cart.

2. Click the shopping cart icon.

3. Select Shipping.

4. Enter your zip code and state.

5. Click Calculate.

Shipping charges will be displayed before checkout.

Bulk order discounts and manufacturer pricing are available.
